Configuration
7-16

SHB9300CRV EN 2.0
7.5 Description of cam profile generation
Three methods are available:
l Cam profile import
– The method has already been described as an example in the chapter ’Commissioning’
(see chapter 5.7 Cam profile import)
The cam profile import enables the use of already existing cam data, e.g. from calculation
programs or design data. The ASCII format is supported. The ASCII file must contain X/Y
value pairs. For further information see the on-line help of GDC.
l Mathematical cam profile generation
– The profile is determined by the input of mathematical functions. The basis is the 5th
degree polynomial, the offset sine curve and standstill, which are indicated in the German
regulation VDI 2143.
l Graphical cam profile generation (in preparation)
2
1
3
4
5
6
7
8
9
10
11
kurv_ed

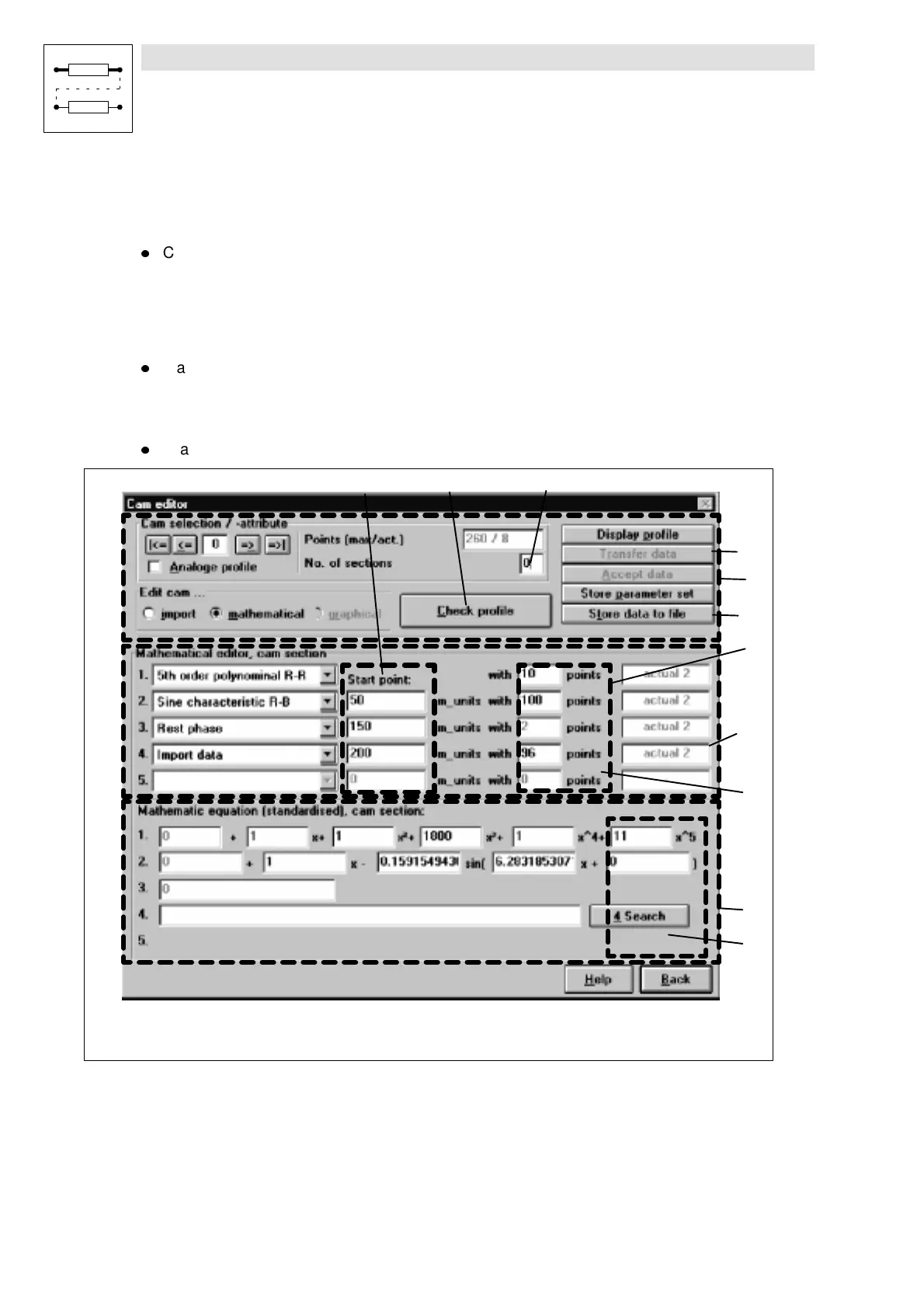

Fig. 7-6 Dialog “Mathematical profile generation”
