Lenze EVS9326-EK

Function block library
7-45

SHB9300CRV EN 2.0
ASW 4-IN1
C 1167/1
1
0
C 1167/2
ASW 4-SET
ASW 4-IN2
ASW 4
ASW 4-O UT
C 1168
C 1165/1
C 1165/2
C 1166

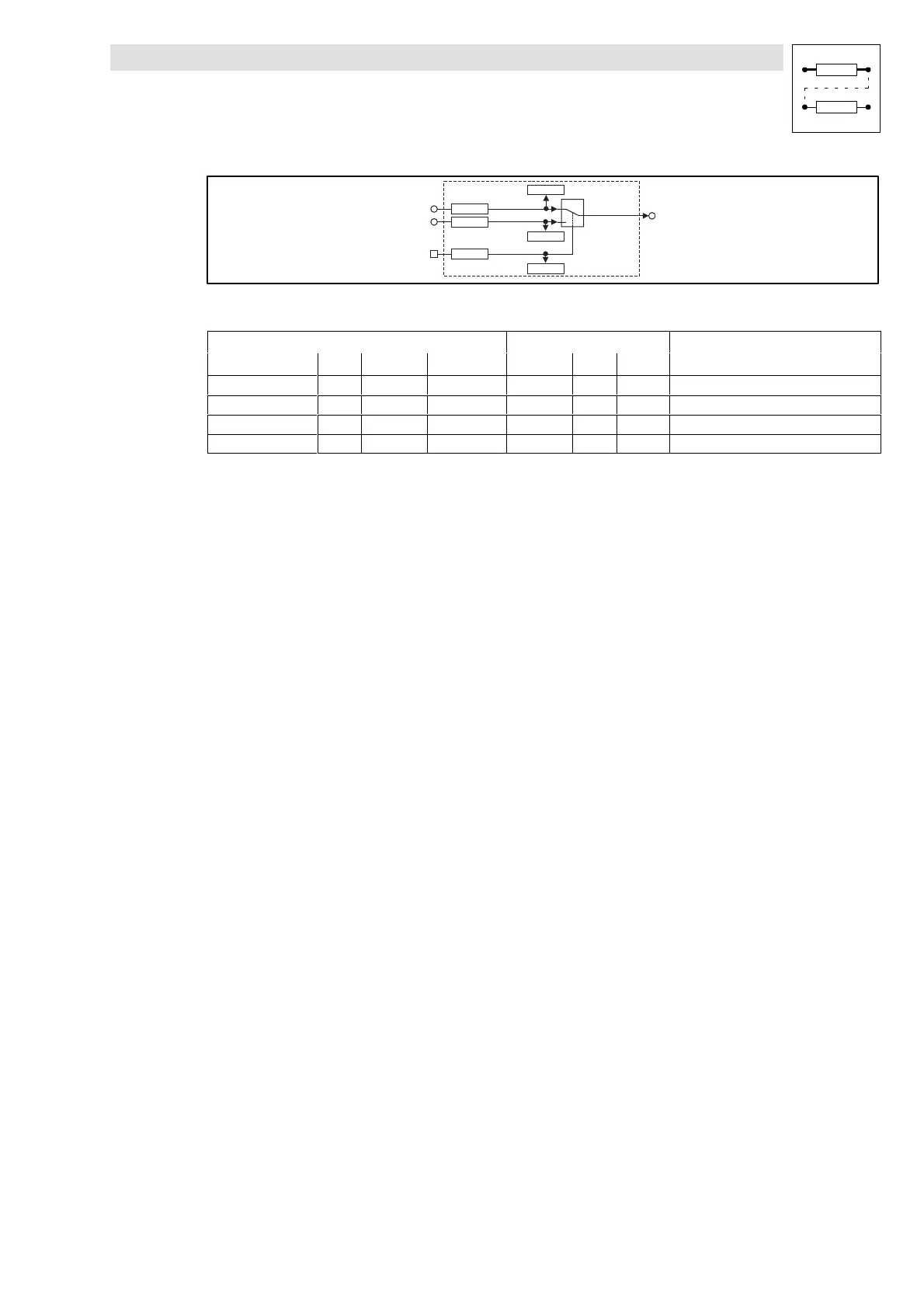

Fig. 7-38 Changeover switch for analog signals (ASW4)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
ASW4-IN2 a C1167/1 dec [%] C1165/1 1 1000 -
ASW4-IN1 a C1167/2 dec [%] C1165/2 1 1000 -
ASW4-SET d C1168 bin C1166 2 1000 -
ASW4-OUT a - - - - - -
