Function block library
7-163

SHB9300CRV EN 2.0
NOT5
1
NOT5-OUT
NOT5-IN
C0849
C0848

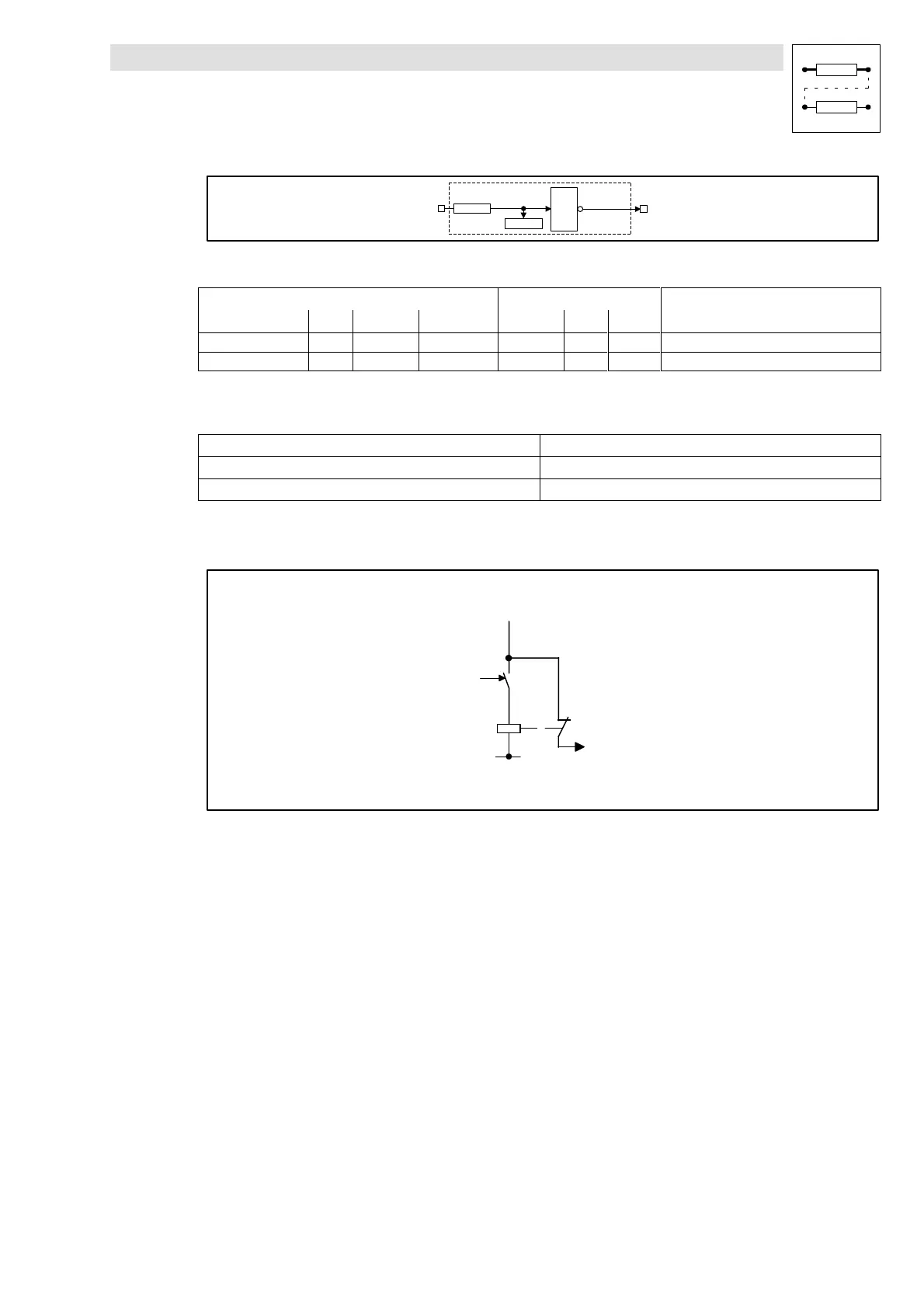

Fig. 7-124 Logic NOT (NOT5)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
NOT5-IN d C0849 bin C0848 2 1000 -
NOT5-OUT d - - - - - -
Function
NOTx-IN1 NOTx-OUT
0 1
1 0
The function corresponds to a change from a normally-open contact to a normally-closed contact
in a control with contactors.
NOTx-IN
NOTx-OUT
Fig. 7-125 Function of NOT as a change from a normally-open to a normally-closed contact
