Function block library
7-238

SHB9300CRV EN 2.0
Interconnection and parameter setting for the function blocks
The implementation the welding bar function requires the function block CDATA with a
correspondingly stored profile. Please select the basic configuration 11XXX. This configuration
includes - among others - the function blocks CDATA, WELD and CCTRL:
l
The cam data in CDATA determine the motion profile (path profile)of the welding bar.
l
The function block WELD controls the welding time
The welding time set in WELD-TIME, the welding bar is held in welding position, independently
of the master speed.
l
The function block CCTRL converts the path information into a rotor position at the motor.

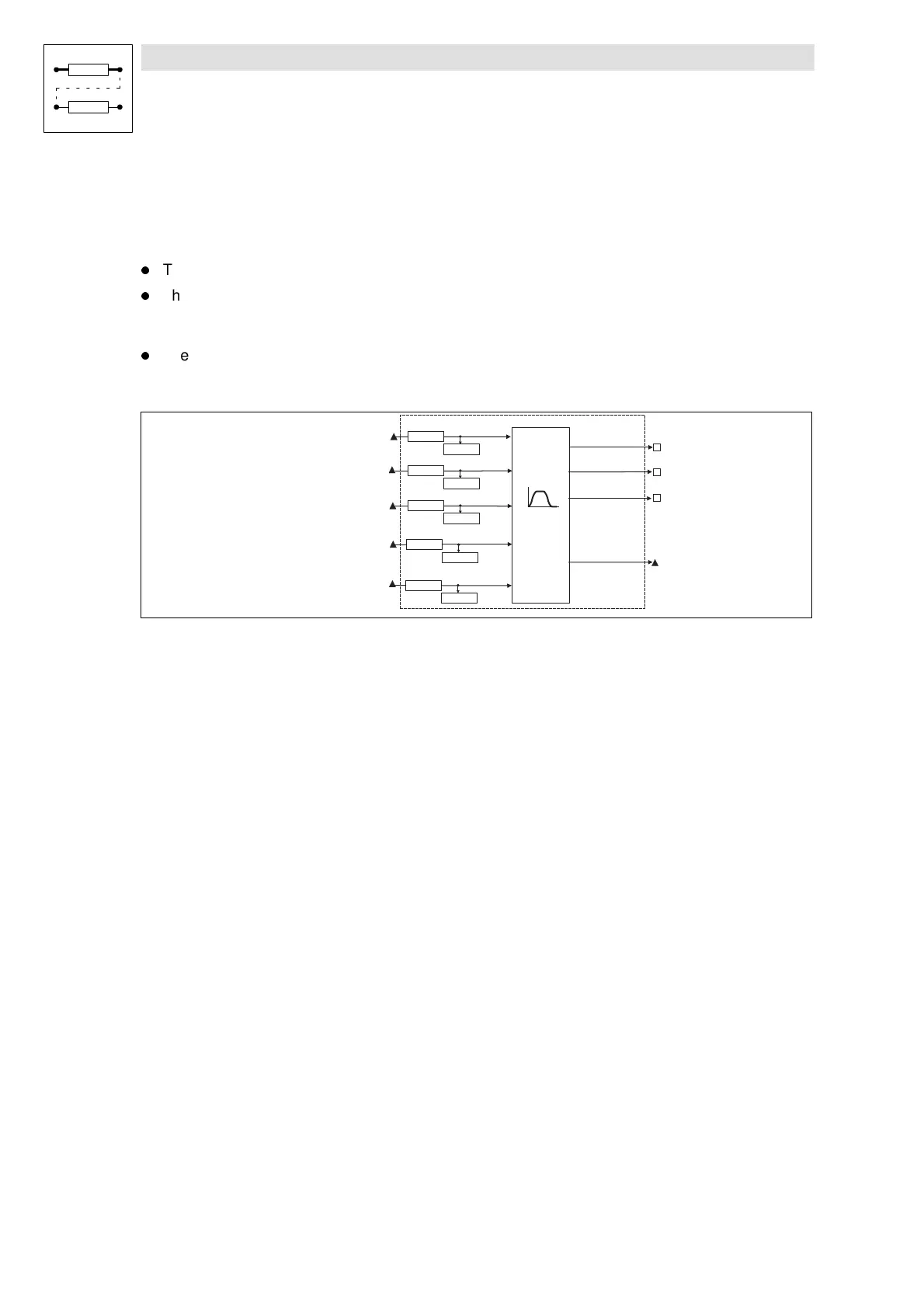

Interconnection of inputs and outputs
WELD1
W E LD 1-T-E R R
W E LD 1-X IN
W E LD 1-X O U T
W E LD 1-LE N -O
W E LD 1-LE N -C
W E LD 1-LE N
W E LD 1-O N
W E LD 1-TIM E
W E LD 1-D IR ER R
C 1444/1
C 1445/1
C 1444/5
C 1444/4
C 1444/2
C 1444/3
C 1445/2
C 1445/3
C 1445/5
C 1445/4
CTRL
Input CDATA-XIN must be selected as master value input for function block CDATA.
