5.3.10 Gearboxes with breathers
 Stop!
Do not place gearbox onto breather valve!
For gearboxes of sizes 03, 04 and 0 5 (exception GSS 05), no ventilation measures are
required.
For gearboxes of sizes 06 to 14 and GSS 05, ventilation units are mounted. However, in
specific cases they may be dispensed with. For gearbox sizes 09 to 14 in mounting
position C we recommend using an oil compensation reservoir ( 52).

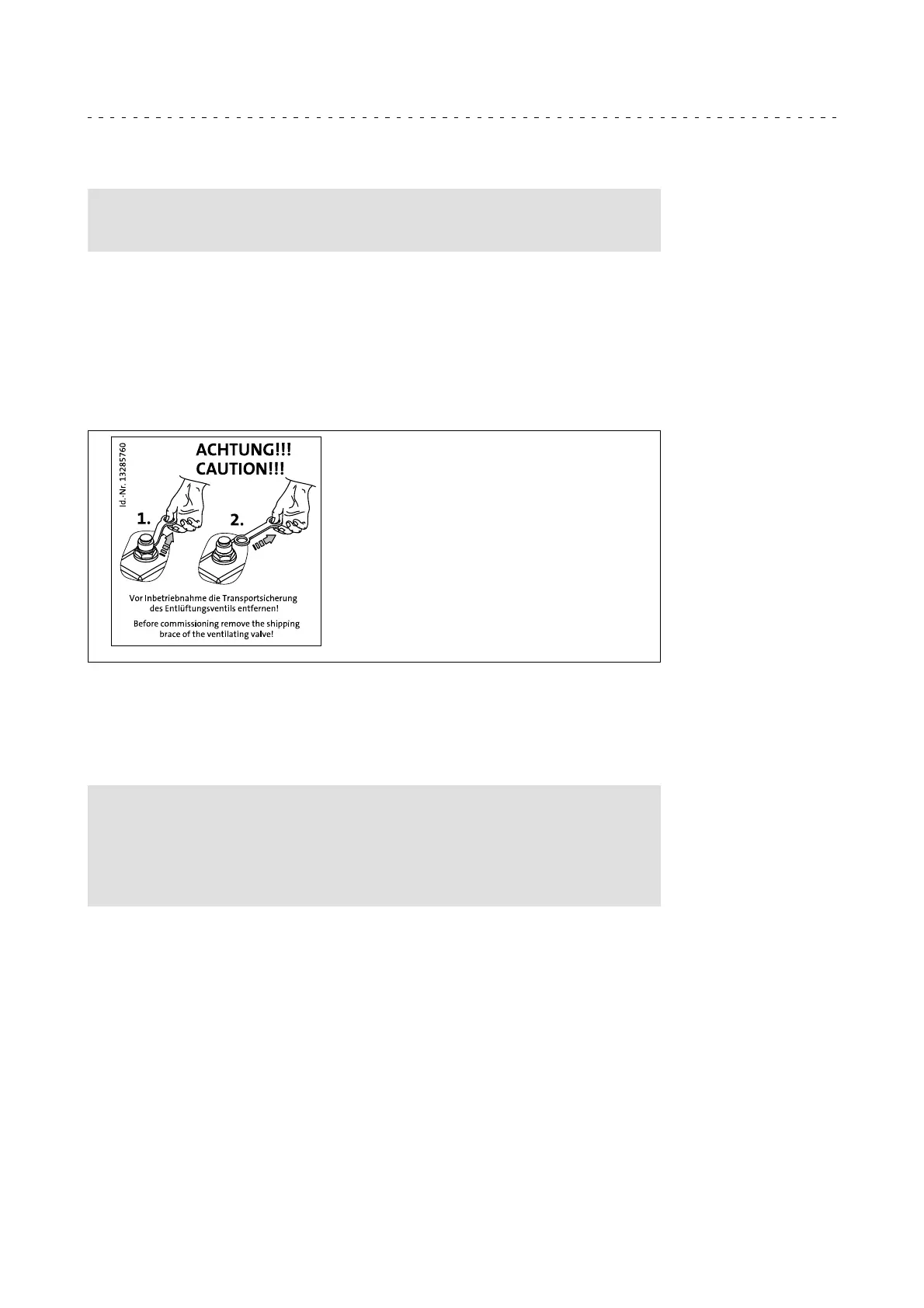

Gearboxes that are delivered with a ventilation unit are provided with a label.
Remove transport locking device on the vent valve.
GT-GNG-13285760.iso/dms
If it deviates from standard mounting positions A - F, the ventilation unit must be
checked with regard to its function. Mount ventilation units that are loosely attached
(deviatingfromthe standard) as specifiedinchapter5.3.11. Gearboxes that aresuitable
for several mounting positions ( 68) are delivered without ventilation units.
Ensure ventilation before initial commissioning!
 Stop!
• Rotate gearbox to the mounting position shown on the nameplate
(( 18)und ( 41).
•WithgearboxtypesGST-3, GFL-3, GSS-3 and GKS-4, the
pre-stage is separately ventilated! (Exception: size 06)
