Mechanical installation
Mounting
Gearbox with compensation container for mounting position C
5
52
Lenze • BA 12.0023 • 9.0
5.3.12 Gearbox with compensation container for mounting position C
GST GFL
GKS
K12.0956

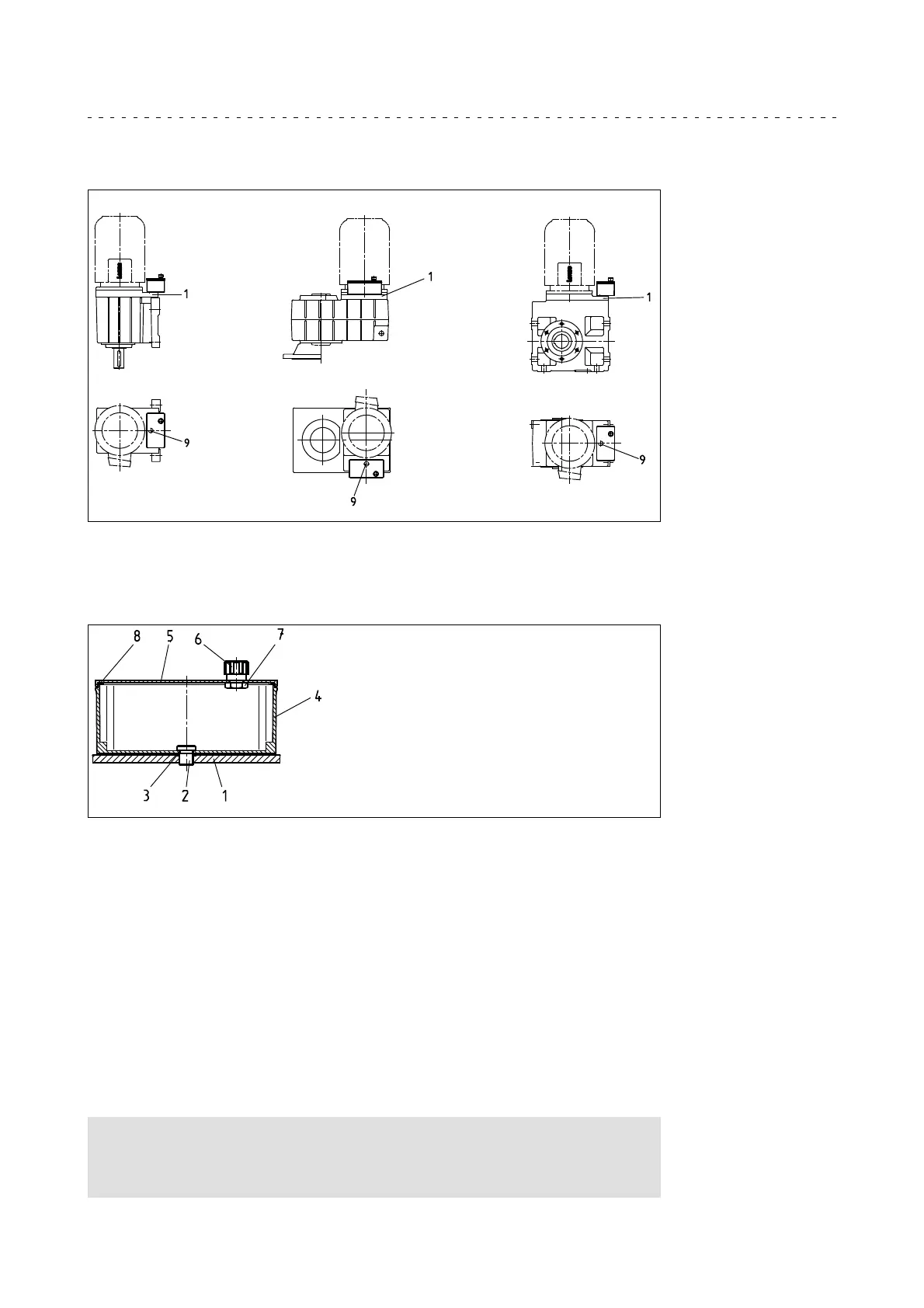

Fig. 11 Positioning of the compensation reservoir in mounting position C
1 Intermediate cover 9 Locking screw
5.3.12.1 Component parts list
K12.0956
Fig. 12 List of details for compensation reservoirs
1 Intermediate cover 4 Housing 7 Hexagon nut
2Fixingscrew 5Cover 8Seal
3 Gaskets 6 Ventilation
Mounting
1. Mount gearbox in mounting position C (motor on top).
2. Remove the plug (9) from the intermediate cover (1).
3. Mount housing (4) using seal (3) and fixing screw (2) to intermediate cover (1)
(instead of the plug (9)).
4. Use hexagon nut (7) to bolt the breather element (6) to the cover (5).
5. Mount cover (5) and seal (8) to the housing (4).
 Stop!
For transport the compensation reservoir must be removed and the plug
must seal the gearbox (pos. 9).
