Mechanical installation
Transport equipment for gearboxes
5
25
Lenze • BA 12.0023 • 9.0
5 Mechanical installation
Danger!
Only transport the drive with transport equipment or hoists which are
suitable for this load ( 23). Ensure a safe fixing. Avoid shocks!
The motors attached to the gearbox are partially equipped with e yebolts.
These are exclusively determined for motor/gearbox mounting and
dismounting and must not be used for the complete geared motor!
5.1 Transport equipment for gearboxes
As of size 05, Lenze GST, GKS and GSS gearboxes are as standard available with a
transport thread for eye bolts according to DIN 580. The thread position can be seen
from the below figures. The eye bolts are not contained in the delivery package.

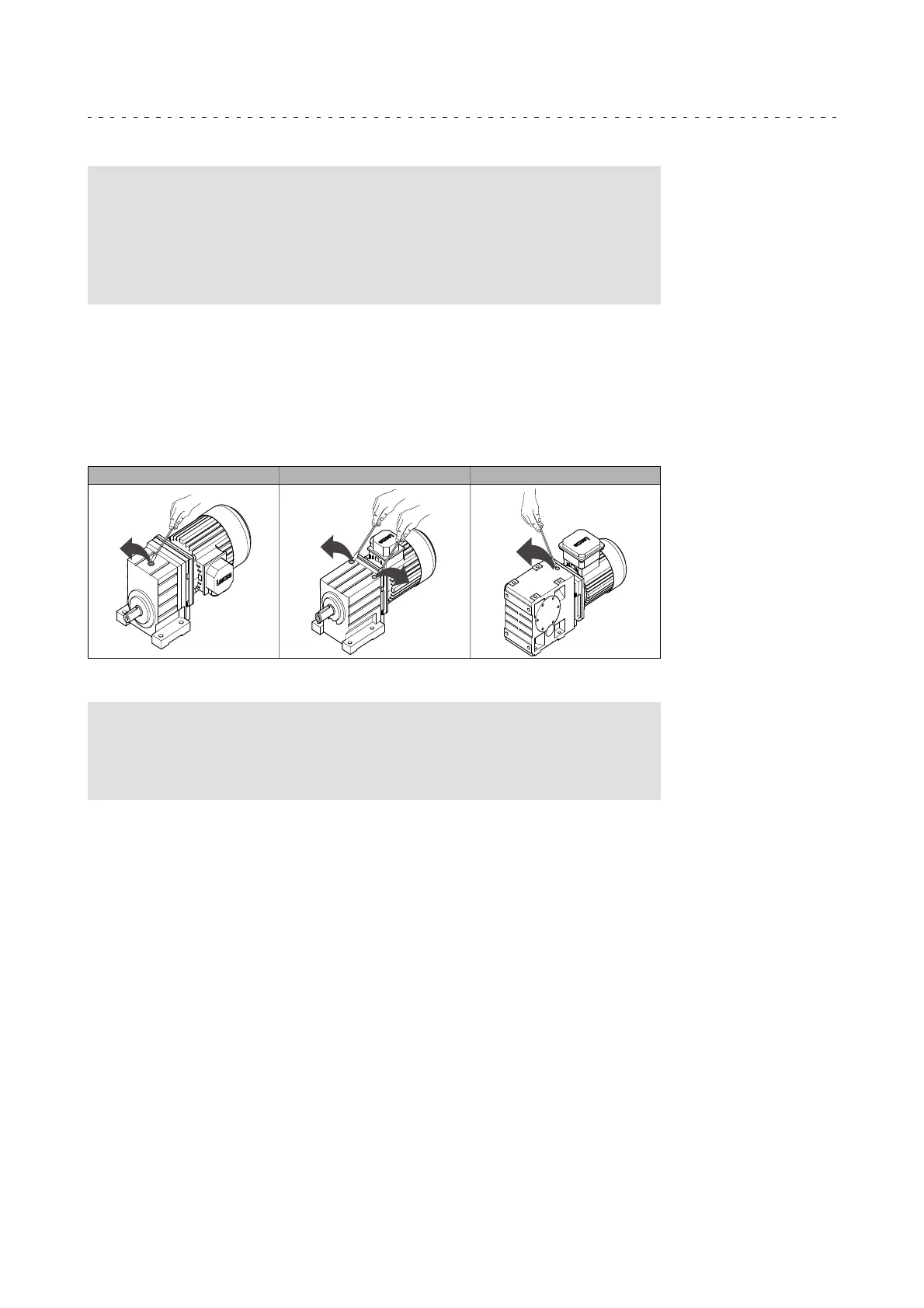

GST-1 GST-2/3 GSS-2/3 and GKS-3/4
Fig. 1 Eye bolt position
Note!
As standard, threads are delivered with plug screws. The plug can be
easily removed, e.g. by using a screwdriver blade. For the thread size and
load carrying capacity of the eye bolt, please see Tab. 2.
