System components
Command Station

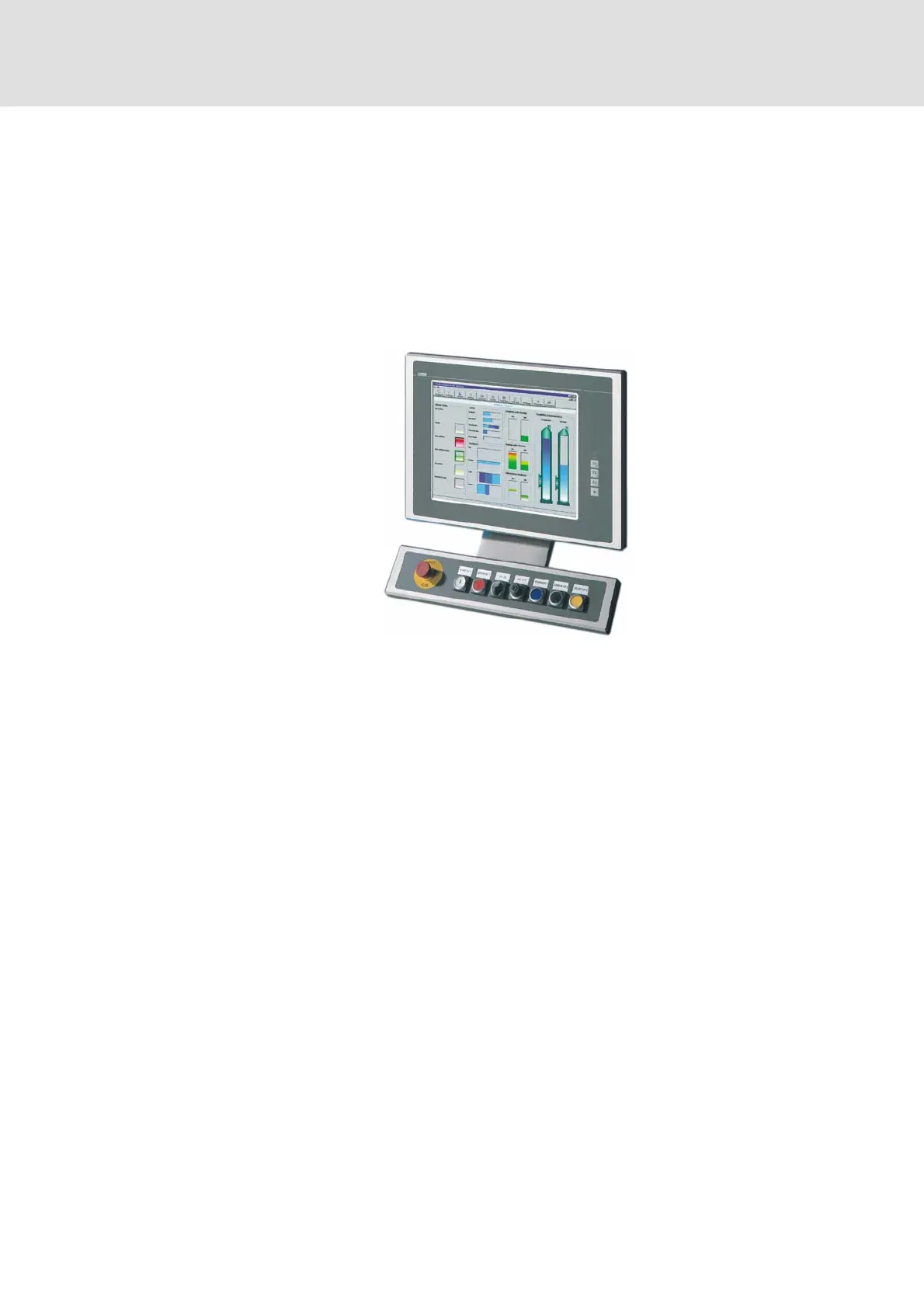

Command Station (CS) is a stand-alone operator station (IP65) which is totally protected
against dust and water spray incursion. The flat enclosure is fitted with a mounting frame
at the rear edge which is intended for support arm mounting or direct fixing to the wall. To
allow the flexible implementation of individual operator concepts, the system offers nu-
merous options and add-on operator consoles as for example:
– Touch screens,
– functional and alphanumeric keyboards,,
– Operator consoles with switching elements.
Features of the supported device series CS 5800 ... CS 9800
Display
– Display size 15.0-19.0 inches
– Different front/keyboard variants
Mounting
– Stand-alone, completely enclosed (IP65)
– Flexible support arm mounting
Interfaces:
– Ethernet on-board
– Option: 2 x CAN (example: one Logic bus line and one Motion bus line)
– Option: EtherCAT
– Option: PROFIBUS
