Control technology| System manual
System description
System components
22 L DMS 1.3 EN - 02/2011

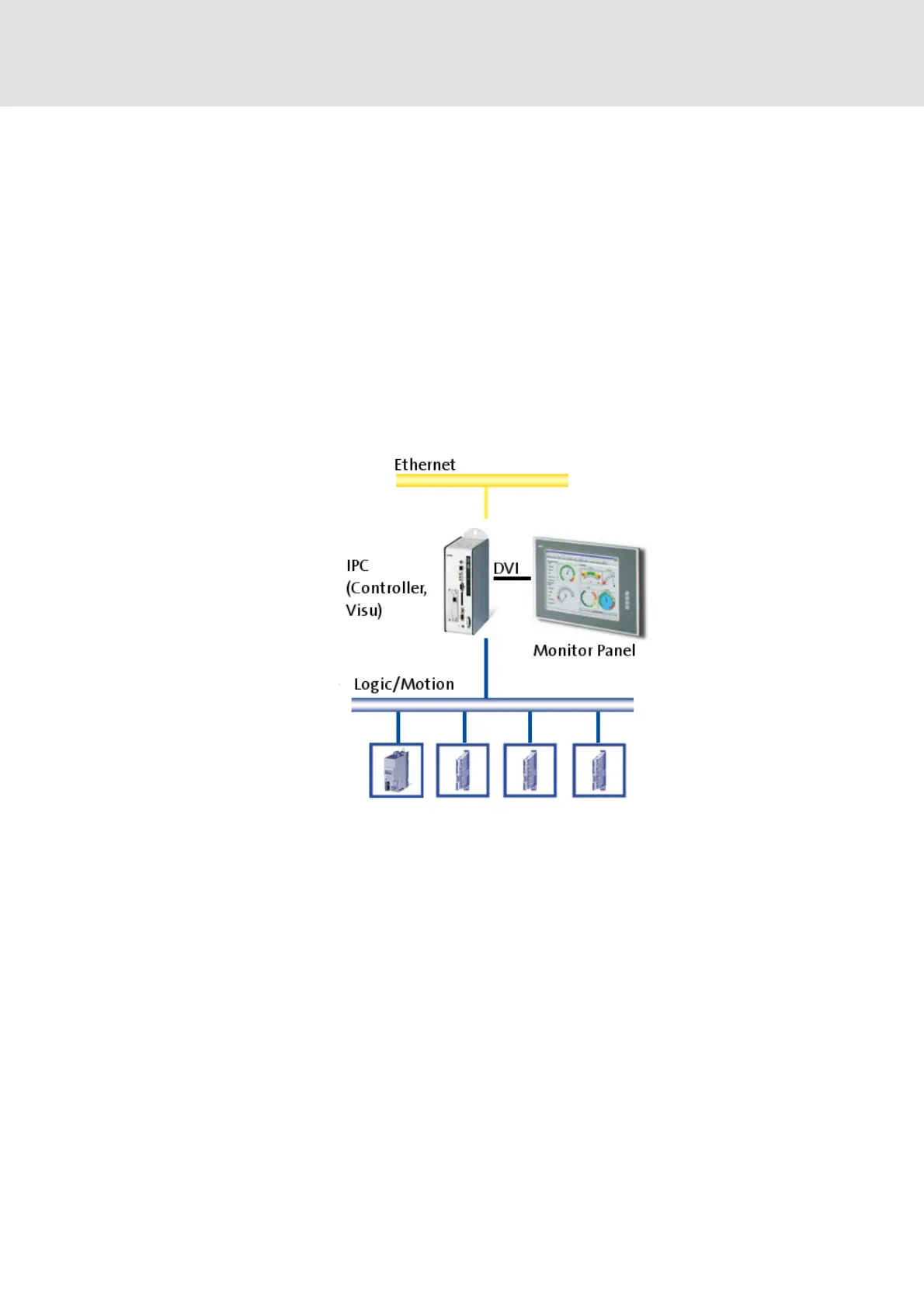

External monitor panel
This solutions corresponds to the integrated solution with regard to its performance. The
only difference is that the control and visualisation application are calculated on a PC wit-
hout integrated display (control cabinet PC). It is displayed on an external monitor panel.
This solution offers advantages with regard to cabling, operating conditions, and accessi-
bility.
Properties:
– Visualisation has access to variables of the control and parameters of the field de-
vices
– No impact on the real-time capability of the bus by the visualisation
– Use of any external monitor (for example: monitor panel in Command Station de-
sign) is possible.
