Lenze p300 - Installation steps

8
M5_Anschl_Schnittstelle−Stromaufnahme_p300_Tab
Lenze ¯ MA_p300 ¯ 7.0

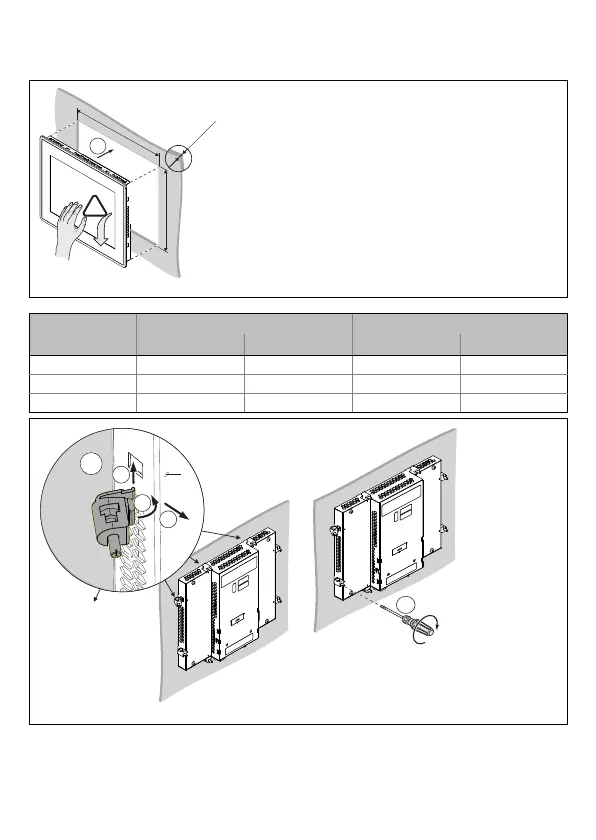

Montageschritte
Installation steps
1.
!
m
n
£ 5 mm
p500_006
p300
mm (inch)
Ý [kg]
m n
Standard PROFINET
10.9 cm (4.3") 119 (4.69") 94 (3.70") 0.5 0.7
17.8 cm (7.0") 194 (7.64") 139 (5.47") 1.0 1.2
26.4 cm (10.4") 266 (10.47") 224 (8.82") 2.0 2.2
2.
a
b
c
x
p300:
10.9 cm (4.3") = 4 x
17.8 cm (7.0") = 4 x
26.4 cm (10.4") = 8 x
p300:
10.9 cm (4.3") = 10 Ncm (0.9 lb-in); 4 x
17.8 cm (7.0") = 20 Ncm (1.7 lb-in); 4 x
26.4 cm (10.4") = 20 Ncm (1.7 lb-in); 8 x
3.
max.
p300_007 p300_008
x Schraubspanner−Positionierhilfe
x Positioning aid for screw clamps
