Analog Output
Even with the advent of digital control standards, many portable lighting systems use analog
control lines between the console and the dimmer racks. The LP600 provides 0-10 volt analog
outputs, using Cinch-Jones connectors. The pin connection of these connectors is identical to that
used on many other Leprecon products.
Connector Pin Assignments : LP612 ONLY
The analog version of the LP612 uses two panel mount male Cinch-Jones 8 pin connectors for
control output. The pin connections are as follows:

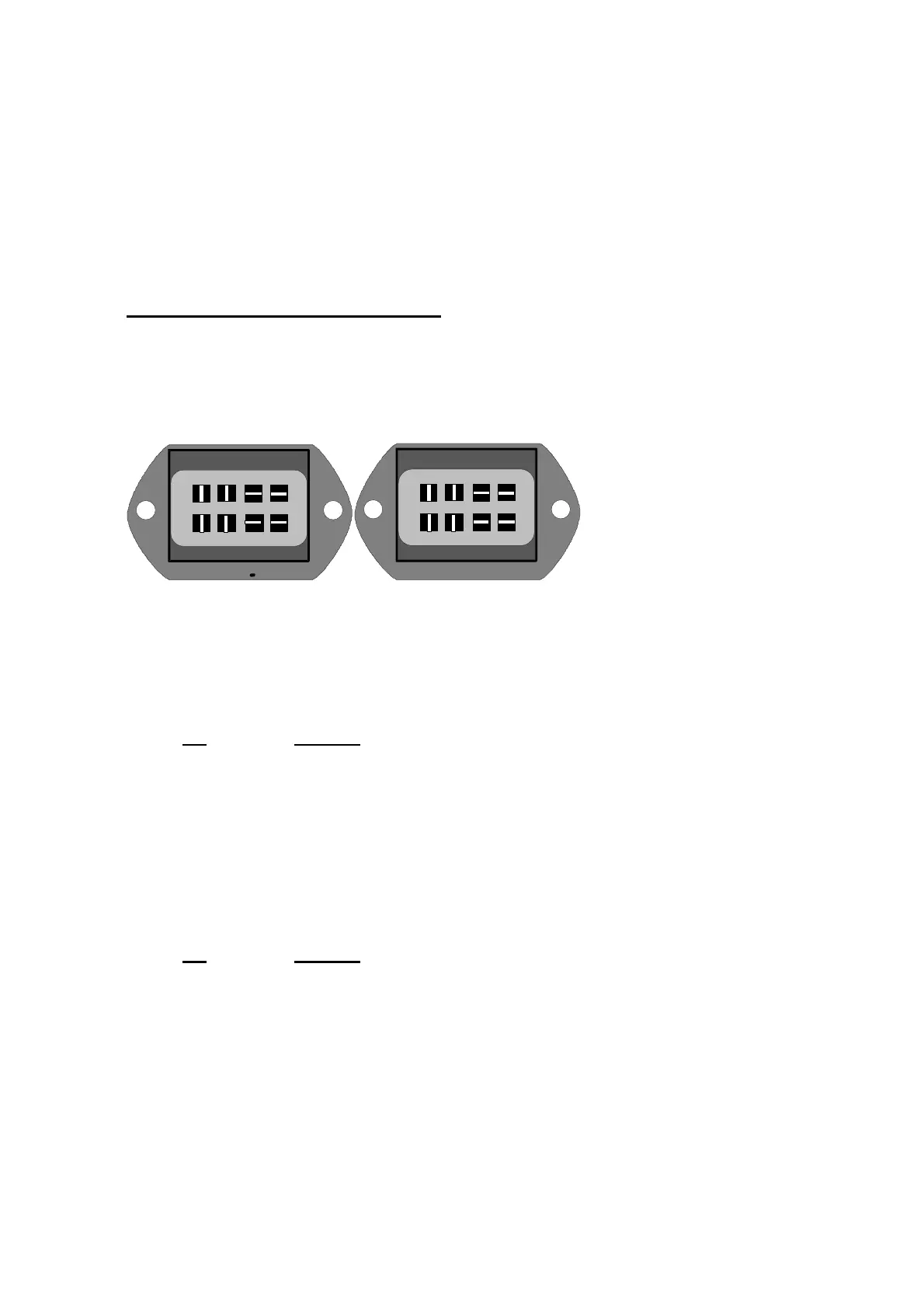

1 2
1
8
1
8
Connector 1
Pin Function
1 Channel 1
2 Channel 2
3 Channel 3
4 Channel 4
5 Channel 5
6 Channel 6
7 No connect
8 Common
Connector 2
Pin Function
1 Channel 7
2 Channel 8
3 Channel 9
4 Channel 10
5 Channel 11
6 Channel 12
7 No connect
8 Common
