Connector Pin Assignments : LP624 ONLY

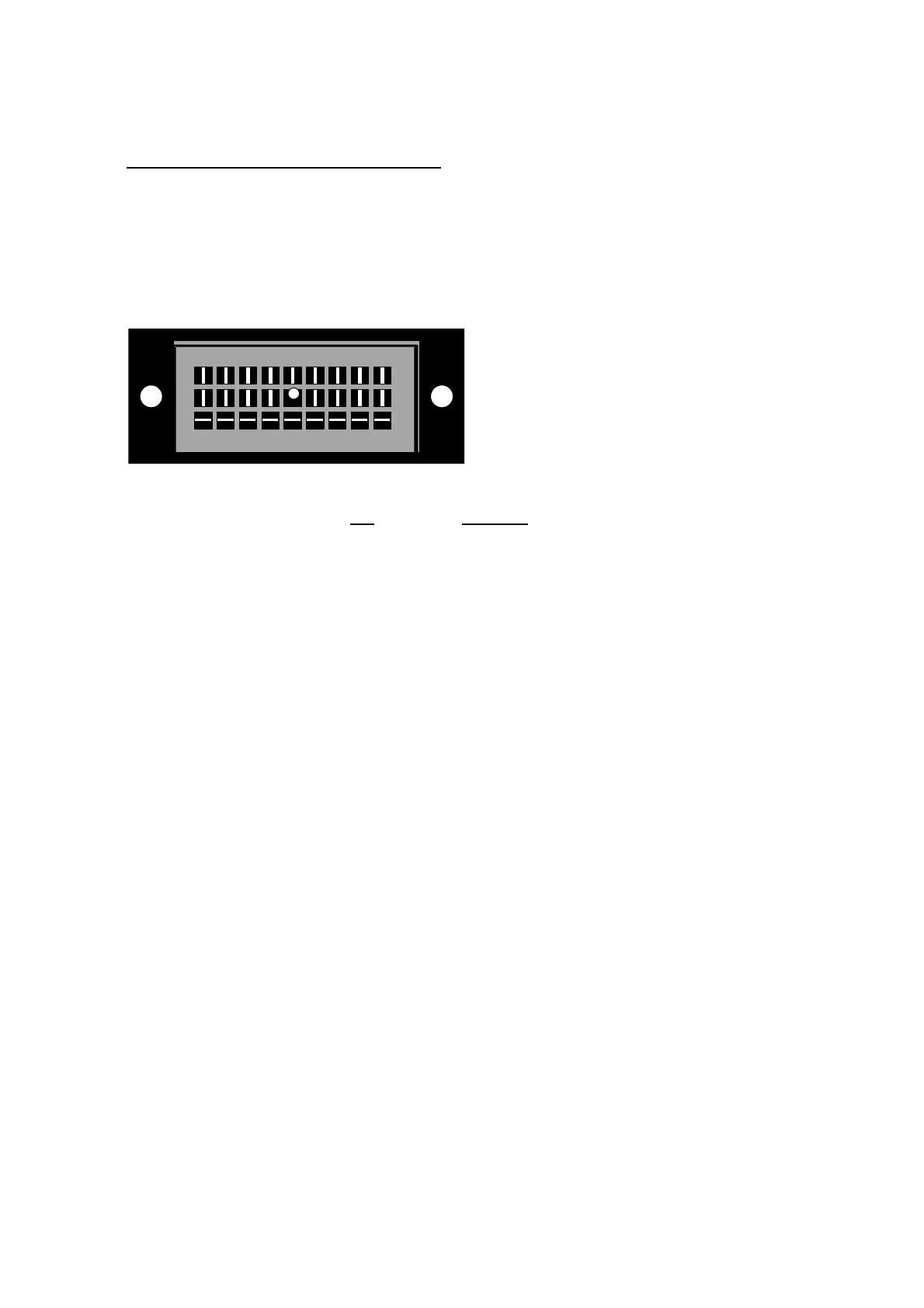

The analog version of the LP624 uses one panel mount male Cinch-Jones 27 pin connector for
control output. The pin connections are as follows:
1
27
Pin Function
1-24 Channel 1-24
25 No connection
26,27 Common
