Operating Instructions 2 01537C
CAUTION: USE ONLY ON CIRCUITS
PROVIDED WITH A MAXIMUM OF 20 AMP (15
AMP IN CANADA) BRANCH CIRCUIT
PROTECTION IN ACCORDANCE WITH THE
NATIONAL ELECTRICAL CODE ANSI/NFPA 70
AND ALL LOCAL CODES AND ORDINANCES.
IMPROPER CIRCUIT PROTECTION MAY RESULT
IN A FIRE.
The use of an extension cord with the charger
should be avoided. The use of an improper
extension cord could result in a risk of a fire or
electric shock. If an extension cord must be used,
use a three-conductor, No. 14 AWG cord with
ground, properly wired, in good electrical condition
and keep it as short as possible. Make sure that the
pins on the plug of the extension cord are the same
number, size, and shape as that of the plug on the
battery charger. Locate all cords so that they will not
be stepped on, tripped over, or otherwise subjected
to damage or stress.
Do not operate this charger if it has received a sharp
blow, was dropped, or otherwise damaged in any
manner; refer to a qualified service agent.
Provide adequate ventilation for the batteries and
charger. The convection-cooled design requires an
unobstructed flow of cooling air for proper operation.
Keep all charger ventilation openings at least two
inches (2") (5cm) away from walls and other objects.
Do not allow clothing, blankets, or other material to
cover the charger.
WARNING: CHARGERS CAN IGNITE
FLAMMABLE MATERIALS AND VAPORS. DO
NOT USE NEAR FUELS, GRAIN DUST,
SOLVENTS, OR OTHER FLAMMABLES.
WARNING: TO REDUCE THE RISK OF
ELECTRIC SHOCK, KEEP THE CHARGER DRY.
DO NOT EXPOSE IT TO RAIN, POWER WASH
DETERGENTS OR SPRAY. FOR STORAGE,
KEEP THE CHARGER IN A BUILDING.
ATTENTION: Ne pas exposer a la pluie.
GROUNDING INSTRUCTIONS
This battery charger must be grounded to reduce the
risk of electric shock. This charger is equipped with
an electric cord having an equipment-grounding
conductor and a grounding type plug. This plug
must be connected to an appropriate receptacle that
is properly installed and grounded in accordance
with the National Electrical Code and all local codes
and ordinances.
WARNING: IMPROPER CONNECTION OF
THE EQUIPMENT-GROUNDING CONDUCTOR
CAN RESULT IN RISK OF AN ELECTRIC SHOCK.
The conductor with insulation having an outer
surface that is green, with or without yellow stripe(s),
is the equipment-grounding conductor. If repair or
replacement of the electric cord or plug is necessary,
do not connect the equipment-grounding connector
to a live terminal. Refer to a qualified service agent.

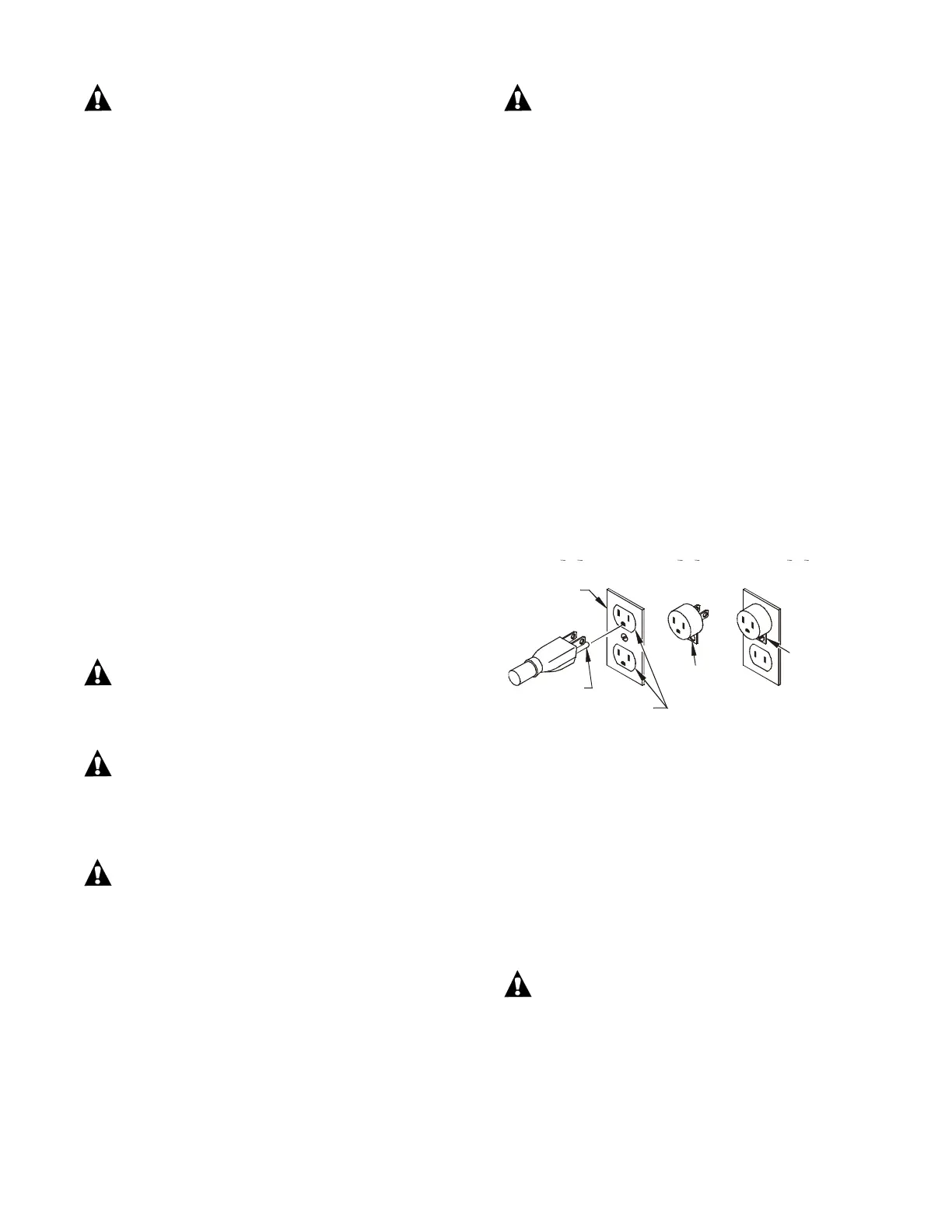

Battery chargers equipped with a grounding plug as
illustrated in Figure A are for use on a nominal 120
Volt circuit. A temporary adapter, as illustrated in
Figures B and C may be used to connect this plug to
a two-pole receptacle as shown in Figure C if a
properly grounded outlet is not available. The
temporary adapter should be used only until a
properly grounded outlet can be installed by a
qualified electrician. The green-colored rigid ear or
lug extending from the adapter must be connected
to a permanent ground such as a properly grounded
outlet box. Make sure that the charger is connected
to a receptacle having the same configuration as the
plug.
GROUNDING METHODS
COVER OF
GROUNDING
BLADE
GROUNDED
OUTLET
NOTE: The use of the adapter shown in Figures B
and C is not permitted in Canada.
If a grounding type receptacle is not available, do
not use this charger until the proper outlet is
installed by a qualified electrician.
NORMAL OPERATION
The instructions printed on the charger are for daily
reference.
OUTPUT POLARITY: WHITE, RED "+" POS.
BLACK "-" NEG.
CAUTION: USE CHARGER ONLY FOR
CHARGING 48 VOLT, 24 CELL, SERIES
CONNECTED WET LEAD-ACID SYSTEM WITH A
CAPACITY OF 140 TO 270 AMPERE-HOURS (20
HR. RATE). OTHER TYPES OF BATTERIES MAY
BURST CAUSING PERSONAL INJURY AND
DAMAGE.
