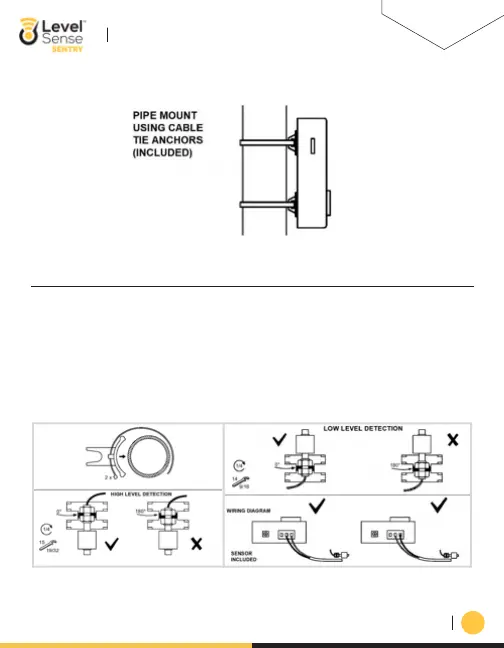

iii. Cable Tie Mount: The two sticky pad anchors and zip ties can be used to mount the head unit.
2. Installing Float Sensor:
The float sensor mounts above the normal pump water line and detects when the water level has
reached a point above normal operating range.
The float sensor installs on the sump pump discharge pipe. Using the provided plastic float bracket
and two zip ties, securely mount the float to the discharge pipe. The sliding float portion of the
sensor should face down. Mount the float approximately six (6) inches above the sump pump
normal water line. This level can usually be found by looking at the side walls of the pit to visually
see the high-water mark roughly level with the top of the pump. The wires from the float sensor
connect to the far right two terminals on the Level Sense Sentry.
