3. Hardware Setup

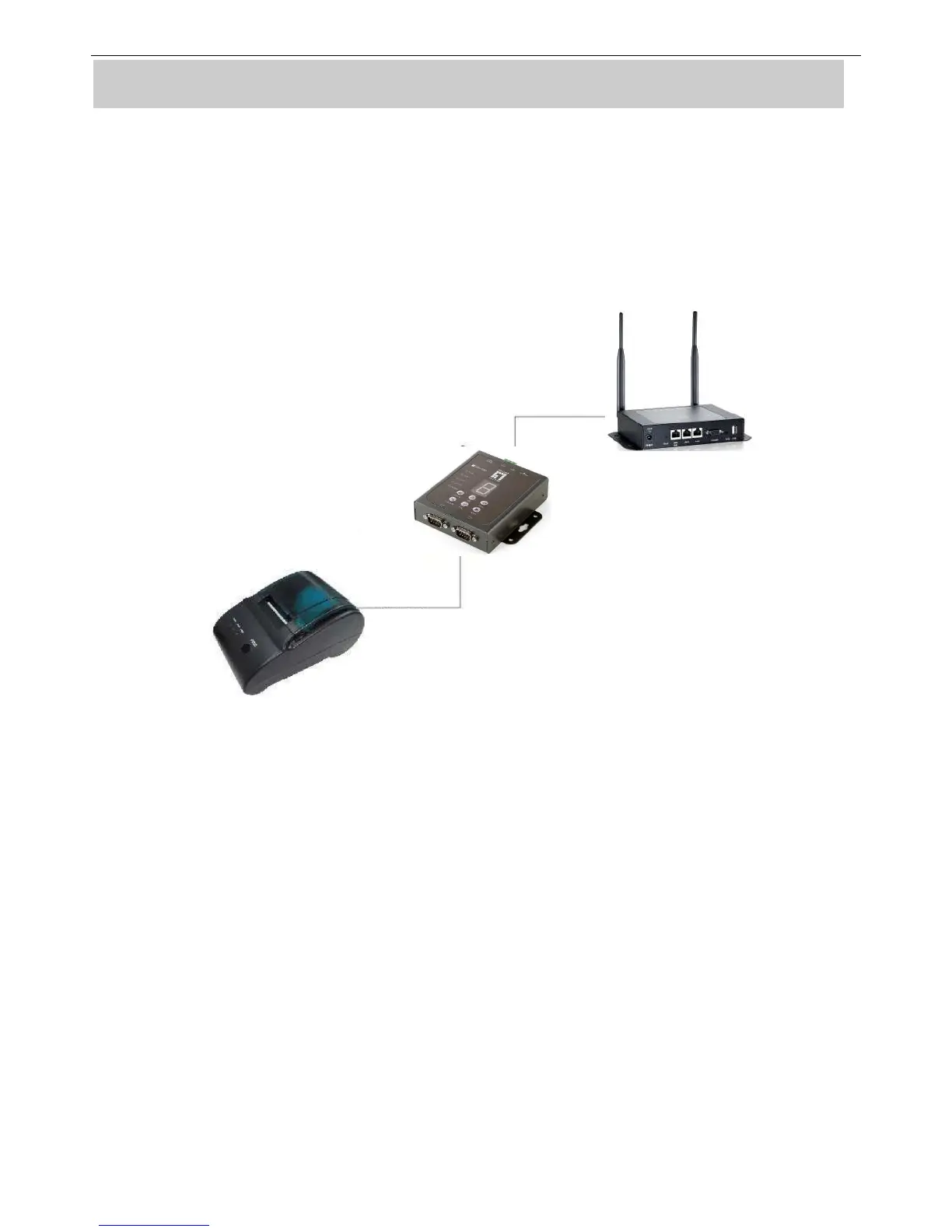

The following diagram illustrates how to connect DSA-1000 to the Thermal Printer and Gate-
ways/Controllers. Please follow the steps described below to install hardware:
1. Attach DSA-1000 to a power source, either through adaptors provided in the package or through DC
socket with a DC power supply.
2. Attach Thermal Printer to a power source, through adaptors provided in the package and turn on the
power switch situated on the left side of the device.
3. Connect Thermal Printer to the COM1 port of DSA-1000 by a RS-232 cable provided within Thermal
Printer package.
4. Connect DSA-1000 to the LAN port of your Gateway/Controller by an Ethernet cable. Note: You need to
connect to the correct LAN port if your Gateway/Controller is operating in Port-based mode.
5. To verify that the system is up and running, enter the WMI of your Gateway/Controller and ping DSA-
1000 (192.168.1.10). You should see replies from DSA-1000 as shown below, this means that the de-
vices are setup and working properly.
