Extension I/O Terminal Block
The Network Camera provides an extension I/O terminal block which is used to connect
external input/output devices. The pin definitions are listed as below.

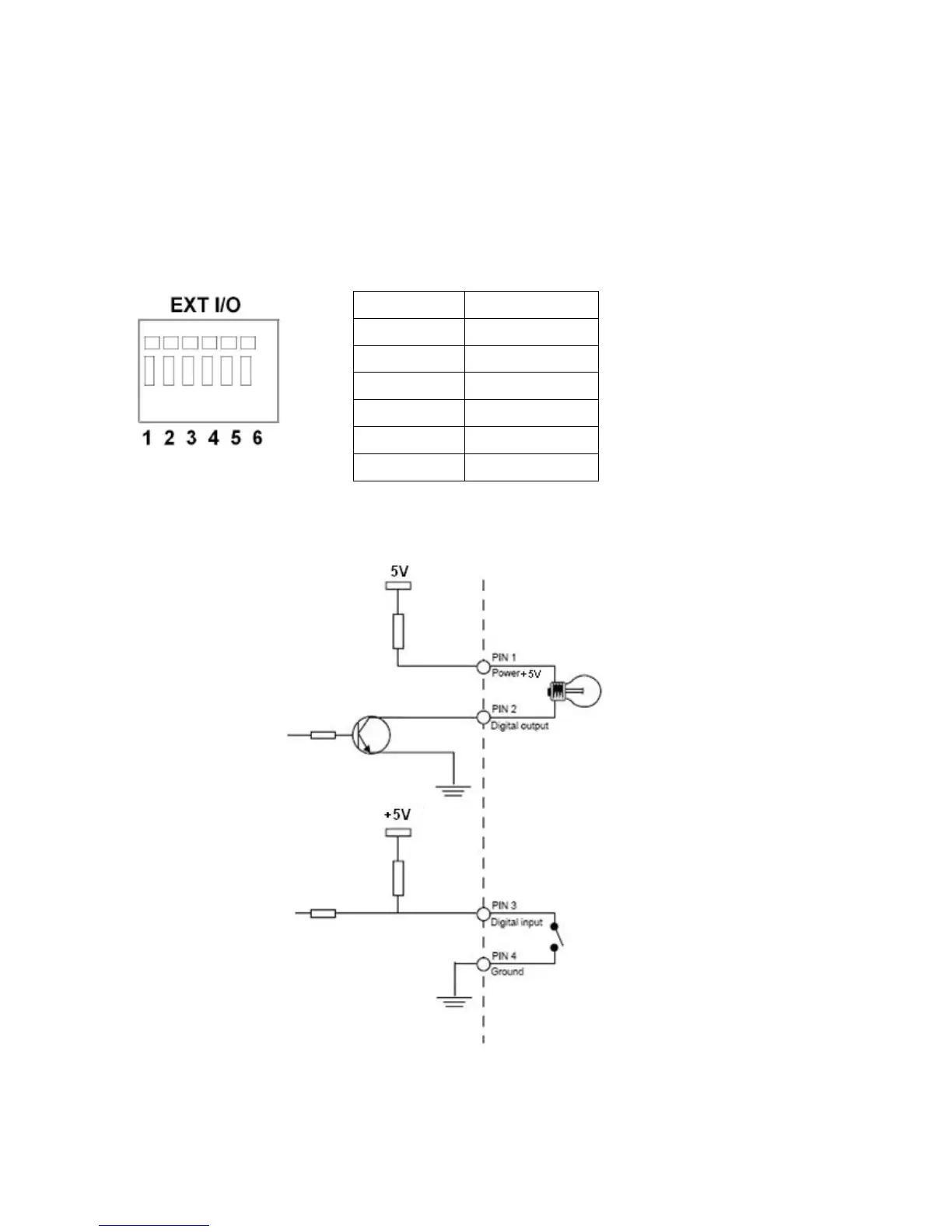

DI/DO Diagram
Pin
Function
1
Power +5V
2
Digital Output
3
Digital Input
4
Ground
5
RS-485 +
6
RS-485 -
