LevelOne FCS-3053 - Other Adjustments and Accessories; How to Adjust the Viewing Angle and Focus; Fcs-3053; Fcs-3063

Hardware Manual
15
Other Adjustments and Accessories
How to Adjust the Viewing Angle and Focus
This section describes the procedures in adjusting the viewing angle and focus of the camera.
FCS-3053 / FCS-3063

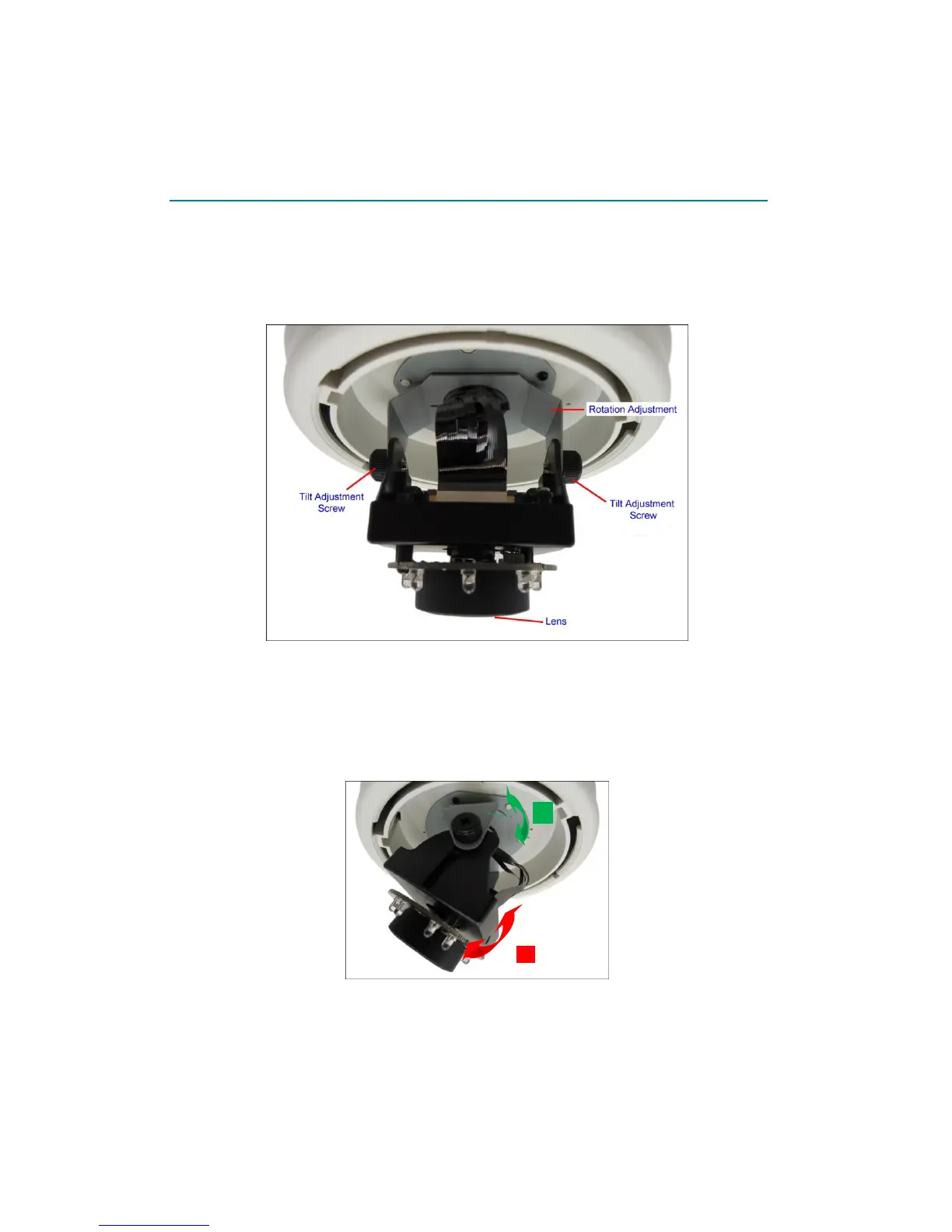

Camera Parts Overview
Adjustment Procedures
1. Loosen the tilt adjustment screws, adjust the tilt, and then tighten back the screws to fix the
tilt position.
2. Move the rotation adjustment to rotate the viewing orientation.
3. Attach the bundled lens focus tuner unto the lens and turn left or right to adjust the focus.
1
2
