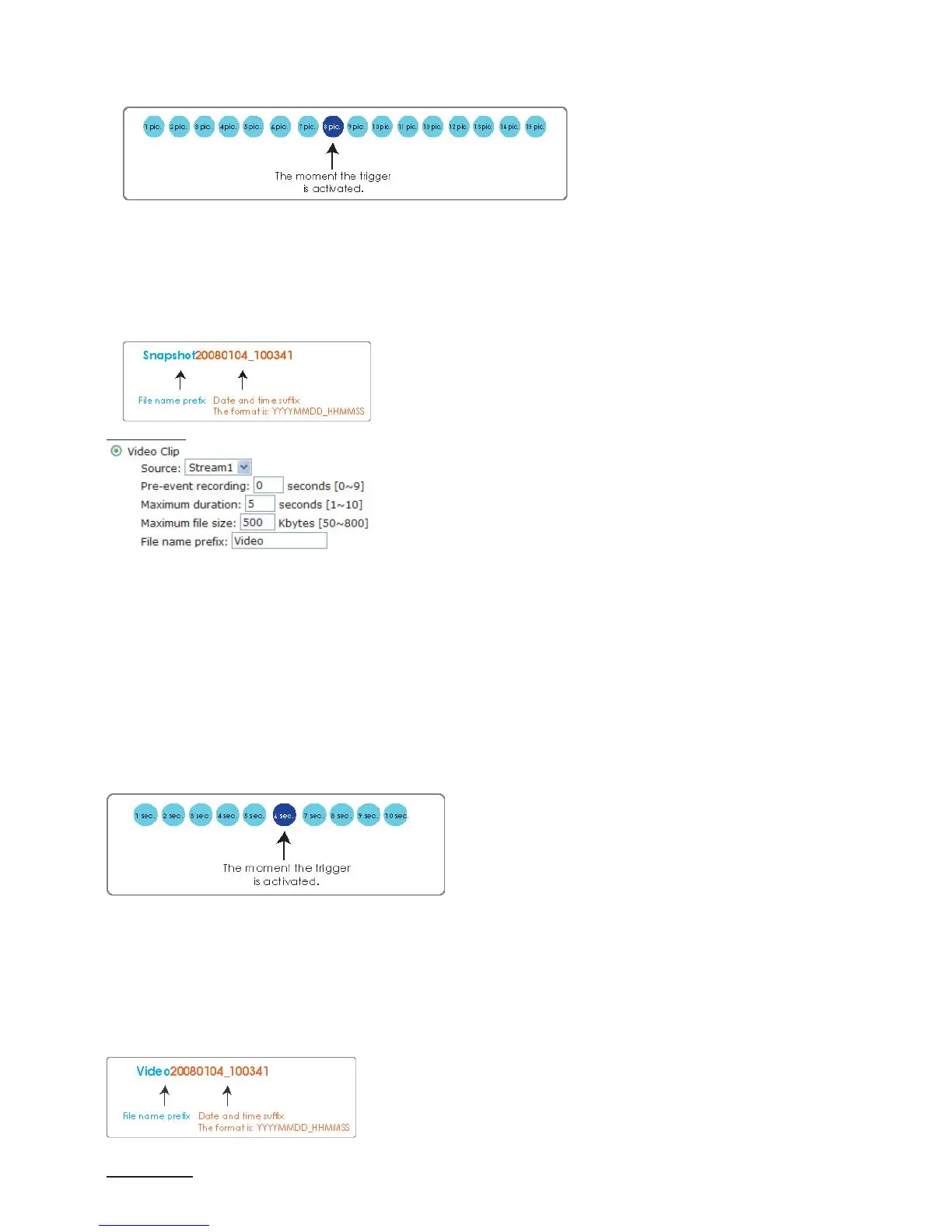

For example, if both the Send pre-event images and Send post-event images are set to
seven, a total of fifteen images are generated after a trigger is activated.
■ File Name Prefix
Enter the text that will be put in front of the file name.
■ Add date and time suffix to the file name
Select this option to add date and time to the file name suffix.
For example:
Video Clip: Select to send video clips when a trigger is activated.
■ Source: Select to record video clips from stream 1 or stream 2.
■ Pre-event recording
The Network Camera has a buffer area; it temporarily holds data up to a certain limit. Specify
to record video clips for how many seconds before a trigger is activated. Up to nine seconds
can be set.
■ Maximum duration
Specify the maximal recording duration in seconds. Up to ten seconds can be set.
For example, if the Pre-event recording is set to five seconds and the Maximum duration is
set to ten seconds, the Network Camera continues to record for another four seconds after a
trigger is activated.
■ Maximum file size
Specify the maximal file size allowed.
■ File Name Prefix
Enter the text that will be put in front of the file name.
For example:
System log: Select to send a system log when a trigger is activated.
When completed, click Save to take effect and then click Close to quit this page. The new
