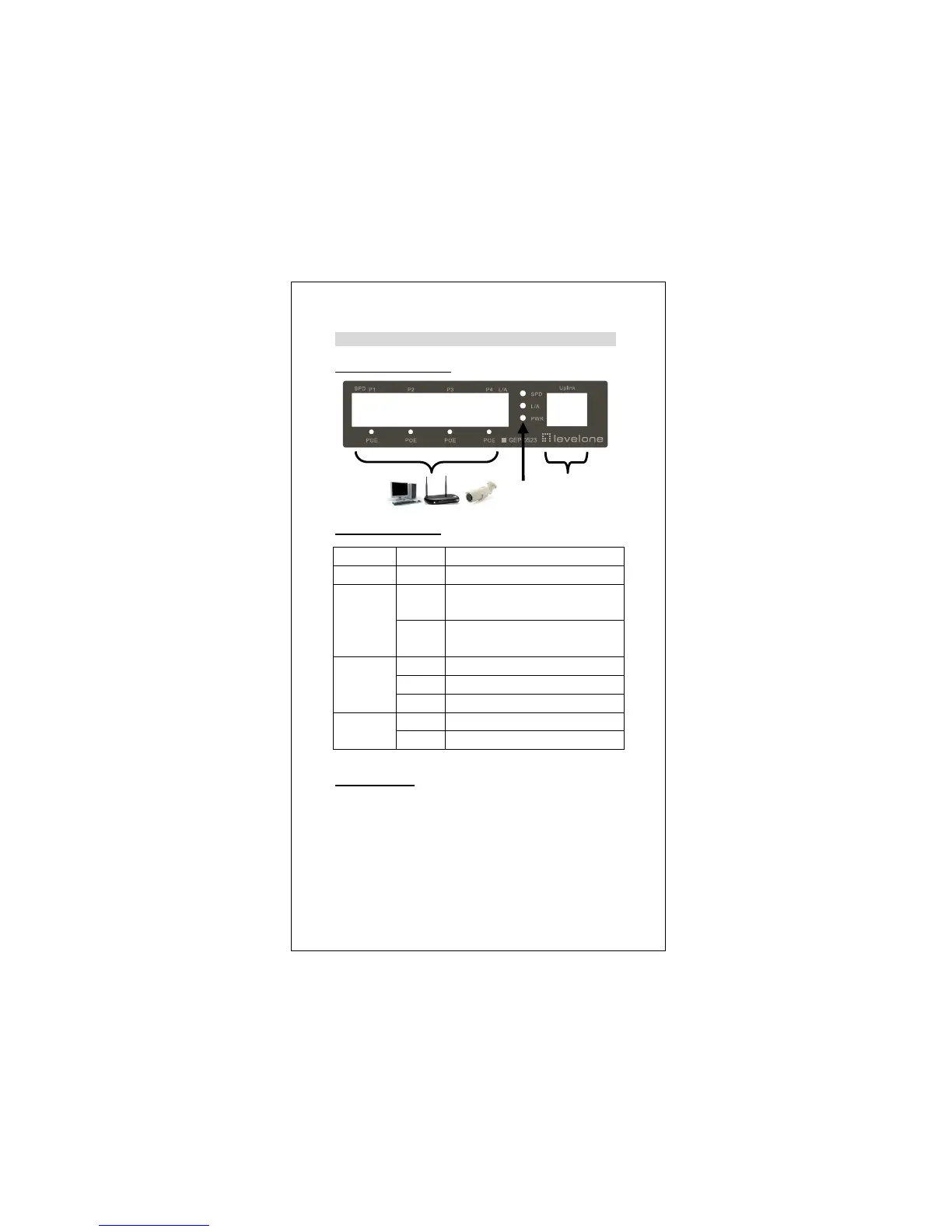

Diagram povezave
LED status lučke
Povezovanje
Korak1. Preverite, če je napajalni adapter pravilno
povezan v električno omrežje.
Korak2. Priključite napajalni kabel v stikalo.
Korak3. Povežite vaše omrežne naprave z uporabo
mrežnega kabla (npr. Cat.5e).
ost
Link/Act
Uplink
LED
Status
Description
PWR
Green
Device active
POE
Yellow
PoE function active and
Connected PD is supplied with PoE
OFF
PoE function deactivated or
No PD identified
L/A
Green
Link to port
OFF
Link failure
Blink
Data transfer to port
SPD
Green
Transfer rate is 1000Mbps
OFF
Transfer rate is 10/100Mbps
