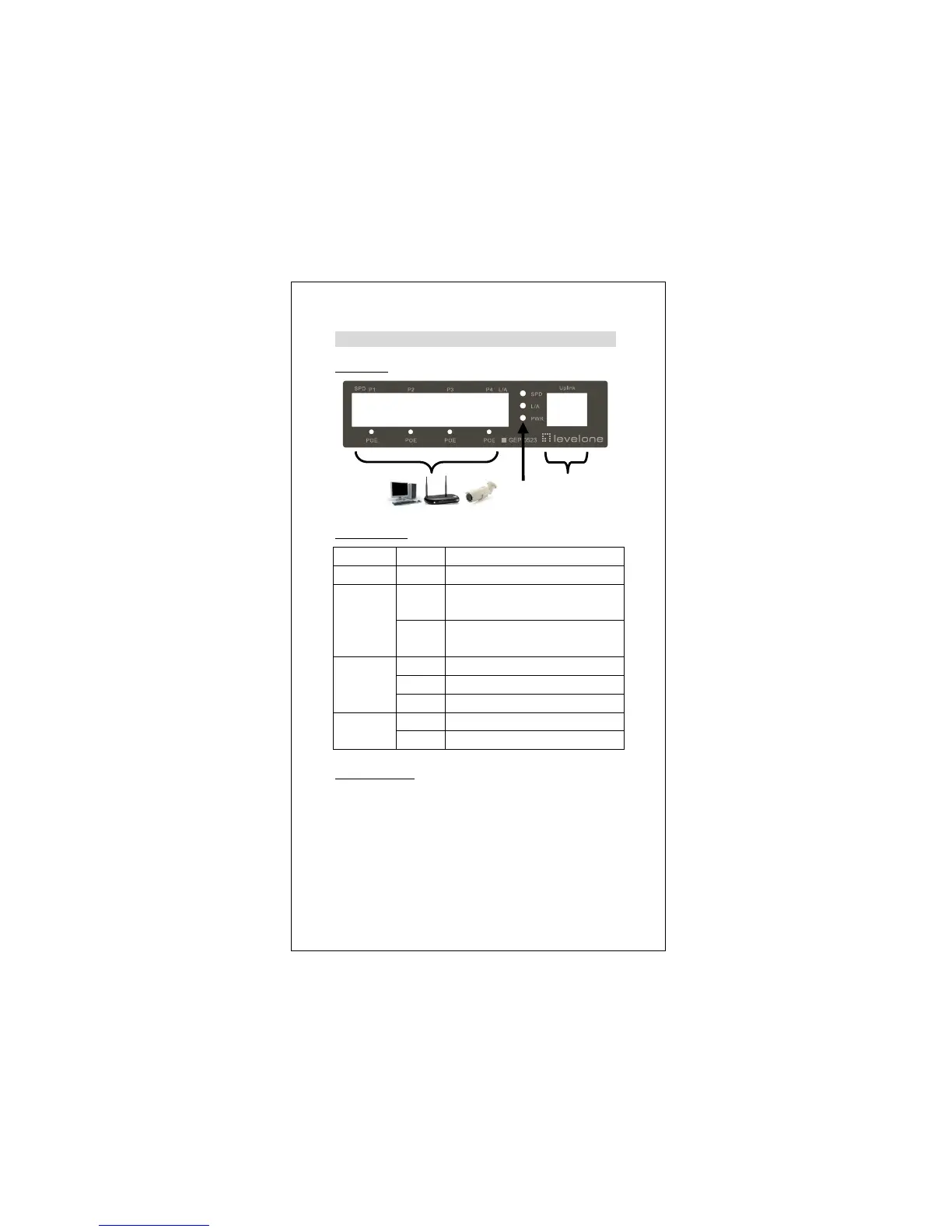

硬體安裝
LED 指示燈
連結網路裝置
步驟1. 請仔細檢察並確認電源供應器已連接上電源插
座.
步驟2. 請將電源供應器連接上此交換機.
步驟3. 請使用乙太網路線(例如: Cat-5e 線)連接交換機
與其他網路設備
Link/Act
Uplink
LED
Status
Description
PWR
Green
Device active
POE
Yellow
PoE function active and
Connected PD is supplied with PoE
OFF
PoE function deactivated or
No PD identified
L/A
Green
Link to port
OFF
Link failure
Blink
Data transfer to port
SPD
Green
Transfer rate is 1000Mbps
OFF
Transfer rate is 10/100Mbps
