l Hardware and Operation mode Instruction

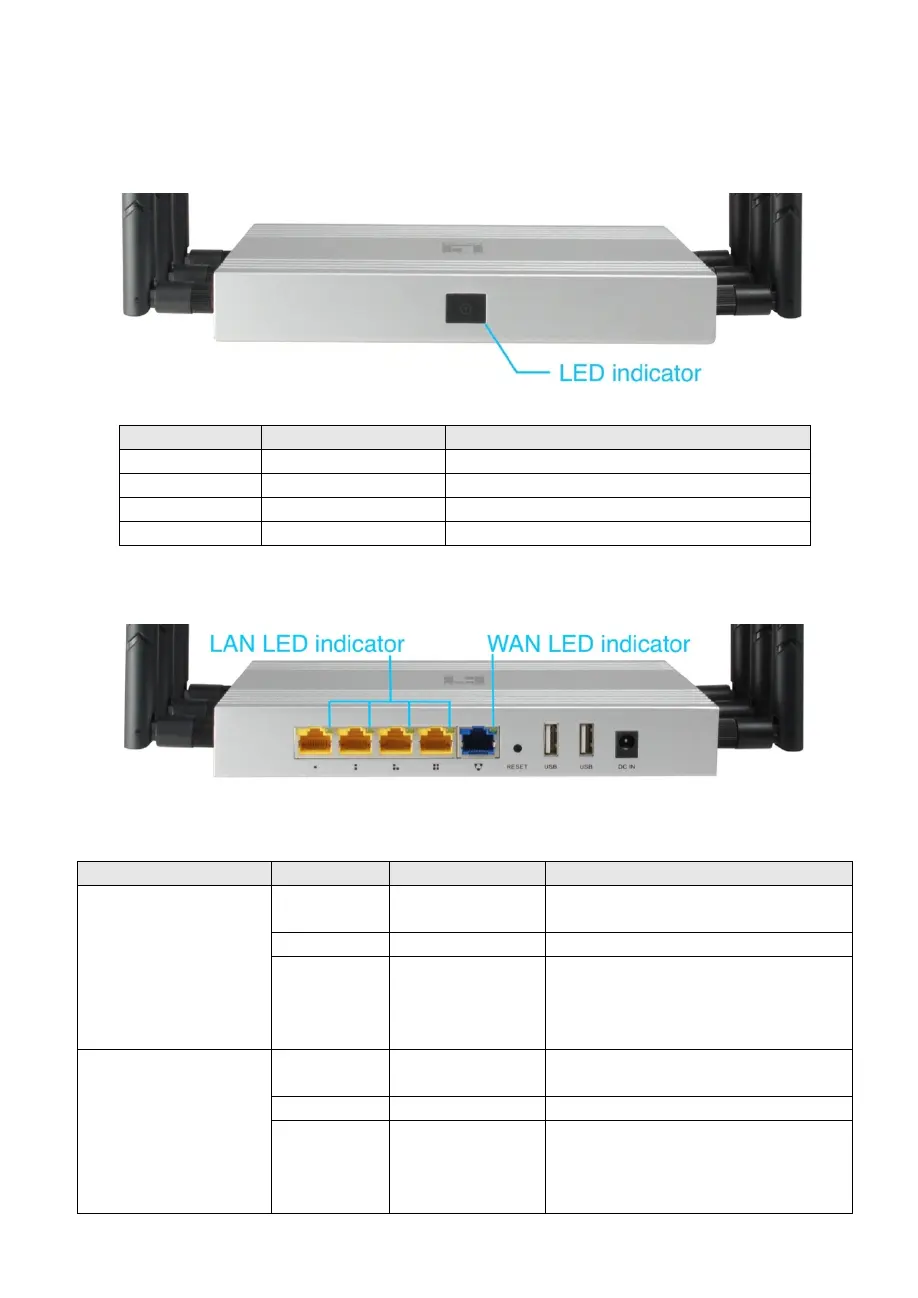

1. Front View of the WAP-8021:
LED Light State description
Color
Status
Description
--
Off
The WAP-8021 is not receiving power.
Green
On
Device Startup state
Green
Fast Blinking
Reset to Defaults
Blue
Blinking
WIFI SSID Broadcast ON
2. Rear View of the WAP-8021
LED Light State description
LED
Color
Status
Description
LAN
(10/100/1000Mbps
RJ45 Ports)
Green
Fast Blinking
The port is
transmitting/receiving packets
Green
Solow Blinking
On LAN is connected
--
Off
The port has no active network
cable connected, or it is not
established a link to connected
device.
WAN
(10/100/1000Mbps
RJ45 Ports)
Green
Fast Blinking
The port is
transmitting/receiving packets
Green
Solow Blinking
On WAN is connected
--
Off
The port has no active network
cable connected, or it is not
established a link to connected
device.
