Leviton OSC20-MOW - Features and Specifications

PRODUCT SPECIFICATIONS
SPECIFICATIONS
Indicator
Green LED Lamp: Ultrasonic motion.
Red LED Lamp: Infrared motion.
Construction: Two ultrasonic transmitters and two narrow bandwidth
receivers each 16mm in diameter. Frequency -- Crystal controlled to
±.005%. Transducers -- Oriented north and south (OSC20-M, OSC10-M
only, others use single pairs), angled 30° down from horizontal. Housing --
Rugged, high-impact, flame class rating, UV inhibitors. Color coded leads
are 6”.
Size & Weight: 4.5” dia., 1.5” height; 5 oz. (114 mm dia., 38 mm height;
142 g.)
Power Requirements: 24 VDC, (use OSPxx power pack.)
Output: 24 VDC active high logic control signal with short
circuit protection.
Operating Environment: 32°F to 104°F (0°C to 40°C); 0% to 95%
non-condensing, relative humidity. For indoor use only.
Warranty: 5 years.
FEATURES
Self-adjusting Settings: Callbacks for adjustment are eliminated. Time
delay settings are continually adjusted.
Non-Volatile Memory: Learned and adjusted settings saved in protected
memory. Power outages will not cause status loss.
Wide Coverage: Select the approximate area needed. Units from 500 to
2000 sq. ft. available.
Ambient Light Recognition: The photocell prevents lights from turning
on when the room is adequately lit by natural light
Small Size: The spherical-section shape makes the installation almost
invisible.
Accurate, Consistent Switching: Occupant complaints are eliminated;
lights are on when room is occupied, off when empty. Annoying false-offs
are minimized and lights on at night is eliminated.
Fast, Simple Installation: A single mounting post and three color-coded
wires make installation easy.
Photocell: 20-3,000 Lux adjustable. Factory set 3,000 L
(photocell disable)
Timer Settings: Automatic and Manual - 30s to 30 min.
Test mode - 6 sec.
0
20
11.5
11.5
8.5
8.5
20
TOP VIEW
SIDE VIEW
0
20
23
17
11 15
5.6
9
3
8
0

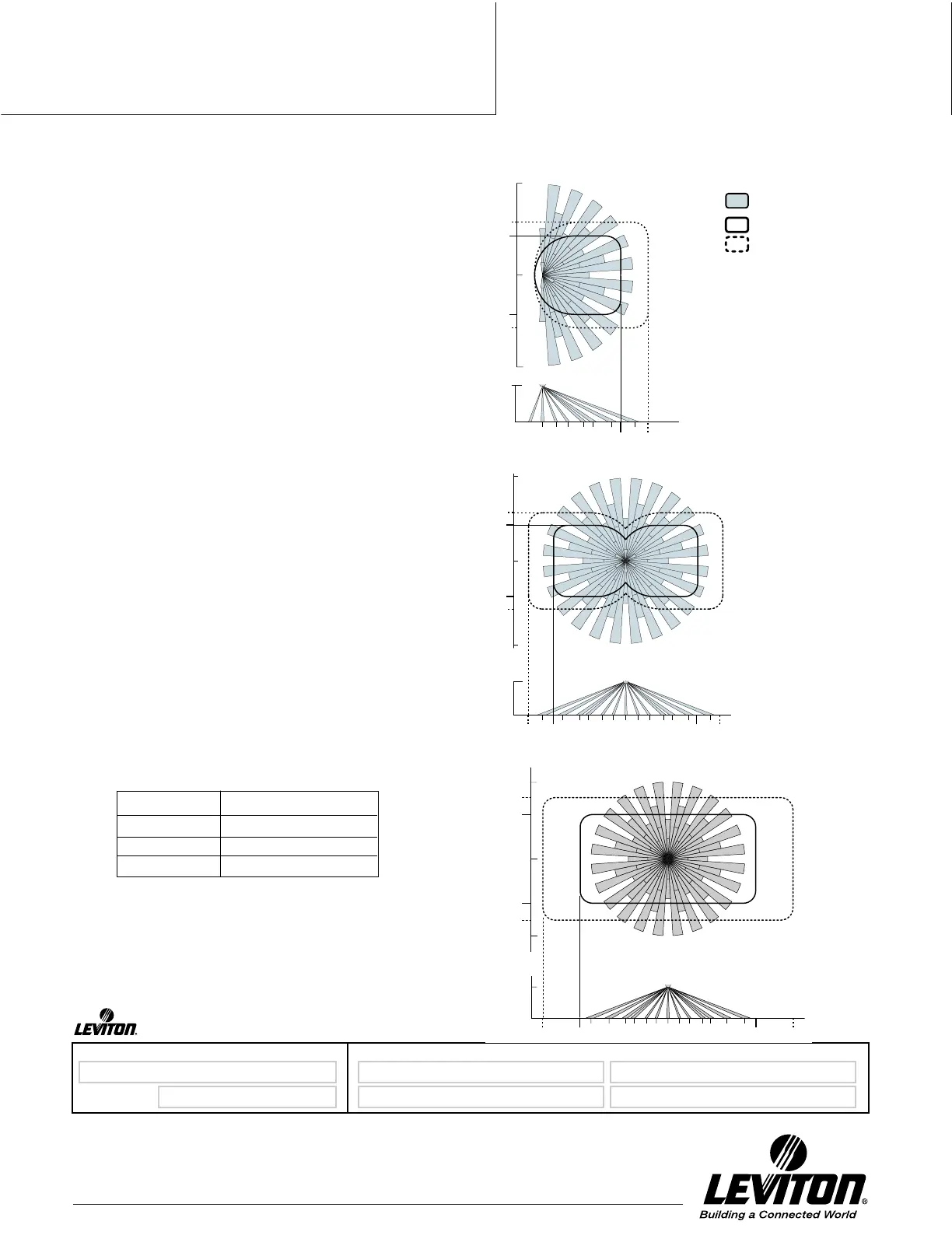

RANGES
OSCxx-MOW
.........................
2
Leviton Mfg. Co., Inc.
59-25 Little Neck Pkwy • Little Neck, NY 11362-2591 • Tech Line: 1-800-824-3005 • Fax: 1-800-832-9538
Visit our Website at: www.leviton.com
JOB NAME:
JOB NUMBER:
CATALOG NUMBERS:
SPECIFICATION SUBMITTAL
Product
Specifications
0
20
11.5
11.5
8.5
8.5
20
SIDE VIEW
TOP VIEW
2323
17
17
8
0
111115 1520 2099 33 0 5.65.6
0
20
8
16
16
11.5
11.5
20
SIDE VIEW
TOP VIEW
0335.5 5.59911 1115 1520 20
32 32
22.5 22.5
OSC05-M 500 sq. ft.
Model Power Requirement
OSC05-MOW 30MA
OSC10-MOW 40MA
OSC20-MOW 32MA
Ceiling height = 8 ft.
Minor Motion, Ultrasonic
Major Motion, Ultrasonic
Major Motion, IR
OSC10-M 1000 sq. ft.
OSC20-M 2000 sq. ft.
