Leviton Mfg. Co., Inc.
59-25 Little Neck Pkwy • Little Neck, NY 11362-2591 • Tech Line: 1-800-824-3005 • Fax: 1-800-832-9538
Visit our Website at: www.leviton.com
CONTROLS
US (Ultrasonic Sensitivity): High to low range.
Self Adjusting Timer: Timer is factory set at
10 minutes. User can easily select 30s - 30min
using internal controls. Sensor may increase timer
automatically through self-adapting features to
meet room or occupancy patterns.
PC (Photocell Adjustment): 20 to 3,000 Lux
INDICATOR
Green LED Lamp: Ultrasonic motion.
SPECIFICATIONS
Construction: One or two ultrasonic transmitters and one or two
narrow bandwidth receivers each 16mm in diameter. Frequency -- Crystal
controlled to ±.005%. Transducers -- Oriented north and
south. Housing -- Rugged, high-impact, injection molded plastic.
Color coded leads 6” (16.24 cm).
Size & Weight:
4.5” dia., 1.5” height; 5 oz. (114 mm dia., 38 mm height; 142 g).
Color: White.
Power Requirements: 24 VDC, from OSPxx power pack.
Output: 24 VDC active high logic control signal with short
circuit protection.
Operating Environment: 32°F to 104°F (0°C to 40°C); 0% to
95% relative humidity, non-condensing. For indoor use only.
Warranty: 5 years.
G-6987/C4-tp

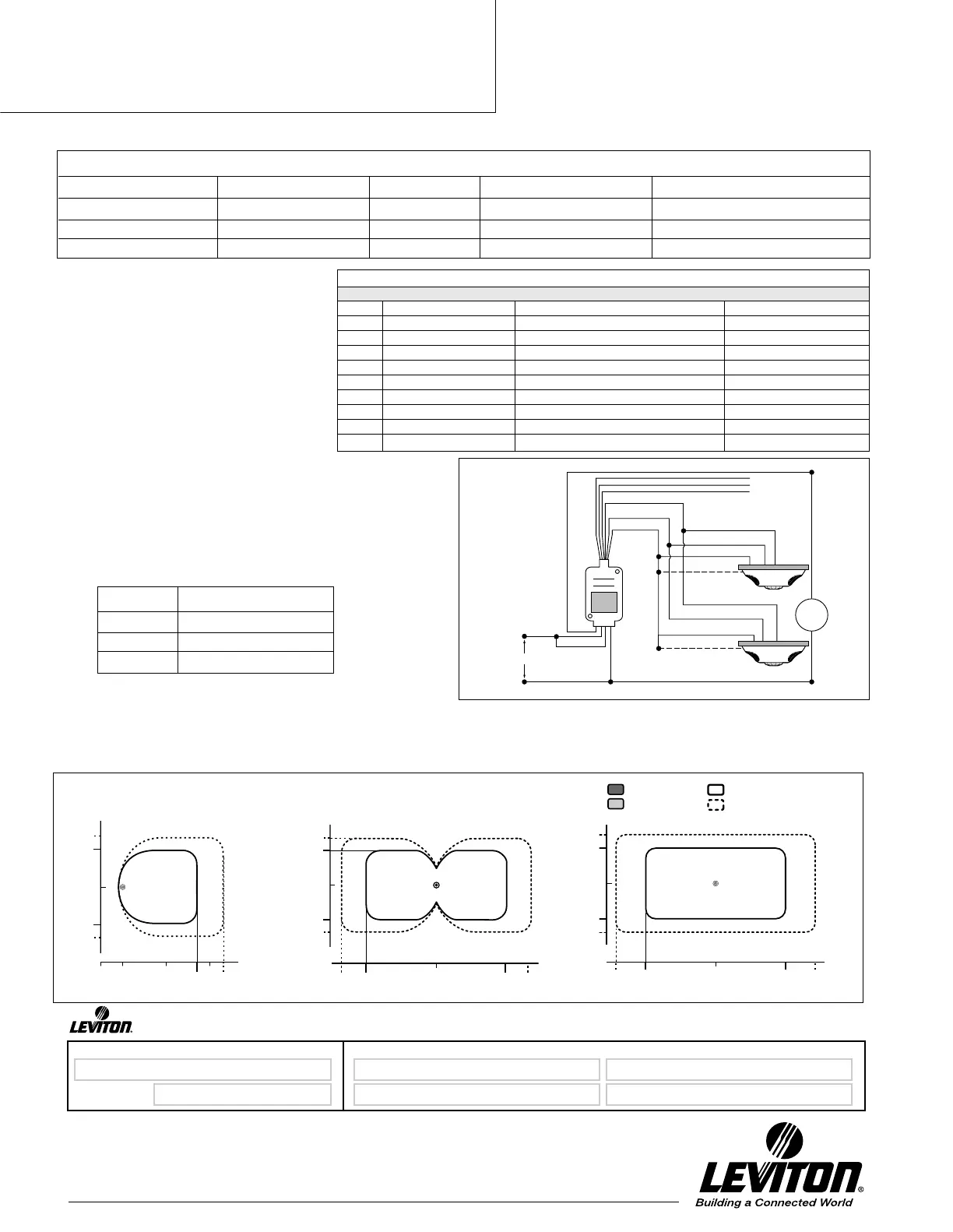

RANGES (APPROXIMATE)
PRODUCT SPECIFICATIONS
Models
Part Number Transducer Pairs Coverage Operating Frequency Additional Features
OSC05-U One 500 sq. ft. 40kHz Photocell
OSC10-U Two 1000 sq. ft. 40kHz Photocell
OSC20-U Two 2000 sq. ft. 32kHz Photocell
OSCxx–UOW
.........................
2
JOB NAME:
JOB NUMBER:
CATALOG NUMBERS:
SPECIFICATION SUBMITTAL
Product
Specifications
DIP switch settings
Switch Switch Functions Switch Settings
Bank A OFF ON
A1 N/A — —
A2 N/A — —
A3 Manual Mode Auto Adapting Enabled Auto Adapting Disabled
A4 Walk-Thru Disable Walk-Thru Enabled Walk-Thru Disabled
Bank B
B1 Override to On Auto Mode Lights forced On
B2 Override to Off Auto Mode Lights forced Off
B3 Test Mode OFF¡ON¡OFF Enter/Exit Test Mode
B4 LED Disable LEDS Enabled LEDS Disabled
