For additional support use the support
options in the My Leviton app or contact
technical services (page 4).
NOTE: Z-Wave is a mesh network. Ensure
your device is installed within 30 feet of
the hub or another Z-Wave enabled device.
Communication through exterior surfaces will
likely reduce transmission distances.
WARNING: TO AVOID FIRE, SHOCK OR DEATH, turn o power at the
circuit breaker.

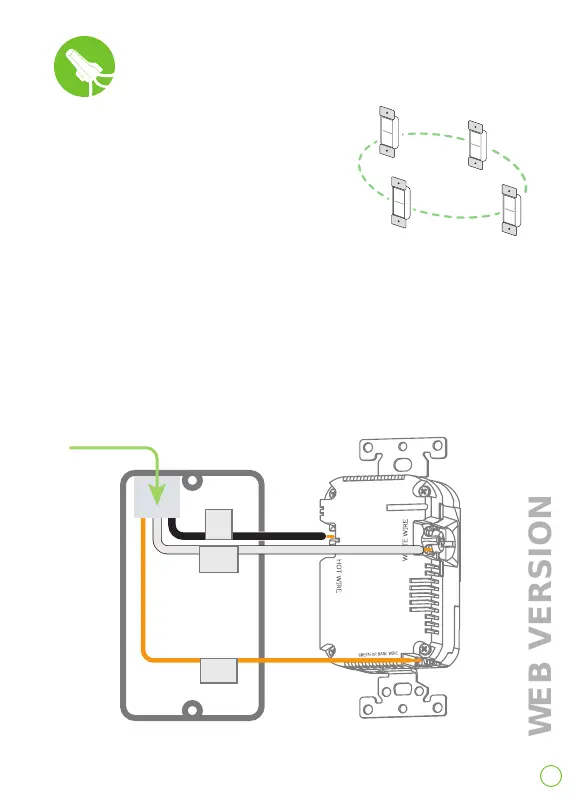

1. Work on only one connection at a time.
2. Connect wires as shown.
NOTE: Wire sizes for Hot and Neutral must be #14-12 AWG. Strip length is
marked on the device. Tighten terminal screws to 14 in-lbs (1.6 N-m).
Installation
If your back box looks dierent,
consult an electrician
GROUND
From Branch Circuit
NEUTRAL
LINE
To Next Page
