Lewmar EVO 45 - Servicing

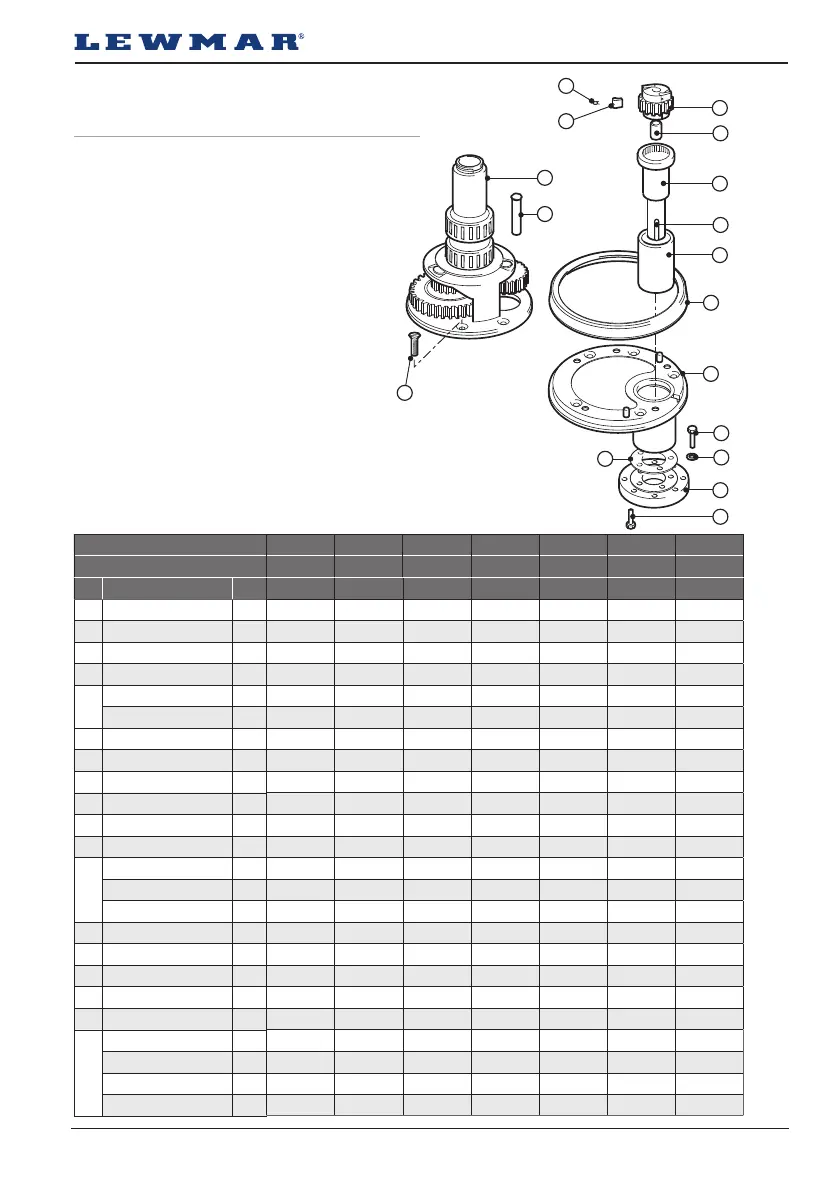

Lewmar OCEAN & EVO® Electric/Hydraulic Winches ref B2303 Iss.14 | 23
1
2
16
9
10
11
4
3
6
4
8
14
5
12
13
15
7
OCEAN 40 46 48 50 54 58 65
EVO® 40 45 50  55  65
# DESCRIPTION QTY
1 Centre Stem 1
45000237 48046037 48048037 45000560 45000660 45000760 45000860
1* Centre Stem 1
45500211 45500311 45500411 - 45500511 - 45500611
2 Gear Spindle 1
45000241 45000344 45000444 45000544 45000744 45000744 45000744
3 Rachet Pawl Gear 1
45000242 45000342 45000342 45000542 45000642 45000742 45000842
4
Pawl 4
15000094 15000094 15000094 15000301 15000301 15000301 15000301
Spring 4
1260/7 1260/7 1260/7 1260/7 1260/7 1260/7 1260/7
5 Bearing 3
15000378 15000398 15000398 15000017 15000017 15000017 15000017
6 Drive Shaft 1
45000357 45000357 45000357 45000543 45000543 45000543 45000543
7 Key 1
15003287 15003287 15003287 15003287 15003287 15003287 15003287
8 Plain Bearing 1
45000359 45000358 45000358 45000248 45000248 45000248 45000248
9 Base Plate Cover 1
45000229 45000329 45000429 45000529 45000529 45000759 45000759
9* Base Plate Cover 1
45500212 45500312 45500412 - 45500512 - 45500612
10
Base Plate 1
45000228 45000328 45000428 45000528 45000528 45000758 45000758
Dowel 2
45000235 45000235 45000235 45000581 45000581 45000581 45000581
Shaft Seal 1
B6234 B6234 B6234 B6235 B6235 B6235 B6235
11 Insulation Shim 1
45000257 45000257 45000257 45000257 45000257 45000257 45000257
12 HEX Bolt M8x25 4
B0173 B0173 B0173 B0173 B0173 B0173 B0173
13 Washer M8 4
B1207 B1207 B1207 B1207 B1207 B1207 B1207
14 Plate 1
45000350 45000350 45000350 45000350 45000350 45000350 45000350
15 CSK HD screw M6 x 12 5
B0678 B0678 B0678 B0678 B0678 B0678 B0678
16
CSK HD screw M6 x 16 5
B0524 - - - - - -
CSK HD screw M8 x 16 6
- B0536 B0536 - - - -
CSK HD screw M8 x 25 6
- - - B0812 B0812 - -
CSK HD screw M10 x 25 5
- - - - - B0567 B0567
7- Servicing
7.1 Parts list Electric 40-65
NOTE: Manual winches cannot be converted into
electric versions by adding parts listed here.
* EVO® part only. All other parts are common to both
models.
