Lewmar EVO 45 - Page 24

24
1
2
16
8
9
10
4
3
6
4
7
11
15
14
12
13
5
OCEAN 46 48 50 54 58 65
EVO® 45 50  55  65
# DESCRIPTION QTY
1 Centre Stem 1
45000337 45000437 45000560 45000660 45000760 45000860
1* Centre Stem 1
45500311 45500411 - 45500511 - 45500611
2 Gear Spindle 1
45000344 45000444 45000544 45000744 45000744 45000744
3 Rachet Pawl Gear 1
45000342 45000342 45000542 45000642 45000742 45000842
4
Pawl 4
15000094 15000094 15000301 15000301 15000301 15000301
Spring 4
1260/7 1260/7 1260/7 1260/7 1260/7 1260/7
5 Bearing 3
15000398 15000398 15000017 15000017 15000017 15000017
6 Drive Shaft 1
45000346 45000346 45000546 45000546 45000546 45000546
7 Plain Bearing 1
45000248 45000248 45000248 45000248 45000248 45000248
8 Base Plate Cover 1
45000329 45000429 45000529 45000529 45000759 45000759
8* Base Plate Cover 1
45500312 45500411 - 45500511 - 45500612
9
Base Plate 1
45000328 45000428 45000528 45000528 45000758 45000758
Dowel 2
45000235 45000235 45000581 45000581 45000581 45000581
Shaft Seal 1
B6234 B6234 B6235 B6235 B6235 B6235
10 Insulation Shim 1
45000257 45000257 45000257 45000257 45000257 45000257
11 Plate
45000348 45000348 45000348 45000348 45000348 45000348
12 Washer M12
B1212 B1212 B1212 B1212 B1212 B1212
13 HEX Bolt M12 4
B0061 B0061 B0061 B0061 B0061 B0061
14 Hydraulic motor 4
B7718 B7719 B7719 B7720 B7720 B7720
15 CSK HD Screw M6 x 12 1
B0678 B0678 B0678 B0678 B0678 B0678
16
CSK HD screw M8 x 16 6
B0536 B0536 - - - -
CSK HD screw M8 x 25 6
- - B0812 B0812 - -
CSK HD screw M10 x 25 5
- - - - B0567 B0567
GB

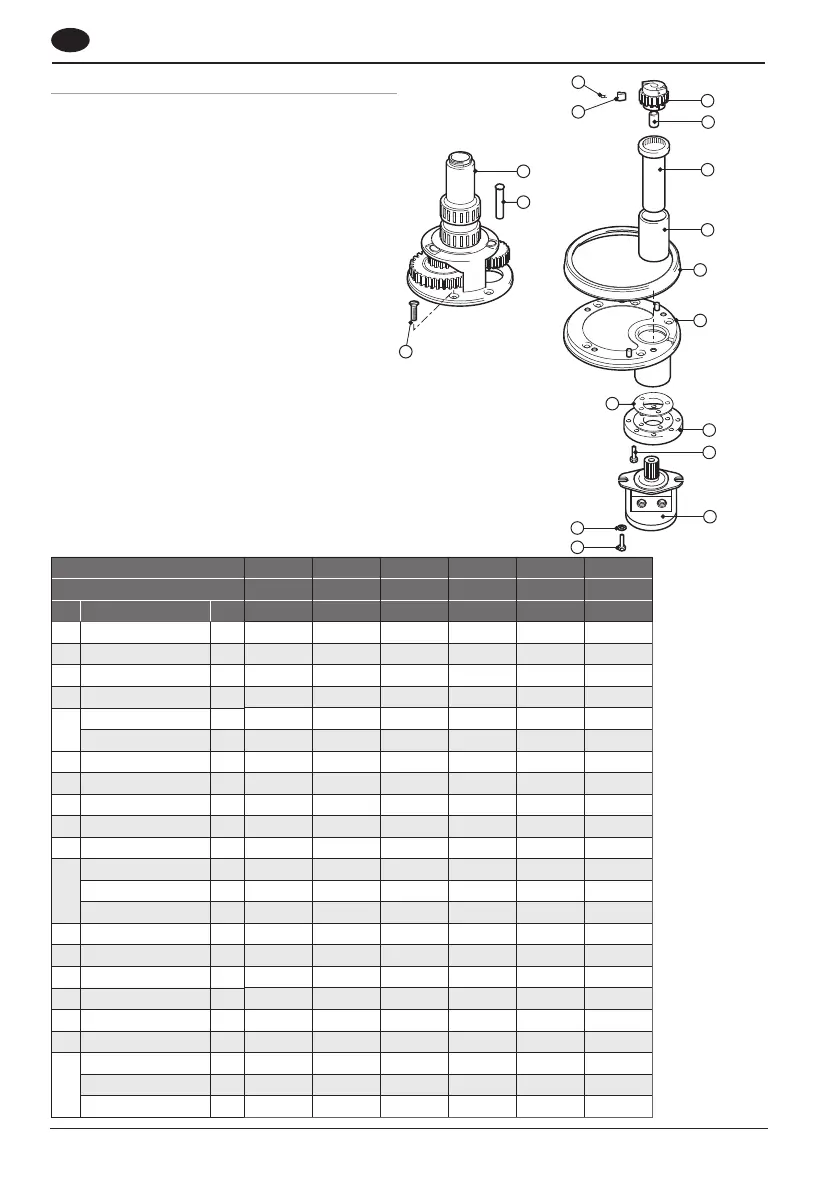

7.2 Parts list Hydraulic 46-65
* EVO® part only. All other parts are common to both
models.
