Lewmar OCEAN & EVO® Electric/Hydraulic Winches ref B2303 Iss.14 | 7
3.7-2
3.5-2
3. 5-1
3.5-3
OCEANEVO® EVO®
3.5-53.5-4

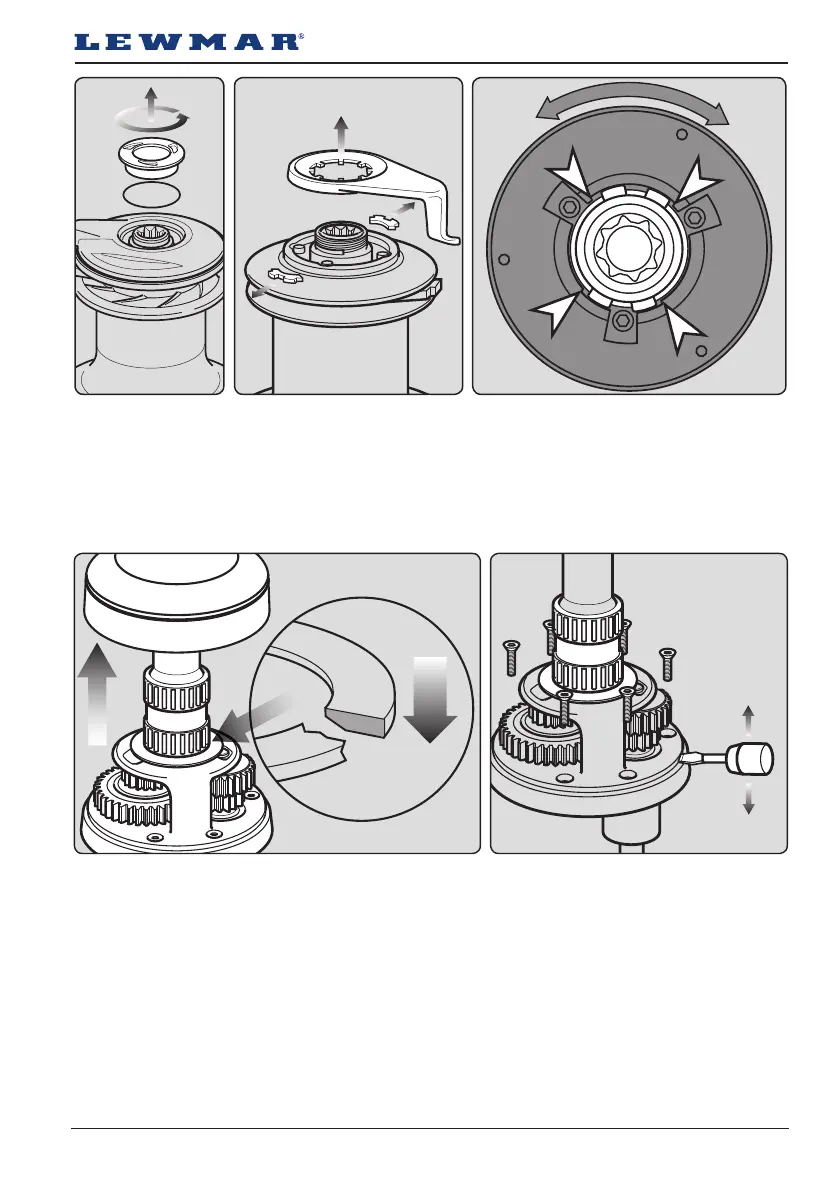

4. . Li off drum. Remember to take care in re-fitting the drum washer with bevel on underside.
5. Remove all screws holding centre stem to base. Using a flat bladed screwdriver in the drainage slots, lever
off centre stem assembly clear of the two dowel pins.
NOTE: For manual to electric winch conversion, replace centre stem with kit supplied unit.
