Lewmar V1-6 & SPORT Windlass | 10

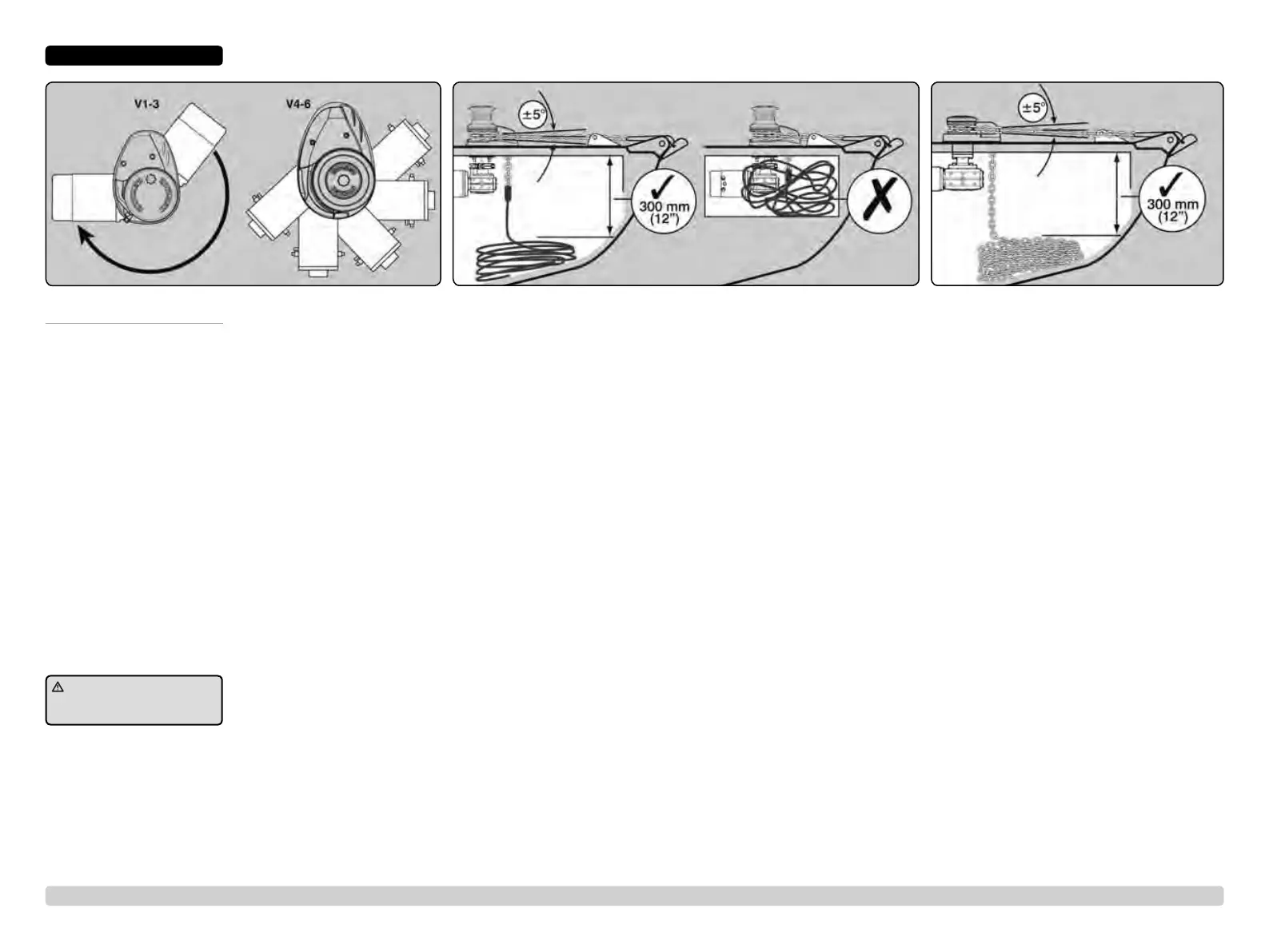

3.6 V1-6 bellow deck
preparation
IMPORTANT: The positioning of the
motor/gearbox must be checked prior
to cutting for deck/hull and bulkhead
clearance.
1. Models V1-3
The motor/gearbox is connected by
a fast fi t clamp enabling it to be
rotated and fi xed in any position 360
degrees.
Models V4-5
The motor/gearbox is bolted via the
through deck mounting bolts.
Models V6
The motor/gearbox is bolted directly
to the base via a down tube.
• NOTE: In either case do not position
motor/gearbox below rode/chain
pipe fall area.
2. Models V1-5
Lead from the roller should be fed
horizontally back to the top of the
gypsy and along its centre line
within ±5˚. There must be suffi cient
vertical fall for the chain or rope
when hauling in.
3. Model V6 (Chain Only)
Chain from the roller should be
fed horizontally back to the top of
the gypsy and along its centre line
within ±5˚. There must be suffi cient
vertical fall for the chain when
hauling in.
3.6-1 3.6-2
WARNING! Failure to
provide minimum vertical
fall can cause jamming.
3.6-3
3. Installation
