Lewmar V1-6 & SPORT Windlass | 13
3.8-3

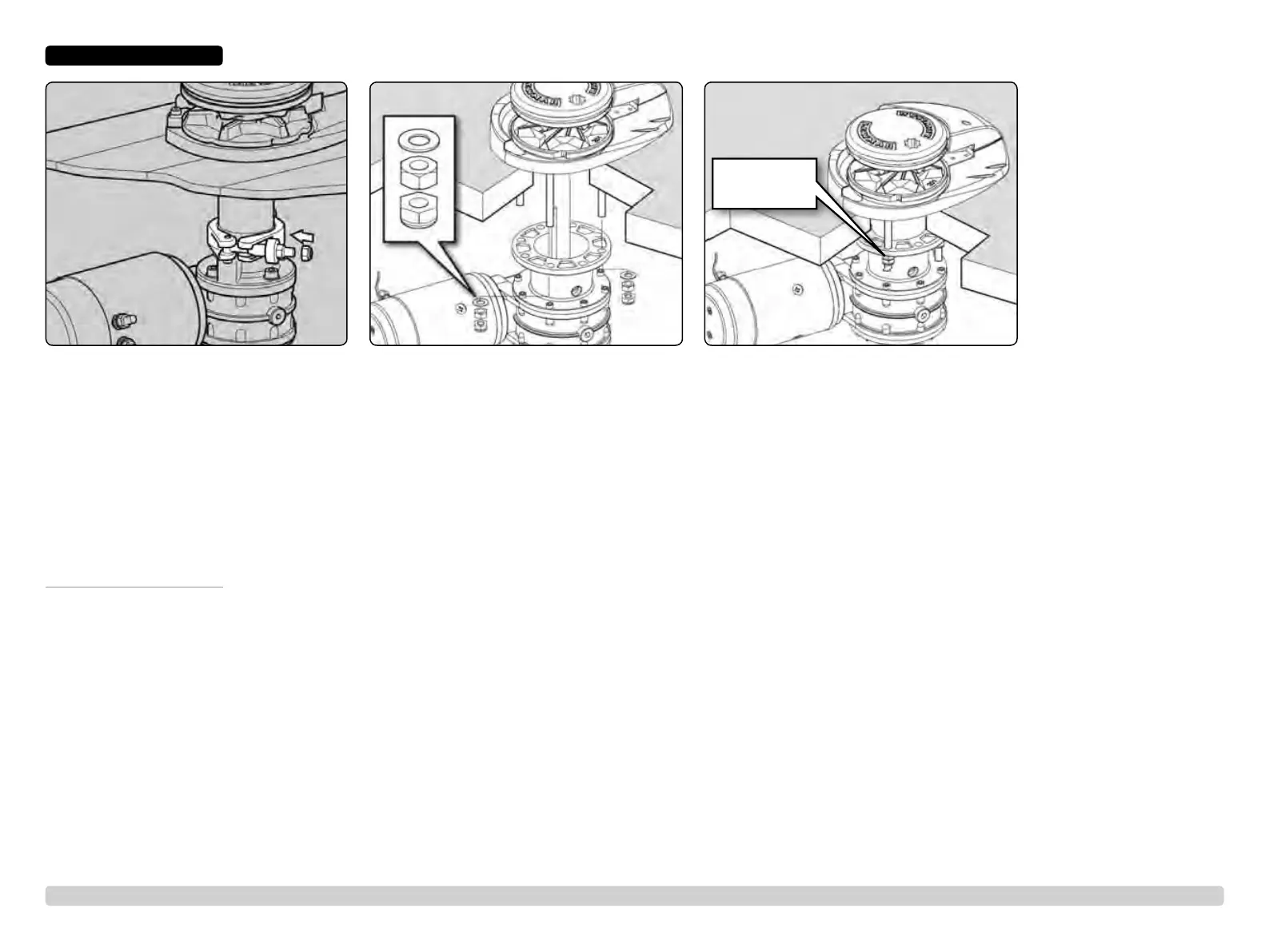

3. Slide the gearbox up the shaft and
rotate it into a suitable position
before fi nally pushing home onto the
location dowels.
Swing the Fast Fit clamp shut and
tighten up the bronze nut by hand. If
required you can remove the plastic
location plug holding the Fast Fit
clamp in place and rotate the clamp
around the gearbox fl ange to give a
better location for tightening up the
nut.
• Tighten up the bronze nut to 15 Nm
(11 lb/ft) before adding the Nyloc
nut. Tighten the Nyloc nut up behind
the bronze nut.
3.9 V4-5 under deck fi tting
• Lightly grease all moving parts.
1. Ensure drive key is in place then
gently slide the motor/gearbox up
the drive shaft until it contacts the
deck.
• NOTE: Position the motor/gearbox
away from the rope/chain pipe fall.
2. Check the motor/gearbox and
windlass mounting surfaces are
parallel. Assemble the M8 nut fi rst,
secure with Loctite
®
threadlock to
43 Nm torque. Lock tightened nut
with spanner and then secure with
the M8 Nyloc nut.
• NOTE: If using silicone or other
rubbery type sealant, it is advisable
to allow curing of the sealant before
fi nal tightening of the mounting
nuts.
3.9-1 3.9-2
43 Nm
3. Installation
