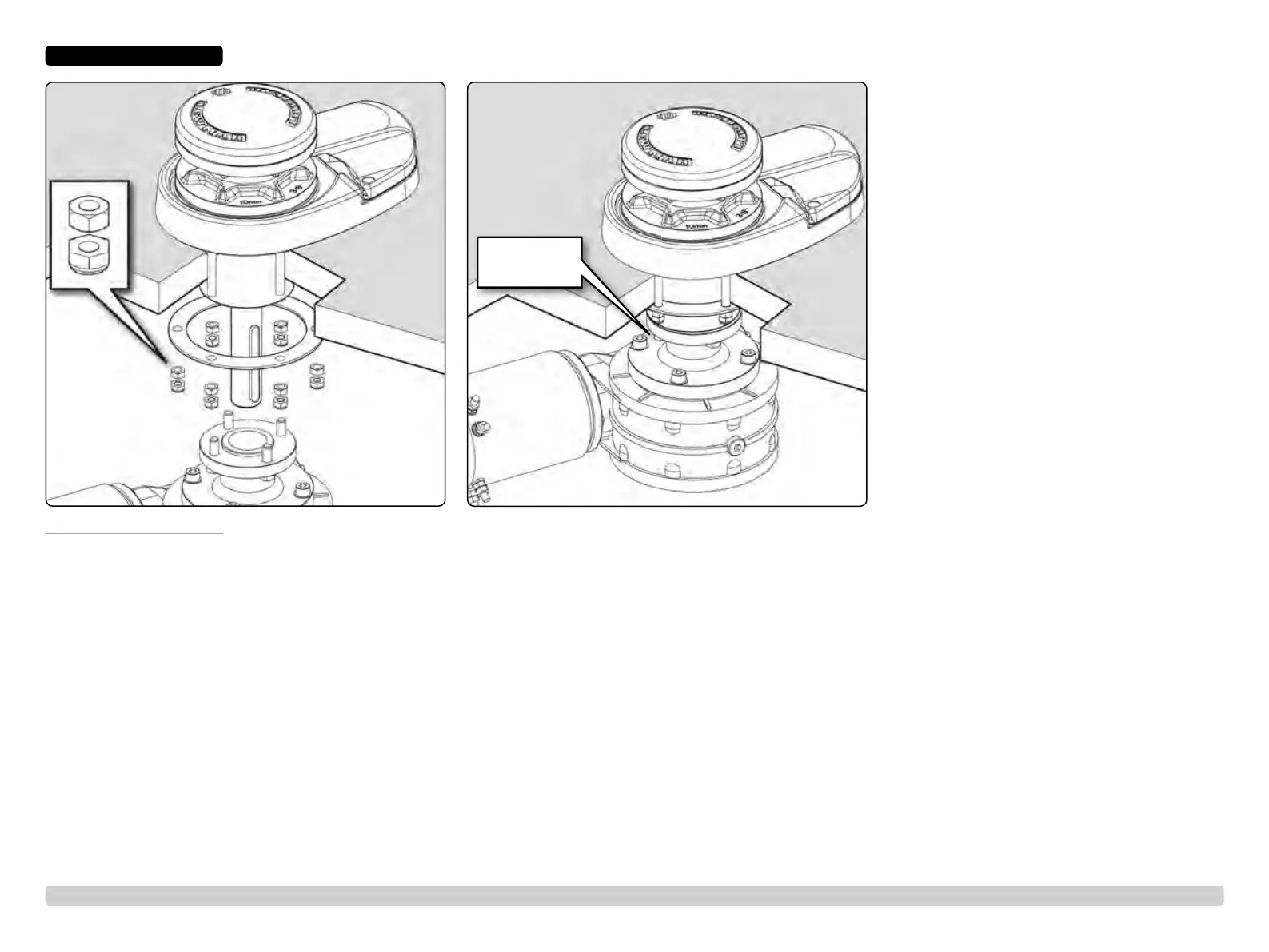

3.10 V6 under deck fi tting
• Lightly grease all moving parts.
1. Slide the deck backing plate onto
the windlass studs. Assemble the
M10 nut fi rst, secure with Loctite
®
threadlock to 43 Nm torque. Lock
tightened nut with spanner and then
secure with the M10 Nyloc nut.
• NOTE: If using silicone or other
rubbery type sealant, it is advisable
to allow curing of the sealant before
fi nal tightening of the mounting
nuts.
2. Ensure drive key is in place then
gently slide the motor/gearbox up
the drive shaft until motor/gearbox
mounting plate meets the windlass
downtube. Assemble the M10 bolts
secure with Loctite
®
threadlock to
43 Nm torque.
• NOTE: Position the motor/gearbox
away from the rope/chain pipe fall.
3.10-2
43 Nm
3. Installation
