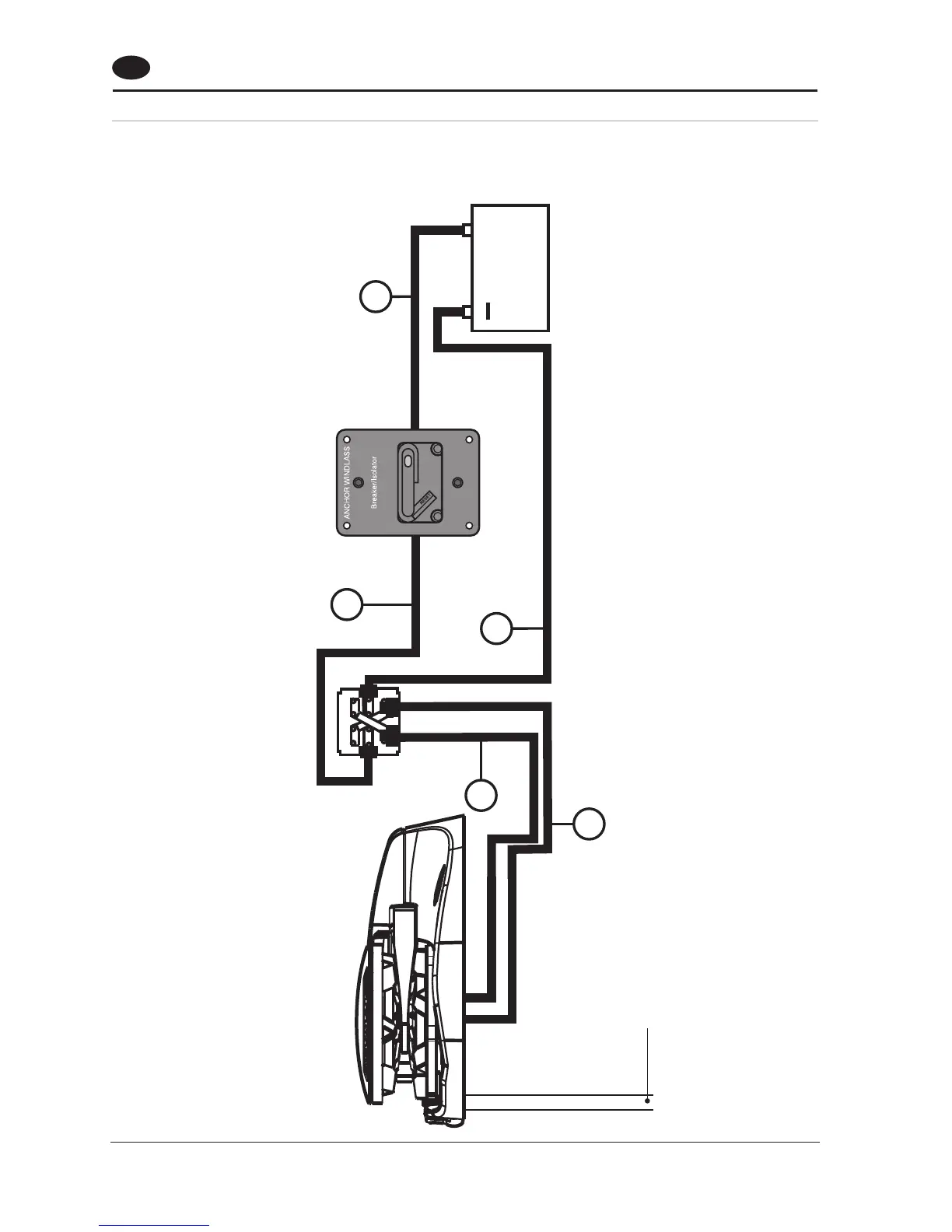

Lewmar V700 - 5.4 Toggle Switch Wiring Diagram

8
+
C
D
E
B
A
Rear View on
Toggle Switch
0052519
35A Breaker/Isolator
68000604 - 12 V
BATTERY
12 VOLT
Small red and black sleeved wires are sensor wires to chain counter if fitted.
GB
5.4 V700 Wiring diagram (toggle switch)
Choice of cable thickness depends on total cable length:
A + B + C + D + E =
Battery to windlass, windlass to battery.
