INPUT
DECAY
DELAY
FX LVL
PARAMETER
STORE (+)/CLEAR (–)
VALUE
REGISTER/PRESET
9
10
11
12
13
14
15
16
8
7
6
5
4
3
2
1
GOLD PLATE
VOCAL PLATE
BRASS PLATE
PERC PLATE
CHORUS
FLANGE
ECHO
DELAYS
GATE
INVERSE
TILED ROOM
GUITAR ROOM
CHAMBER
RECITAL HALL
STRING HALL
LARGE HALL
OUTPUTMIX
DRY WET
DIGITAL
PROCESSOR
EFFECTS
REGISTER/PRESET
Button selects preset or register mode.
LED lights when register mode is selected,
turns off in preset mode.
Knob will select presets 1-16 or registers
1-16, depending on button setting.
OUTPUT
Controls Alex's output level.
VALUE
Adjusts selected parameter.
PARAMETER
Selects DECAY, DELAY or FX LVL for
adjustment with the VALUE knob. (Se-
lection indicated by lit LED.)
STORE (+)/CLEAR (–)
Toggles the Store and Clear functions. When "+" is displayed,
press and hold to store the current effect to displayed register.
When "–" is displayed, press and hold to clear a register to allow
effects to be skipped for a footswitch step or chain sequence.
DISPLAY
Numeric display of digits 1-16, and decimal point. Displayed digits
indicate ID number of currently running effect or parameter setting
if one of parameter LEDs is flashing. Decimal point lights to show
an effect has been modified since it was stored.
2
INPUT
Sets the level of the incoming
signal.
MIX
Controls the proportion of processed
(wet) to unprocessed (dry) signals sent
to the outputs.

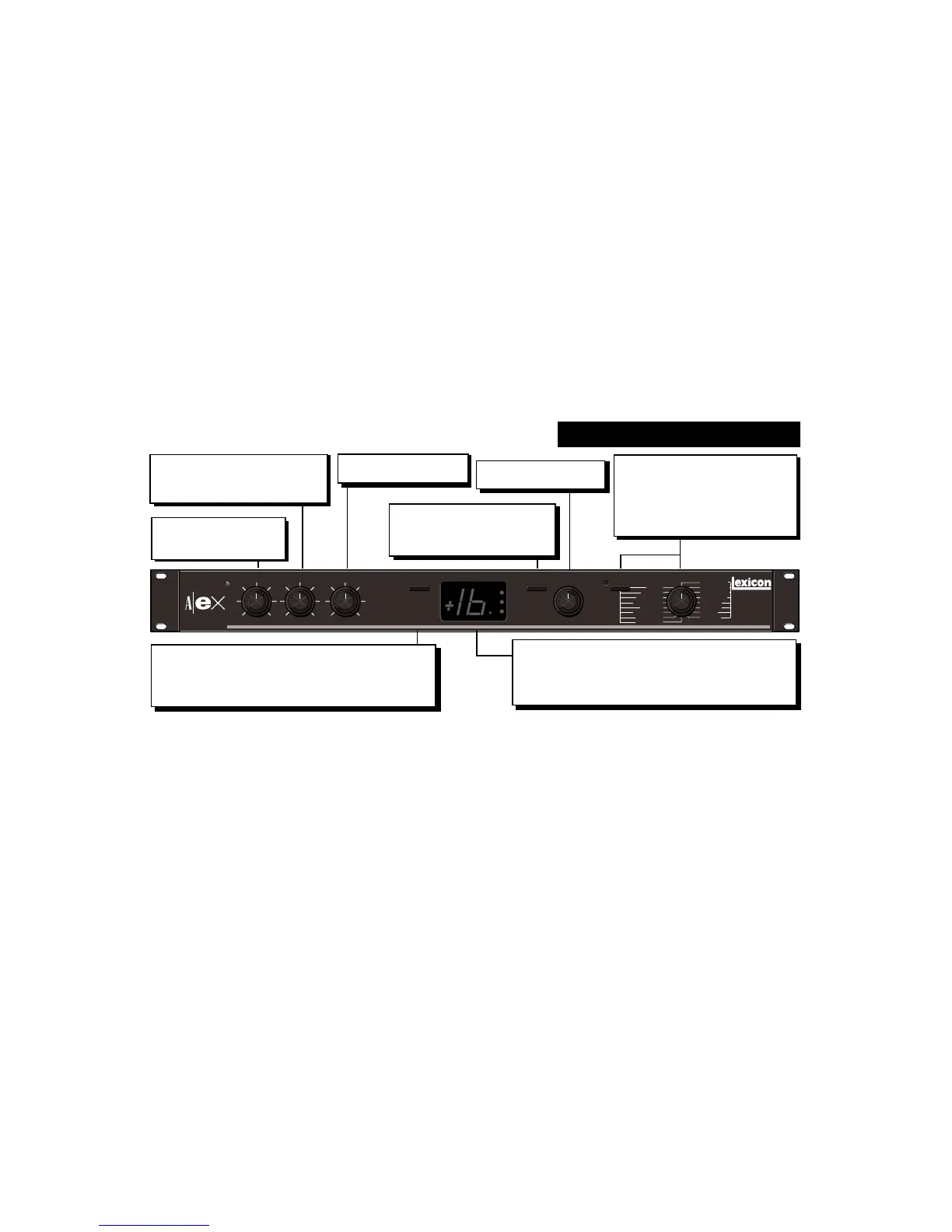

Front Panel Overview
