Lexicon ALEX - REV 1 User Manual

POWER
Use Lexicon MSA power pack,
or 9VAC 1 amp equivalent.
FOOTSWITCH POWER OUTPUTS INPUTS
(MONO)
RLR
L
(MONO)
9V~, 1A,
50-60Hz
ALEX
LEXICON, INC.
WALTHAM MA 02154
MADE IN U.S.A.
P/N 021-09504
SERIAL #
TIP - BYPASS
RING - REG STEP
SLEEVE - COMMON
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received
including interference that may cause undesired operation.
INPUT
Single-ended (unbalanced) inputs accept levels as
low as -30dBu. Input impedance is 50 kΩ in stereo, 25
kΩ in mono. Use the right for mono input.
FOOTSWITCH
Tip/Ring/Sleeve phone input, for momentary con-
tact footswitches, allows footswitch control of Reg-
ister Step and Bypass functions.
OUPUT
Single-ended (unbalanced) stereo outputs provide
-2dBu nominal output level. Use the right output
connector for mono output.
4

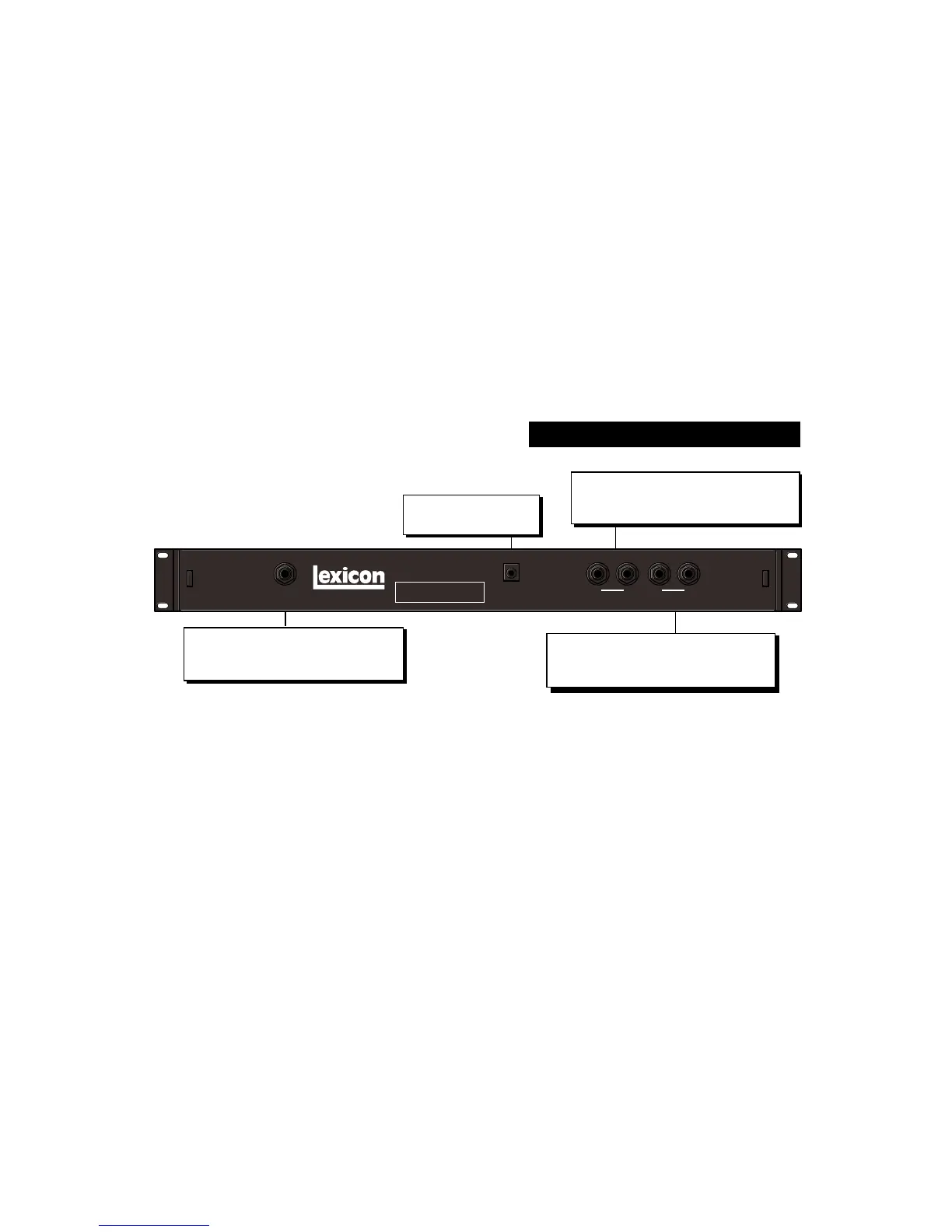

Rear Panel Connections

Lexicon ALEX - REV 1 Specifications

Audio

audio input level	-30 dBu minimum
audio input impedance (stereo)	50 kΩ unbalanced
audio input impedance (mono)	25 kΩ unbalanced
audio output level (nominal)	-2 dBu
audio output level (maximum)	+8 dBu
audio output impedance	600 Ω unbalanced

Frequency Response and THD+N

frequency response (wet)	20 Hz - 15 kHz, +1 dB to -3 dB
frequency response (dry)	20 Hz - 20 kHz, +0.5 dB
THD+N (wet)	<0.05% @ 1 kHz
THD+N (dry)	<0.025% @ 1 kHz

Dynamic Range and Conversion

dynamic range	85 dB, typical, 20 Hz - 20 kHz bandwidth
conversion	16 bit linear PCM encoding
sampling rate	31.25 kHz

Power

power requirements	9 VAC, 1 A wall transformer provided

Operating Environment

operating temperature	32° to 104°F (0° to 40°C)
storage temperature	-20° to 170° F (-30° to 75°C)
relative humidity	95% non-condensing

Weight and Dimensions

dimensions	19"W x 1.75"H x 4"D (483 x 45 x 102 mm)
weight	2 lbs 11 oz (1.22 kg)
