Lexicon MC-12 Release Note

Software Version 2.0 Release & Errata Notes
Lexicon
36
MAIN MENU
MODE ADJUST
AUDIO CONTROLS
SETUP
SETUP
INPUTS
SPEAKERS
REAR PANEL CONFIG
DISPLAYS
VOLUME CONTROLS
TRIGGERS
LOCK OPTIONS
INPUT SETUP
DVD1
DVD2
LD
TV
SAT
VCR
CD
PVR
GAME
TAPE
TUNER
AUX
DVD1 INPUT NAME
EDIT INPUT NAME
RESTORE DEFAULT NAME
PRESS MENU V TO
RESTORE INPUT NAME
EDIT INPUT NAME
MC-12
WYBUTTONS TO EDIT
UP TO 20 CHARACTERS
V BUTTON TO ADVANCE
^
DVD1 DIGITAL IN
COAX-1
COAX-2
COAX-3
COAX-4
COAX-5
COAX-6
OPTICAL-1
OPTICAL-2
OPTICAL-3
OPTICAL-4
OPTICAL-5
OPTICAL-6
AES/EBU
NONE
DVD1 ANALOG IN
ANALOG-1
ANALOG-2
ANALOG-3
ANALOG-4
ANALOG-5
ANALOG-6
ANALOG-7
ANALOG-8
NONE
DVD1 VIDEO IN
COMPOSITE-1
COMPOSITE-2
COMPOSITE-3
COMPOSITE-4
COMPOSITE-5
S-VIDEO-1
S-VIDEO-2
S-VIDEO-3
S-VIDEO-4
S-VIDEO-5
S-VIDEO-6
S-VIDEO-7
S-VIDEO-8
NONE
DVD1 COMPONENT
COMPONENT 1
COMPONENT 2
COMPONENT 3
COMPONENT 4
DVD1 2-CH MODE
&&FILM
&&TV
&&MUSIC
&&MUSIC SURR
(**)PLII +
(**)PLII MOVIE
(**)PLII MUSIC
(**)PRO LOGIC
NIGHTCLUB
CONCERT HALL
CHURCH
CATHEDRAL
2-CH SURROUND
2-CHANNEL
MONO LOGIC
MONO SURROUND
MONO
USE LAST
DVD1 (***) D MODE
5.1&&FILM OFF
5.1&&TV OFF
5.1&&MUSIC OFF
5.1$$&&SurEX OFF
(**)DIGITAL EX OFF
5.1 2-CHANNEL
5.1 MONO LOGIC
5.1 MONO SURR
5.1 MONO
USE LAST
DVD1 $&$&$& MODE
$&$&$&$&FILM
$&$&$&$&MUSIC
$&$&$&2-CHAN
USE LAST
DVD1 5.1a MODE
5.1a(%)FILM
OFF
5.1a(%)MUSIC
OFF
5.1a%@%SurEX OFF
5.1a STANDARD
5.1a 2-CHANNEL
USE LAST
DVD1 RECORD ADV
ANLG IN LVL +0dB
DIGITAL BYPASS OFF
DIG OUT RATE 44.1kHz
RECORD ENABLED
DVD1 MAIN ADV
INPUT SELECT DIGITAL
ANALOG BYPASS OFF
S-VIDEO 16:9 AUTO
S-VIDEO OSD 4:3 ON
COMPONENT OSD OFF
ON
OFF
INPUT
96kHz
88.2kHz
48kHz
41.1kHz
ON
OFF
ENABLED
BLOCKED
AUTO
OFF
DIGITAL
ANALOG
AUTO
Selecting an INPUT SETUP menu item accesses the
corresponding menu shown below, regardless of
which input is selected. The DVD1 INPUT SETUP
menu is shown at the right as an example, and will
continue to be shown as an example throughout this
document. Whenever it appears in a figure, any other
INPUT SETUP menu may be substituted.
MAIN and RECORD ADV
menu default parameter
values differ from input to
input.
DIGITAL
ANALOG
AUTO
Continued from page 35
DVD1 ANLG IN LVL
AUTO ON
MANUAL +0dB
AUTO GAIN +0.0dB
dB LR
0
-6
-15 XX
-30
-45
DVD1 INPUT SETUP
NAME DVD1
DIGITAL IN COAX-1
ANALOG IN NONE
ANLG IN LVL AUTO
VIDEO IN S-VIDEO-1
COMPONENT IN 1
2-CH FILM
(**) D 5.1&&FILM
FILM
5.1a 5.1a(%)FILM
MAIN ADVANCED
ZONE2 IN DIGITAL
RECORD IN DIGITAL
RECORD ADVANCED
-18 to +12dB
-18 to +12dB

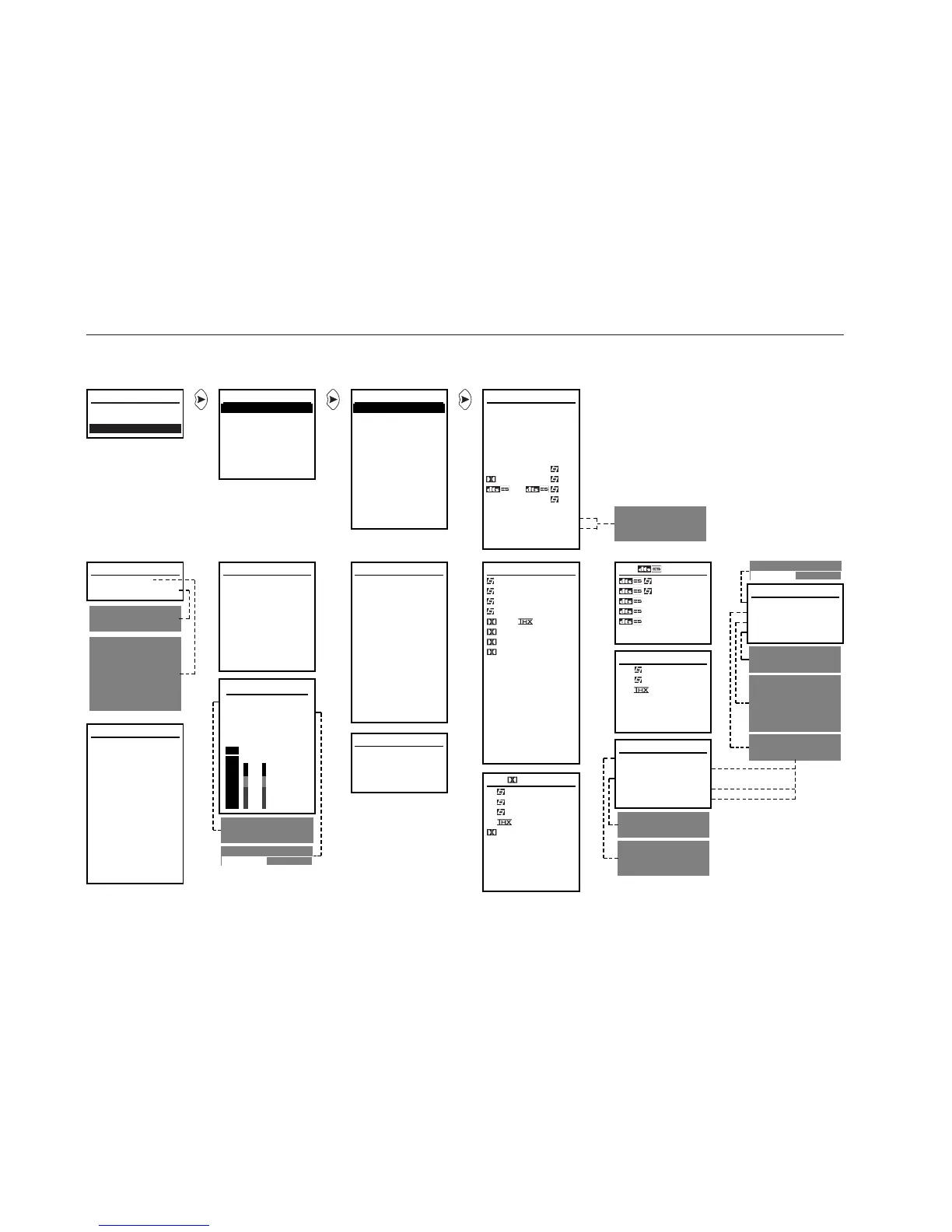

SETUP Menu Branch (continued continued from page 35)
