3-61

The Algorithms and Their Parameters

Rvb Block

Pitch FX Block

Rvb and FX Block Controls

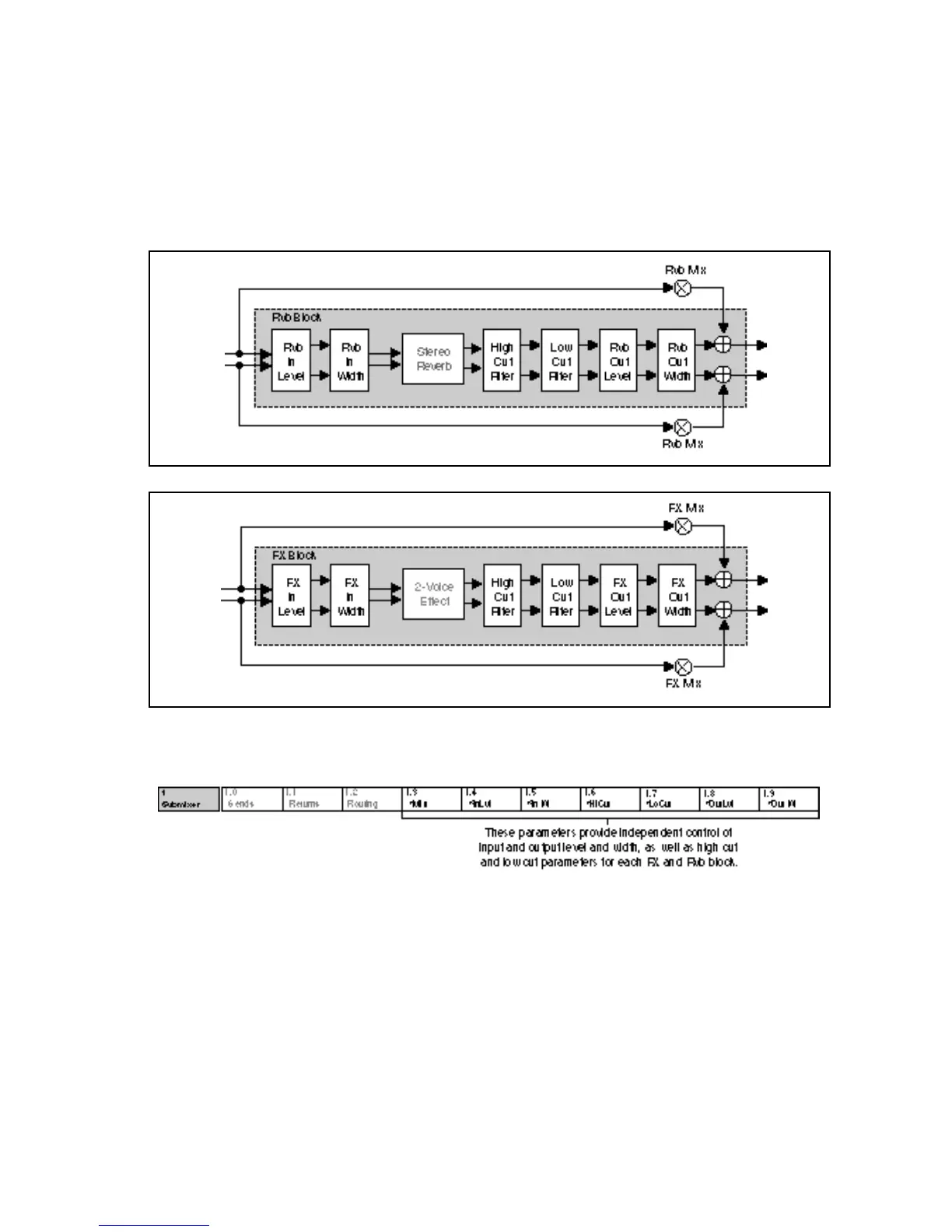

The Rvb and FX blocks shown in the previous configurations represent the

Stereo Reverb and 2-Voice Pitch Shift effects. Each of these blocks has its own

set of controls, shown in the diagrams below.

These effect block controls are also found in the Submixer row of each

parameter matrix.

Press Load/Q to toggle between Rvb and FX parameters.

These parameters are described below, in the order in which they appear in the

Submixer row. (All other effect parameters are identical to those described

earlier for the 4-Voice and 6-Voice algorithms.

RvbMix, FX Mix

These are independent wet/dry mix controls for the Rvb and FX effect blocks.

RvbInLvl, FX InLvl

These are independent input level controls for the Rvb and FX blocks.
