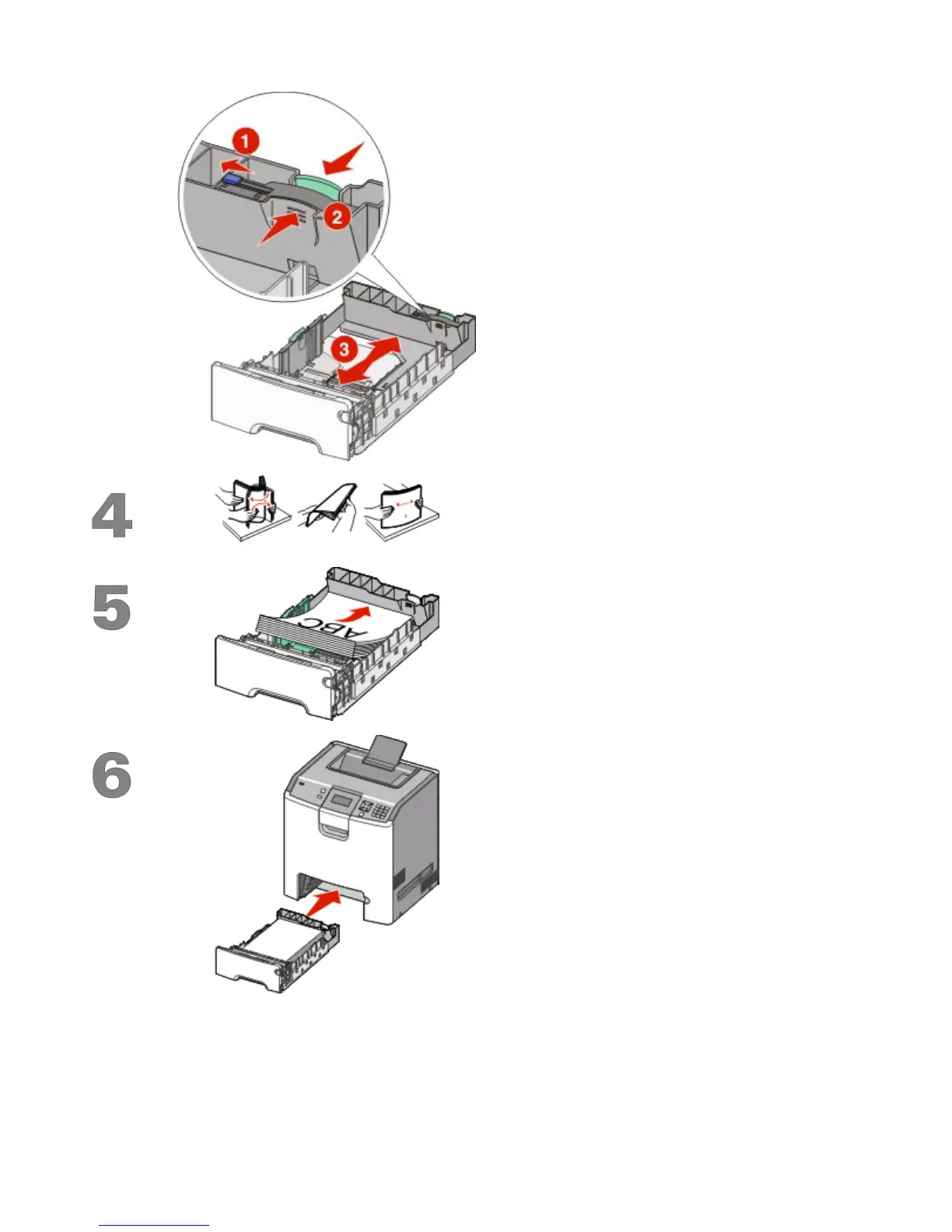

Squeeze the length guide tabs together, and then slide
the guide to the correct position for the size of paper
being loaded.
Note: The length guide has a locking device. To unlock
the tray, slide the button on top of the length guide to
the left, as illustrated. To lock the tray once the desired
length has been selected, slide the button to the right.
Flex a stack of paper back and forth to loosen the sheets,
and then fan them. Do not fold or crease the paper.
Straighten the edges on a level surface.
Load the paper stack with the recommended print side
faceup. Load the stack toward the back of the tray as
shown.
Align the tray, and then reinsert it.
Setting up the printer
7
