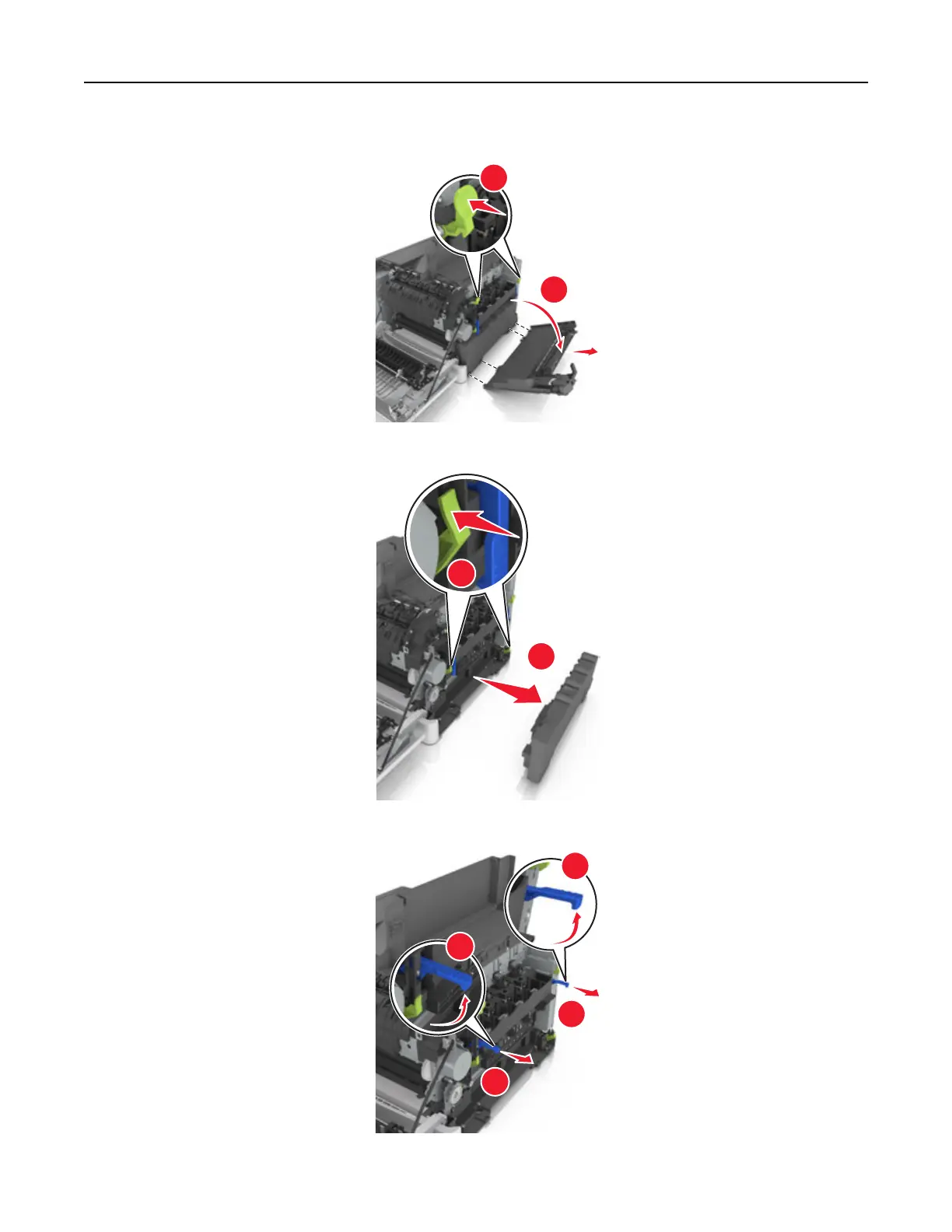

4 Remove the right side cover.
1
2
5 Remove the waste toner bottle.
1
2
6 Lift the blue levers on the imaging kit, and then pull the imaging kit until it stops.
1
1
2
2
Maintaining the printer 126
