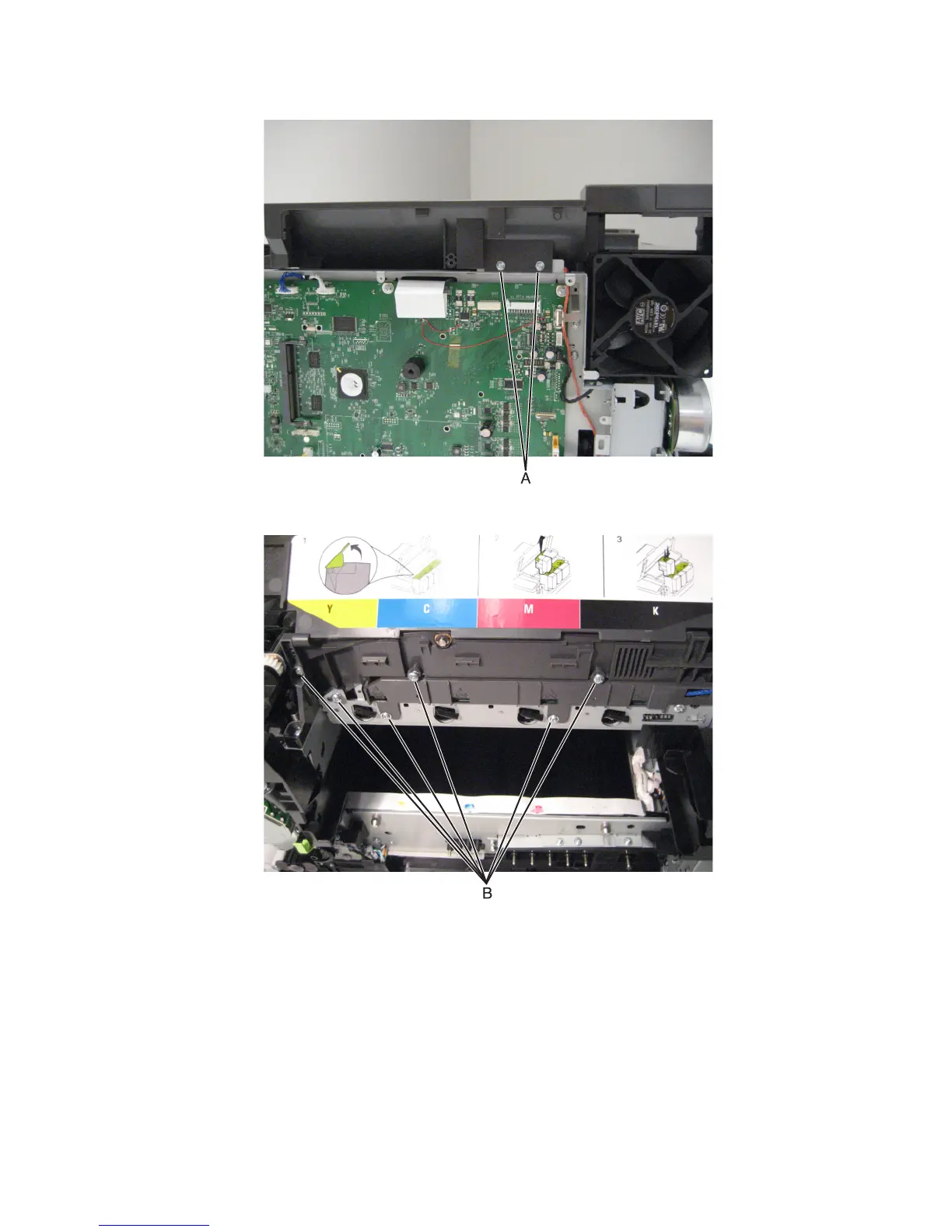

3 Remove the two screws (A) from the rear of the top cover assembly.

4 Remove the six screws (B) from the right side of the top cover assembly.

7527

Repair information

226
