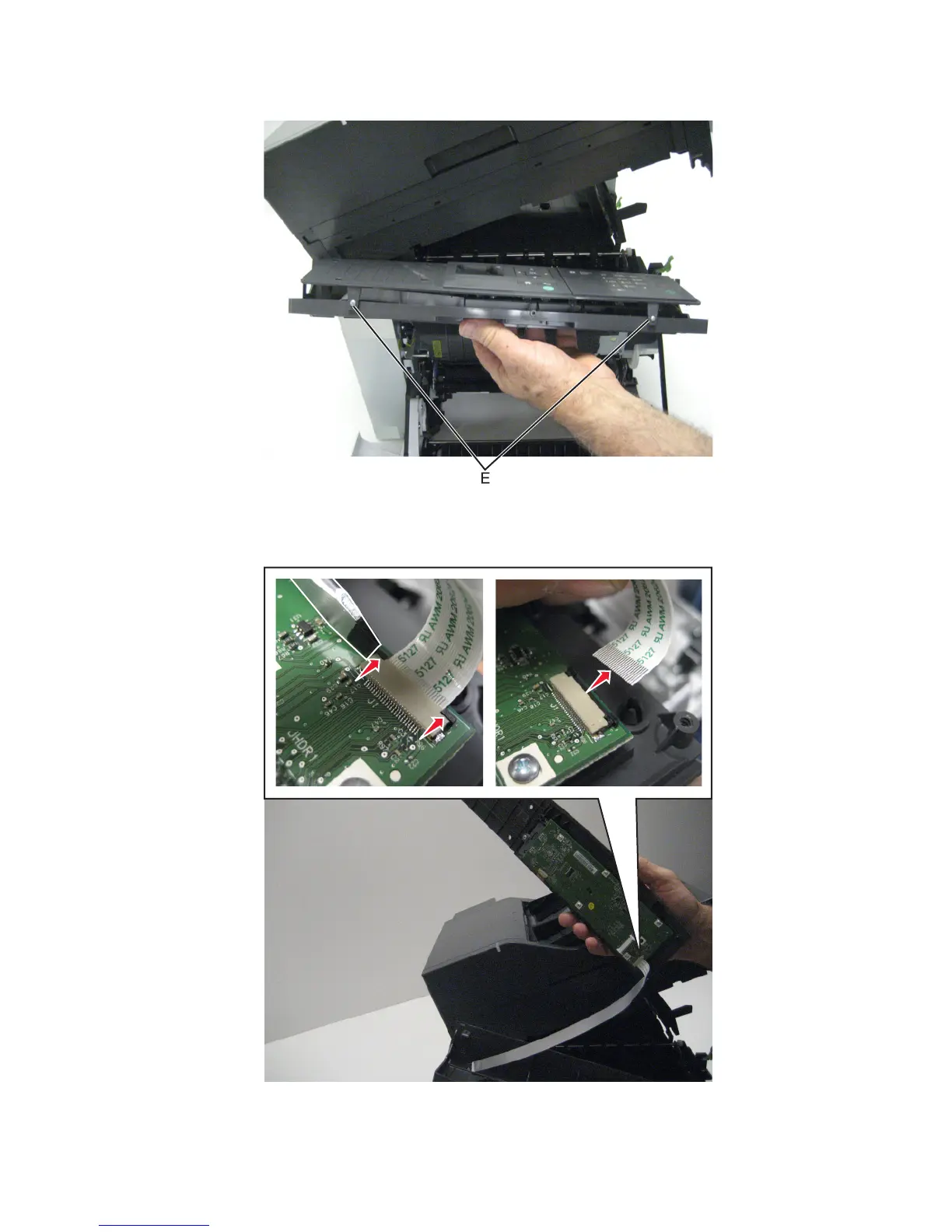

8 Remove the two screws (E) from the operator panel.

9 Lift the operator panel from the user interface support bracket.

10 Disconnect the ribbon cable from the cable connector on the operator panel board by sliding the two prongs forward.

7527

Repair information

286
