Paper jam in door D

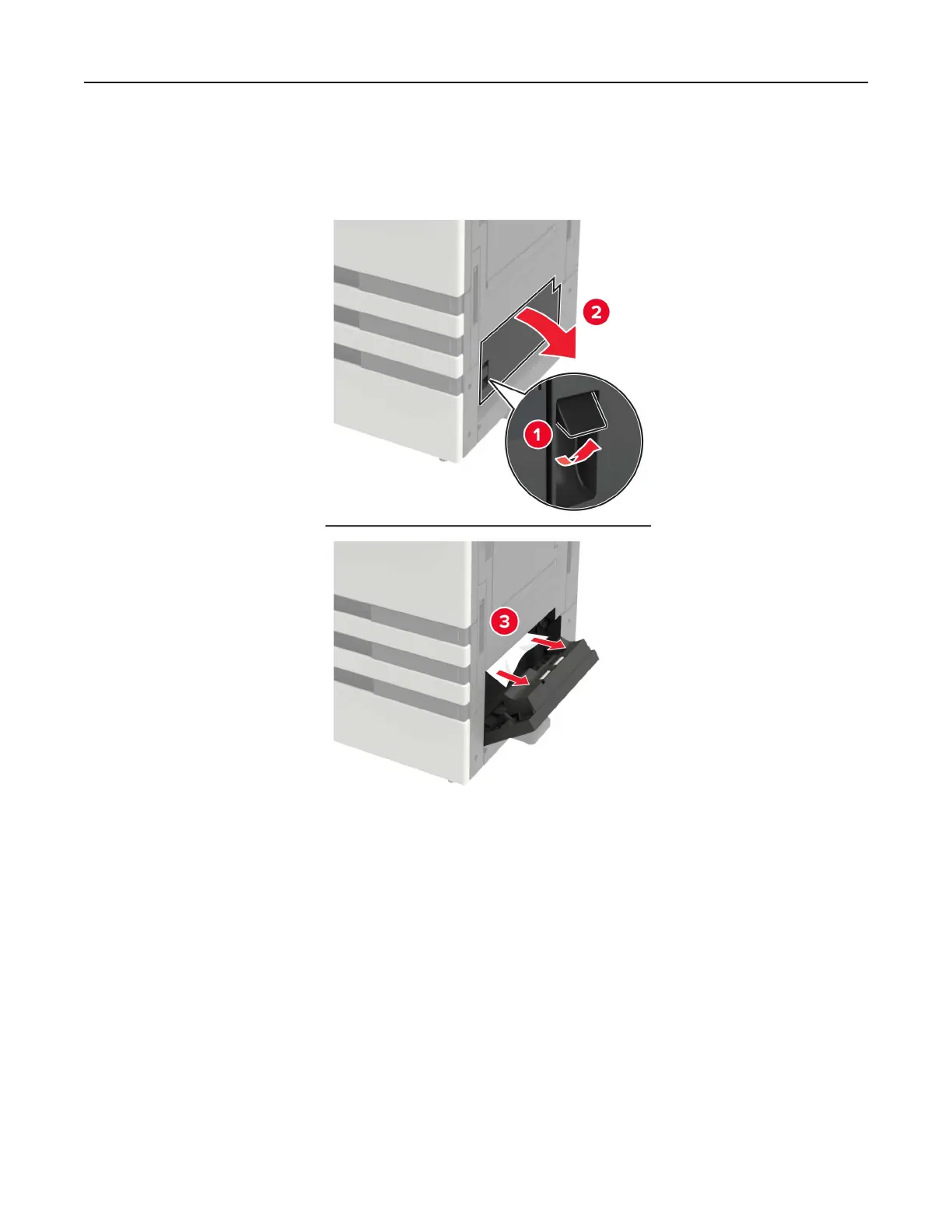

1 Open door D, and then remove the jammed paper.
Notes:
• If a 3000‑sheet tray is installed, then slide the tray to the right to open the door.
• Open door C to make sure that all paper fragments are removed, and then close the door.
2 Open the optional tray, and then remove the jammed paper.
Note: Make sure that all paper fragments are removed.
Clearing jams 209
