Accessing the system board
30
Installing options

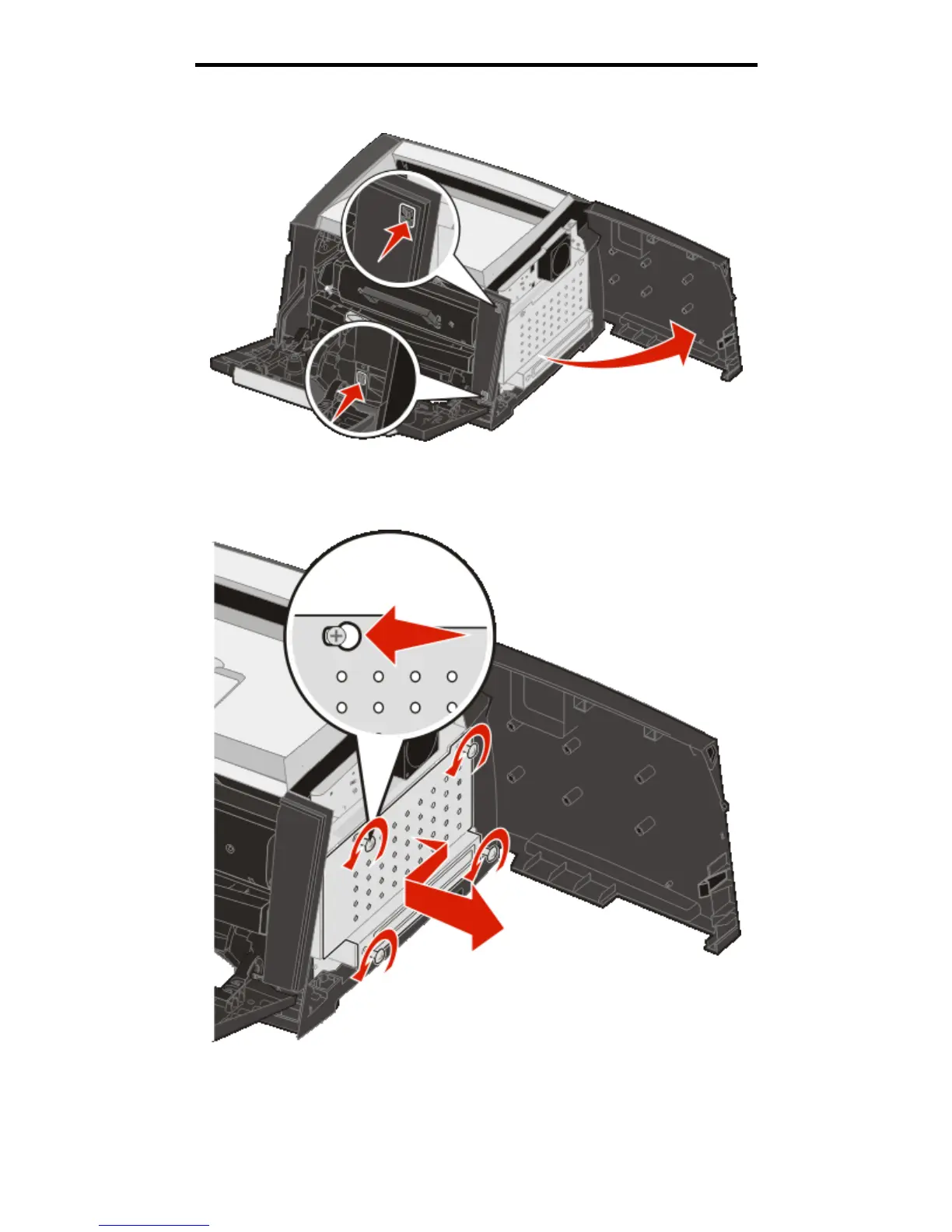

4 Press both buttons on the front right side of the machine to release the side access door.
5 Loosen the four screws on the cover, but do not remove them completely.
6 Slide the cover to the left until the screws fit into the keyholes on the cover.
7 Remove the cover and set it aside.
