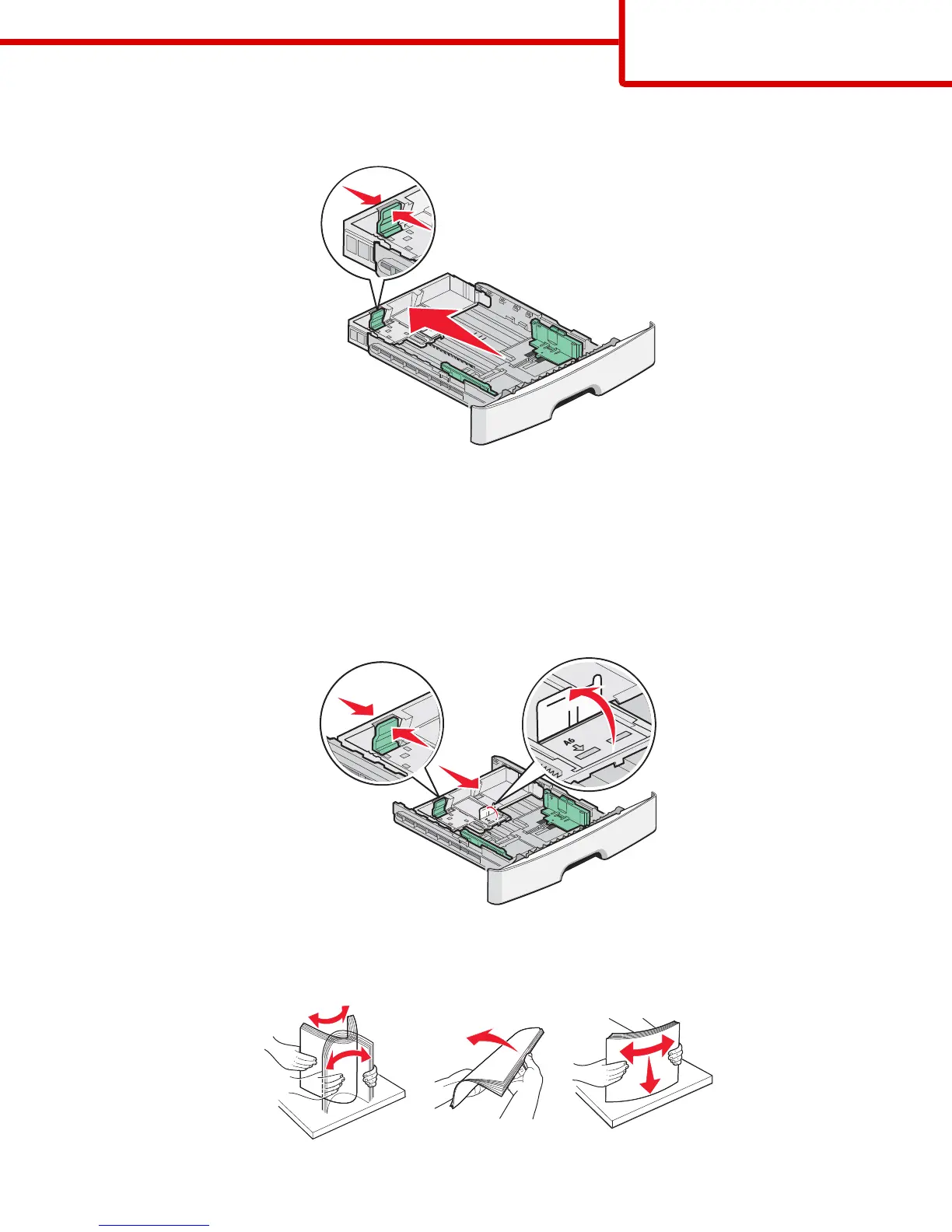

For long paper like A4 or legal, squeeze and slide the length guide backwards to accommodate the length of paper you
are loading.
If you are loading A6-size paper:
a Squeeze and slide the length guide toward the center of the tray to the A5 size position.
b Raise the A6 backstop.
Notes:
• Tray 1 accommodates only 150 sheets of A6-size paper. Notice the maximum fill line on the A6 backstop which indicates
the maximum height for loading A6-size paper. Do not try to overload the tray.
• A6-size paper cannot be loaded in tray 2.
Note: Use the size indicators on the bottom of the tray to help position the guide.
3 Flex a stack of paper back and forth to loosen the sheets, and then fan them. Do not fold or crease the paper. Straighten
the edges on a level surface.
Printing guide
Page 2 of 10
