Lexmark MS610dn Service Manual

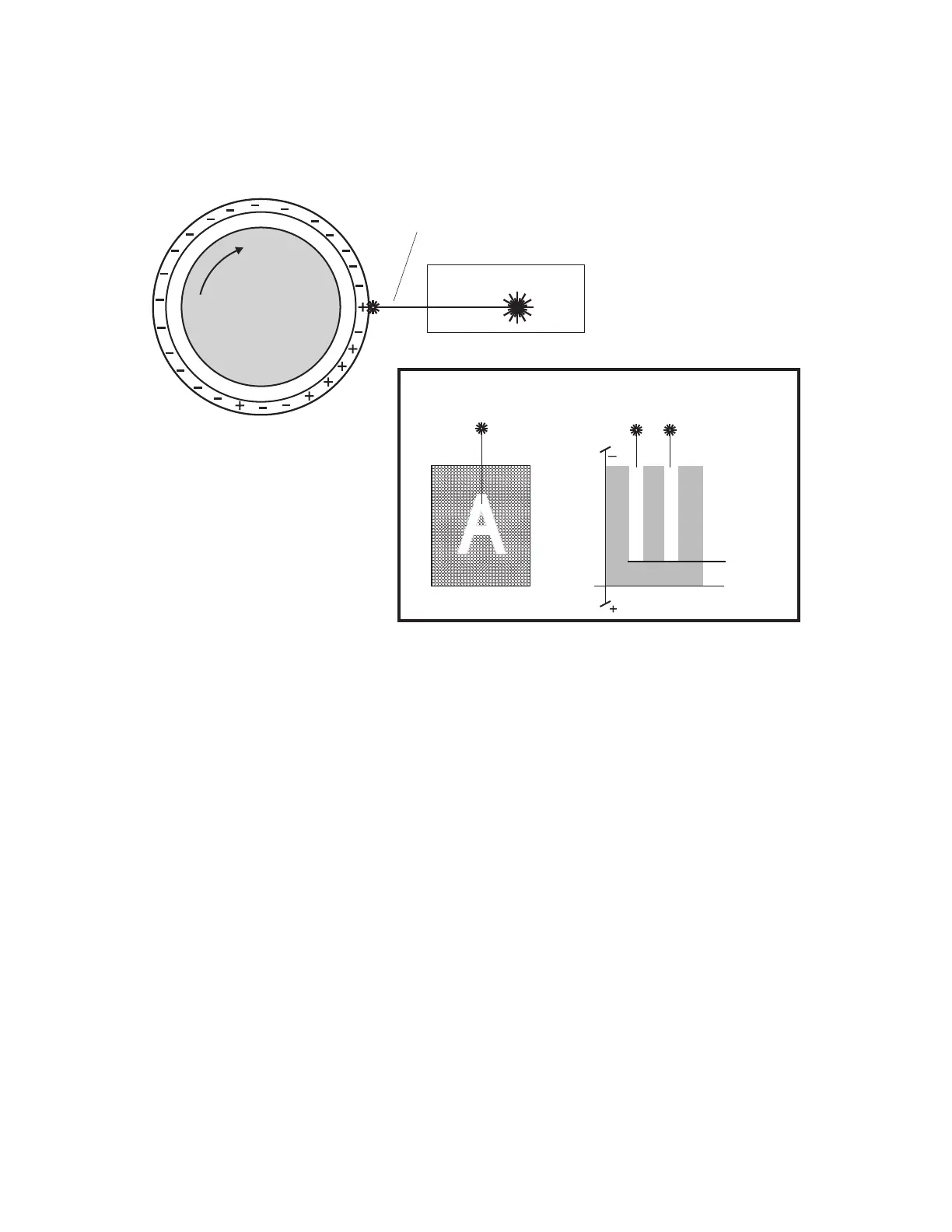

Step 2: Expose
The laser fires a focused beam of light at the surface of the photoconductor and writes an invisible image, called
a latent image. The laser beam only discharges the surface where the beam hits the photoconductor. This
creates a dierence in charge potential between the exposed area and the rest of the photoconductor surface.
Modulated
Laser Beam
0V
DRUM
Drum Surface
Drum Surface
Voltage
Laser Beam
Discharge
Level
Invisible Latent Image
Laser Beam
Printhead
Step 3: Develop
Once the laser exposes the photoconductor, the HVPS sends charge to the developer roll. Because of the
charge dierence between the toner on the developer roller and the electrostatic image created by the laser,
the toner is attracted to areas of the photoconductor surface exposed by the laser.
4514-6xx
Theory of operation
373

Lexmark MS610dn Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	6.5 s
Print speed (black, normal quality, A4/US Letter)	47 ppm
Duplex print speed (black, normal quality, A4/US Letter)	20 ppm
Security algorithms	802.1x RADIUS, EAP-TLS, EAP-TTLS, LEAP, MD5, PEAP
Supported network protocols (IPv4)	TCP/IP
Printing colors	Black
Country of origin	China
Maximum duty cycle	100000 pages per month
Recommended duty cycle	3000 - 16000 pages per month
Number of print cartridges	1
Page description languages	Microsoft XPS, PCL 5e, PCL 6, PDF 1.7, PostScript 3, PPDS
Maximum internal memory	1280 MB
Sound power level (standby)	15 dB
Sound pressure level (printing)	55 dB
Sound pressure level (duplex printing)	54 dB
Total input capacity	650 sheets
Total output capacity	250 sheets
Maximum input capacity	2300 sheets
Total number of input trays	2
Maximum number of input trays	5
Envelopes sizes	7 3/4, 9, 10, DL
Maximum print size	216 x 356 mm
Paper tray media types	Card stock, Envelopes, Labels, Plain paper, Transparencies
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Oficio (media size), Statement (140 x 216mm), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Standard interfaces	USB 2.0
Optional connectivity	Wireless LAN
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion
Other operating systems supported	Novell NetWare 5.x, Novell NetWare 6.x, Novell Open Enterprise Server
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64
Windows operating systems supported	Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Power consumption (off)	0.5 W
Power consumption (printing)	640 W
Power consumption (PowerSave)	5 W
Energy Star Typical Electricity Consumption (TEC)	2.6 kWh/week
Package weight	17600 g
Depth (imperial)	15 \
Width (imperial)	15.7 \
Height (imperial)	12.1 \
Networking features	Gigabit Ethernet
Networking standards	IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Authentication method	LPR/LPD, FTP, TFTP, IPP 1.0/1.1/2.0
Compatible operating systems	SUSE Linux Enterprise Server 10, 11\\r SUSE Linux Enterprise Desktop 10, 11\\r Red Flag Linux Desktop 6.0\\r Linpus Linux Desktop 9.6\\r Debian GNU/Linux 5.0, 6.0\\r Red Hat Enterprise Linux WS 4.0, 5.0, 6.0\\r Ubuntu 11.04, 11.10, 12.04\\r openSUSE 11.3, 11.4, 12.1\\r PCLinuxOS 2011.9\\r Mint 9, 10, 11, 12\\r Fedora 14, 15\\r Sun Solaris SPARC 9, 10\\r HP-UX 11.11, 11.23, 11.31\\r Sun Solaris x86 10, 11\\r IBM AIX 5.3, 6.1, 7.1
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Sustainability certificates	ENERGY STAR
Display	LCD
Certification	Blue Angel (RAL-UZ-122), CAN/CSA-C22.2 60950-1, CSA E60825-1, ICES-003 Class B, BSMI Class B, CNS 13438, VCCI Class B, US FDA, FCC Class B, UL 60950-1, IEC 320-1, EN/IEC 60320-1, CE Class B, CB IEC 60950-1, EN 62311, EN 60950-1, EN/IEC 61000-3, EN 55022 Class B, EN 55024, EN/IEC 60825-1, GS (TÜV), SEMKO, UL AR, CS, TÜV Rh, SMA C-tick mark Class B, CCC Class B, CISPIR 22 Class B, EK Mark, N Mark, ECMA-370, TED
Product color	Black, White
Operating altitude	0 - 2896 m
Operating temperature (T-T)	16 - 32 °C
Operating relative humidity (H-H)	8 - 80 %

Weight and Dimensions

Depth	381 mm
Width	398.7 mm
Height	307.3 mm
Dimensions (WxDxH)	399 x 382 x 306 mm
