Lexmark MS610dn Service Manual

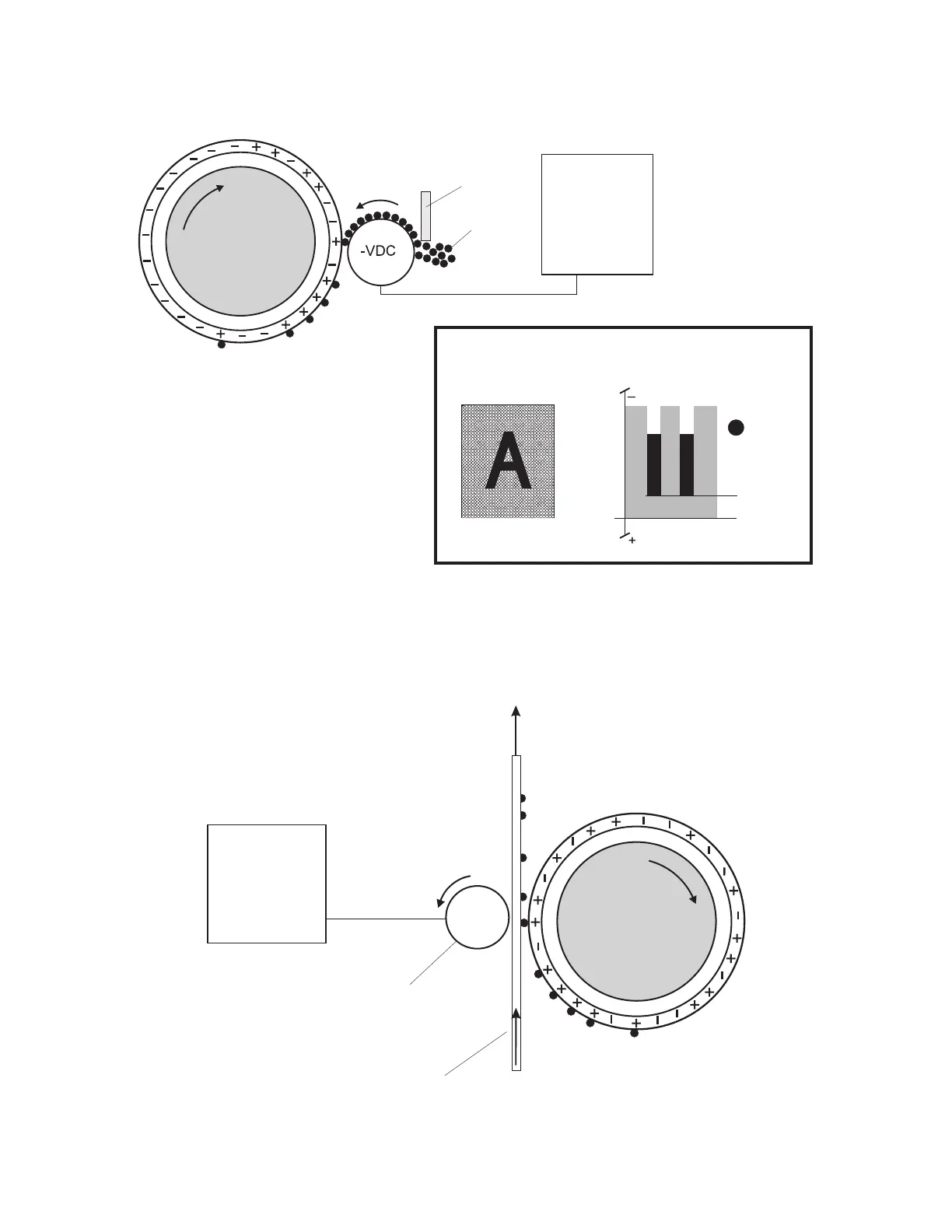

This process would be similar to using glue to write on a can and then rolling it over glitter. The glitter sticks to
the glue but not to the rest of the can.
Developer
Roll
Metering
Blade
Toner
HVPS
DRUM
-VDC
Drum Surface
Voltage
Drum Surface
Toner at
-VDC Developer
Bias value
Discharge
Level
0V
Visible Developed Image
Step 4: Transfer
As the paper travels between the transfer roll and the photoconductor, the transfer roll applies a positive charge
to the back of the media. This positive charge attracts the negatively charged toner image from the
photoconductor to the top surface of the media.
Sheet of paper
HVPS
-VDC
-VDC
DRUM
Transfer roll
4514-6xx
Theory of operation
374
