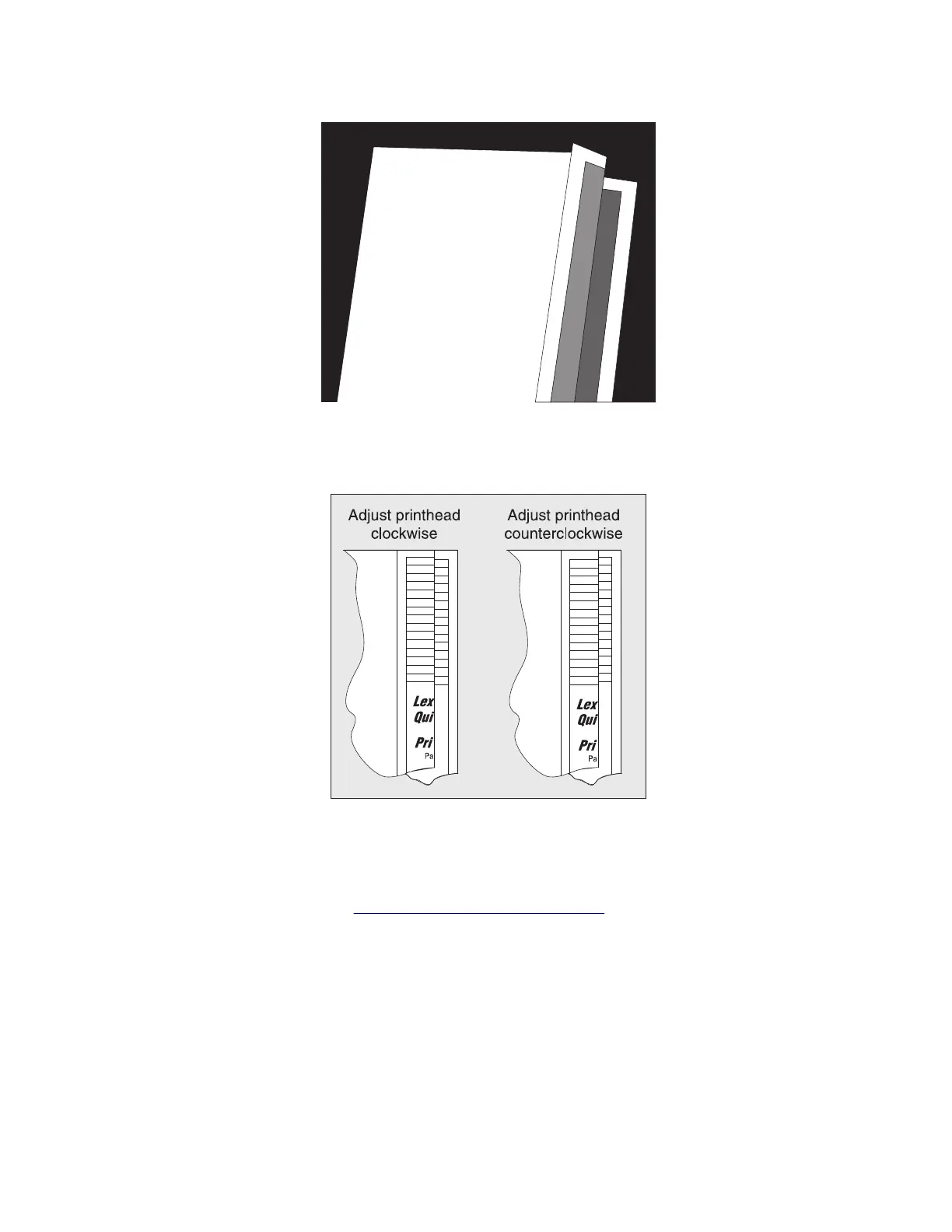

3 Fold a second vertical fold near the center so that the left side top edge aligns with the right side top edge.
4 If the grid lines of the right ļ¬ap align below the corresponding lines on the left ļ¬ap, then adjust the printhead
clockwise relative to the printer, and recheck. If the grid lines of the left ļ¬ap align below the corresponding
lines of the right side, then adjust the printhead counterclockwise.
5 Print another Quick test page, and check if adjustments are still needed.
6 After obtaining a properly adjusted image on the paper, tighten all the screws.
Note: If necessary, print a Quick test page again and perform the Registration adjust procedure to correct
the skew and misalignments. See
āRegistration adjustā on page 145.
4600-830, -835, -895
Parts removal
176
