Optional 250/550-sheet tray removals

Separator roller assembly removal

1 Remove the tray insert.

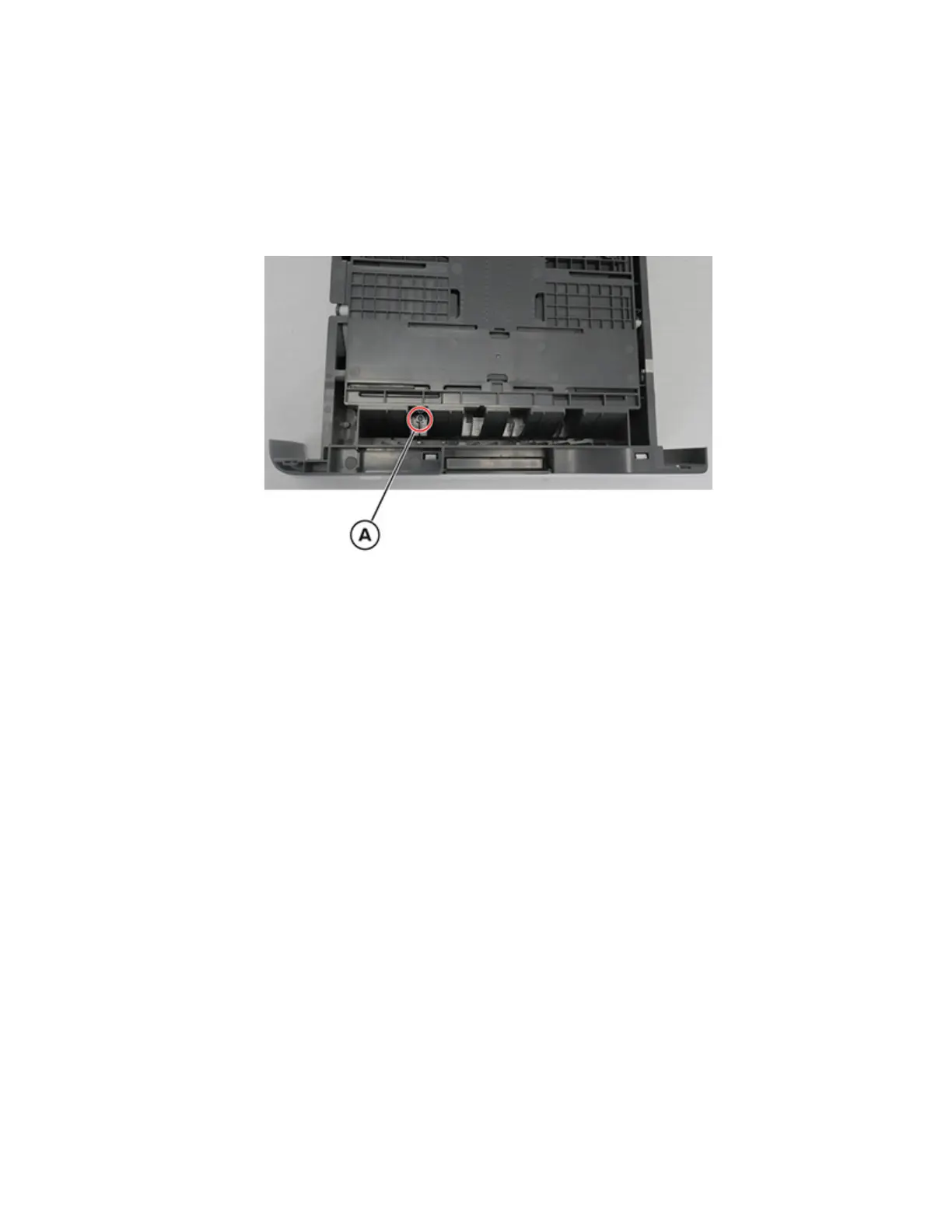

2 Under the tray, remove the screw (A).

4600-830, -835, -895

Parts removal

242
