5 Remove the redrive assembly. See “Redrive assembly removal” on page 372.

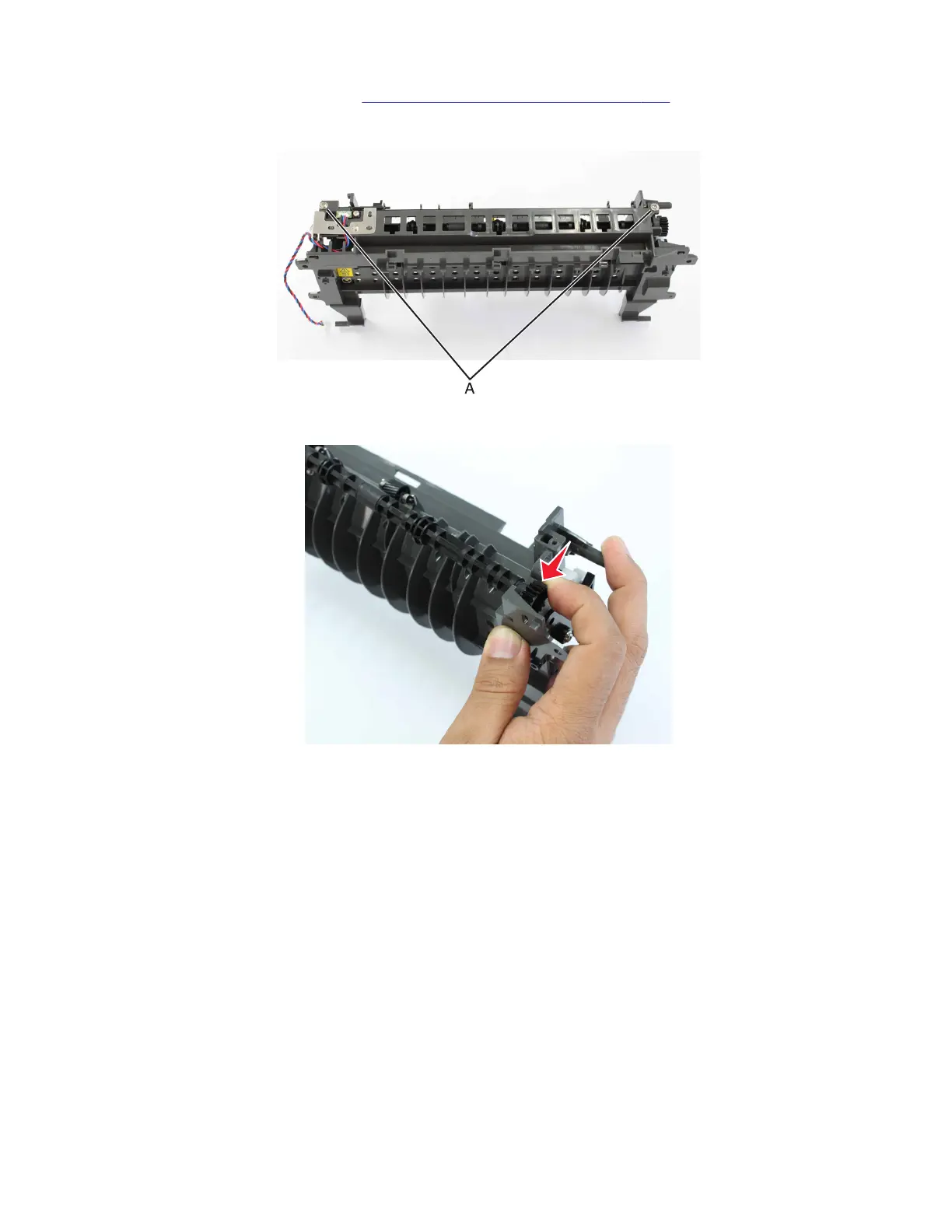

6 Remove the two screws (A), and then remove the top of the redrive assembly.
7 Remove the shaft.
7015
Parts removal
374
