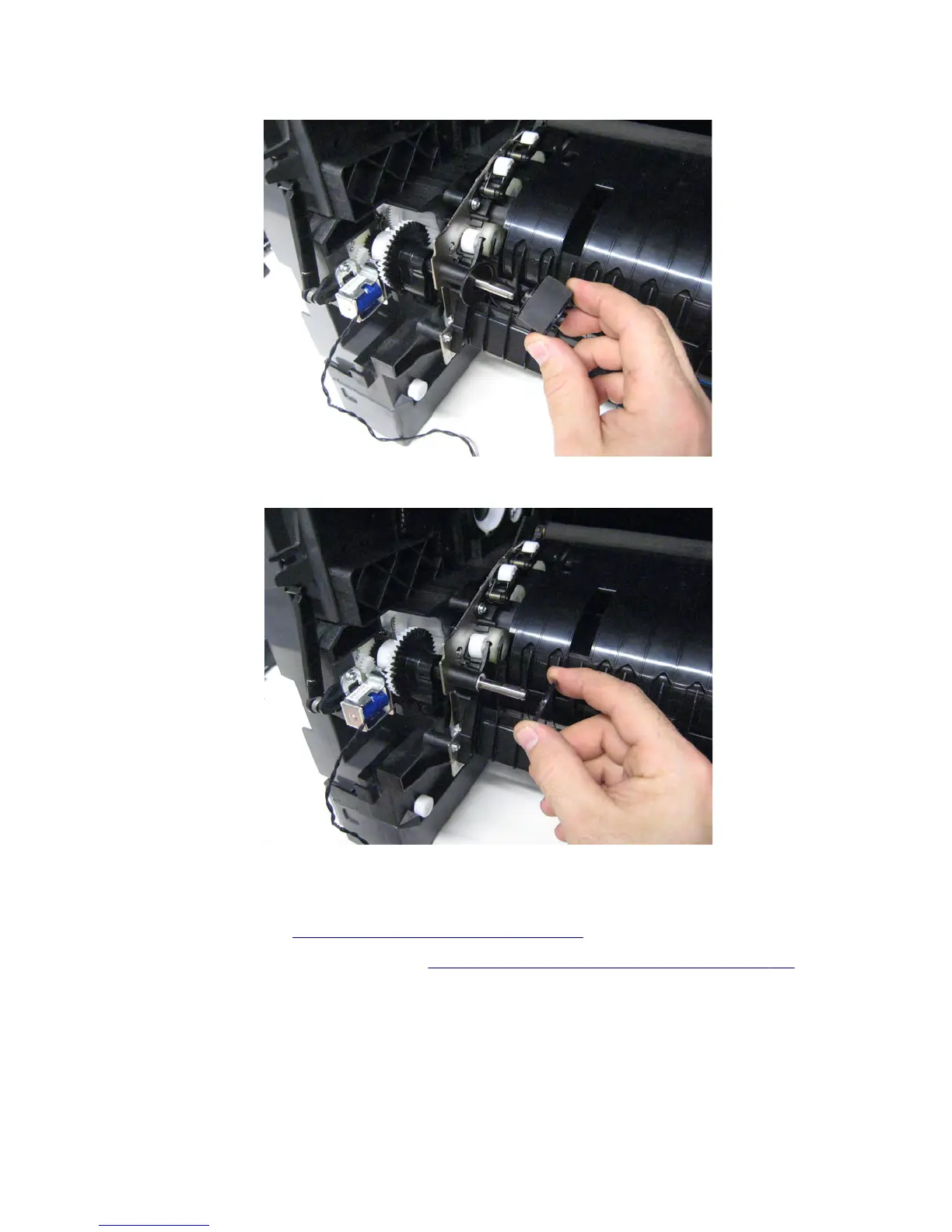

10 Remove the MPF pick roller.
11 Remove the second flange.
MPF solenoid removal
1 Remove the left cover. See “Left cover removal (MX71x)” on page 416.
2 Remove the controller board access shield. See “Controller board access shield removal” on page 424.
7463
Repair information
470
