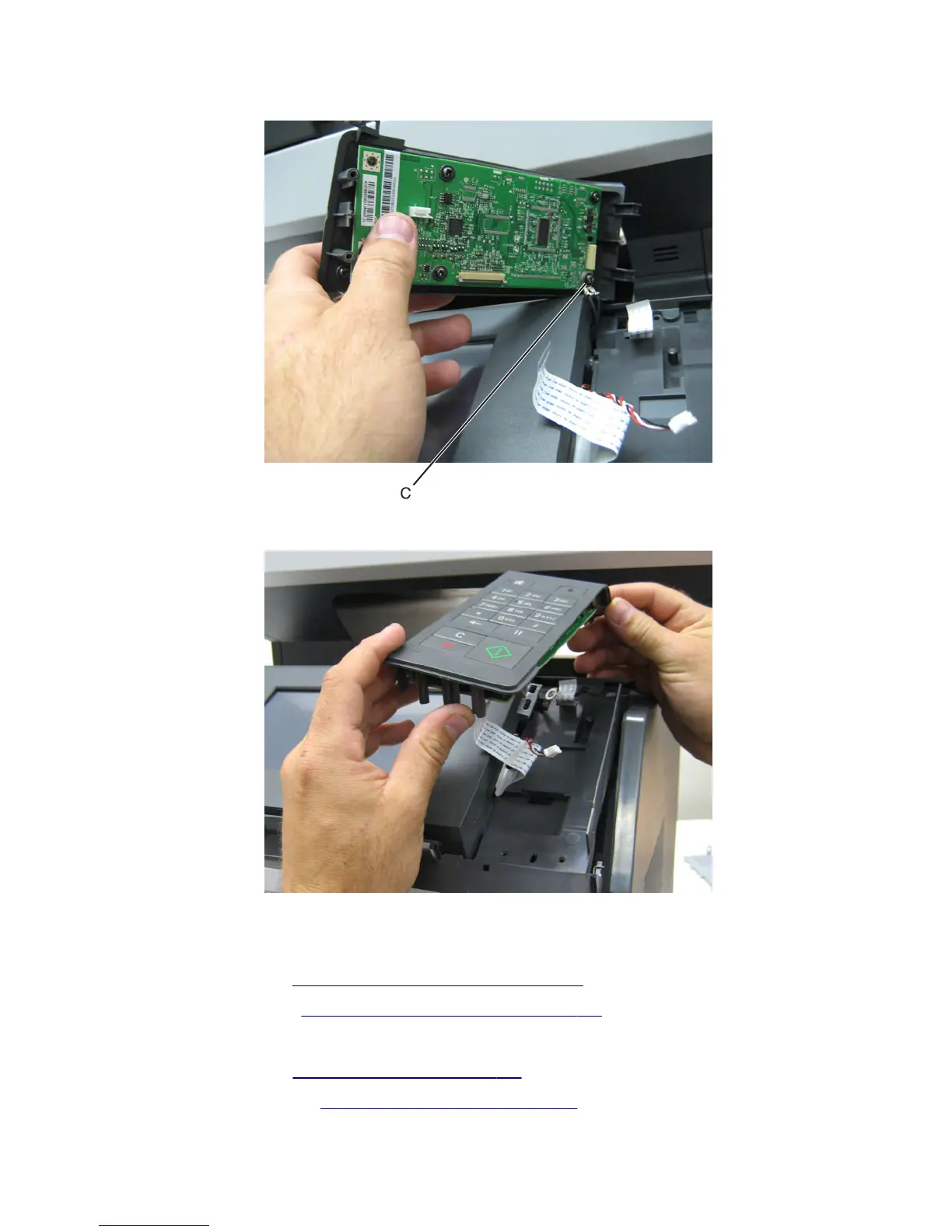

5 Remove the screw (C) securing the ground wires to the control panel right bezel.
6 Remove the control panel right bezel.
Left control panel hinge removal
1 Remove the left cover. See “Left cover removal (MX71x)” on page 416.
2 Remove the right cover. See “Right cover removal (MX71x)” on page 438.
3 Open the rear door.
4 Remove the top cover. See “Top cover removal” on page 561.
5 Remove the upper redrive. See “Upper redrive removal” on page 571.
7463
Repair information
516
