6 Remove the output bin sensor cover. See “Output bin sensor cover removal” on page 564.
7 Remove the sensor (standard bin full) with actuator. See “Sensor (standard bin full) removal” on page 564.
8 Remove the standard bin cover. See “Standard bin cover removal (MX71x)” on page 565.
9 Remove the control panel. See “Control panel removal (MX71x)” on page 488.

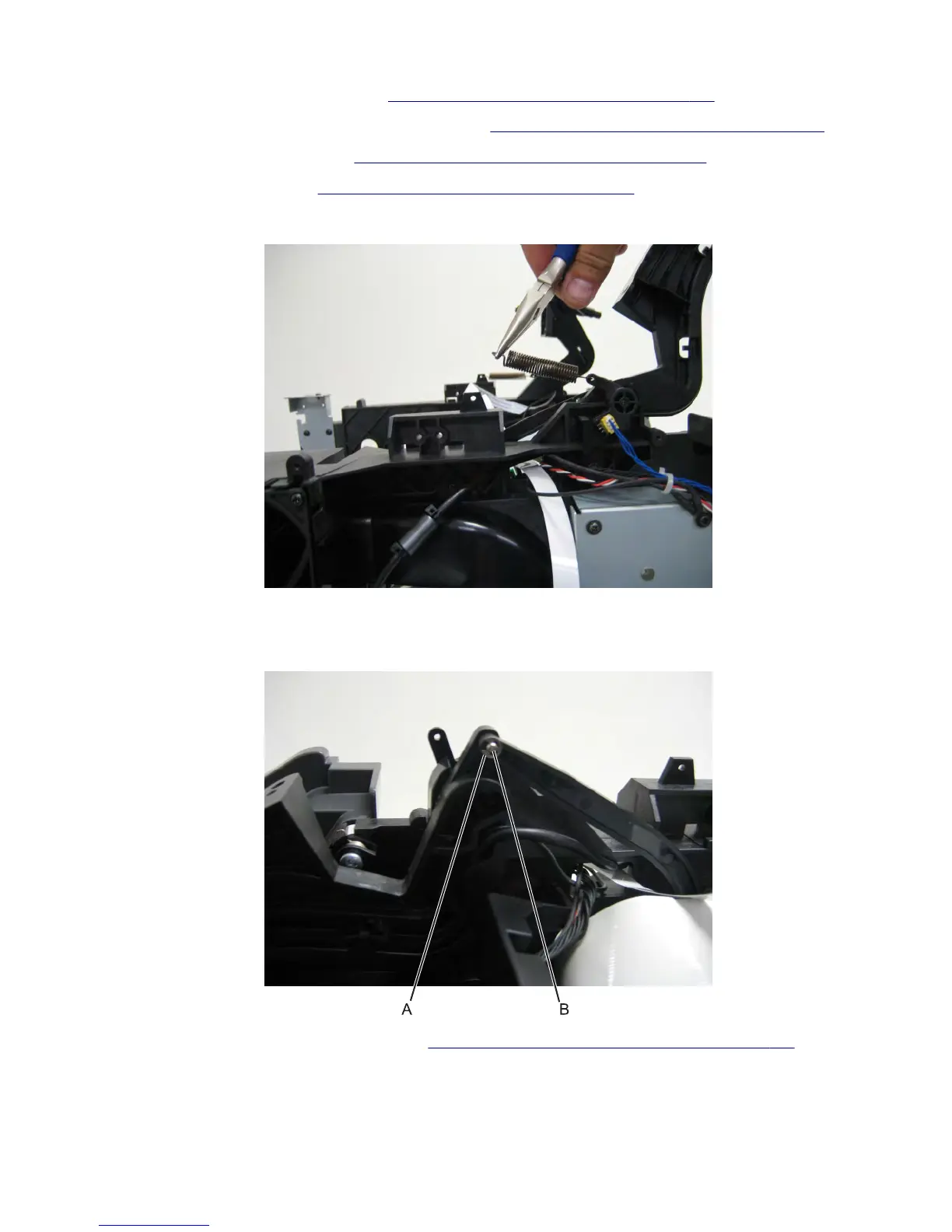

10 Disconnect the left recoil spring.
11 Remove the e-clip (A) securing the pin to the left control panel hinge.
12 Remove the pin (B).
13 Remove the controller board access shield. See “Controller board access shield removal” on page 424.
